AIR CLEANER

RM-Z450 2014 (L4) USA (E03) RMZ450 RM Z450

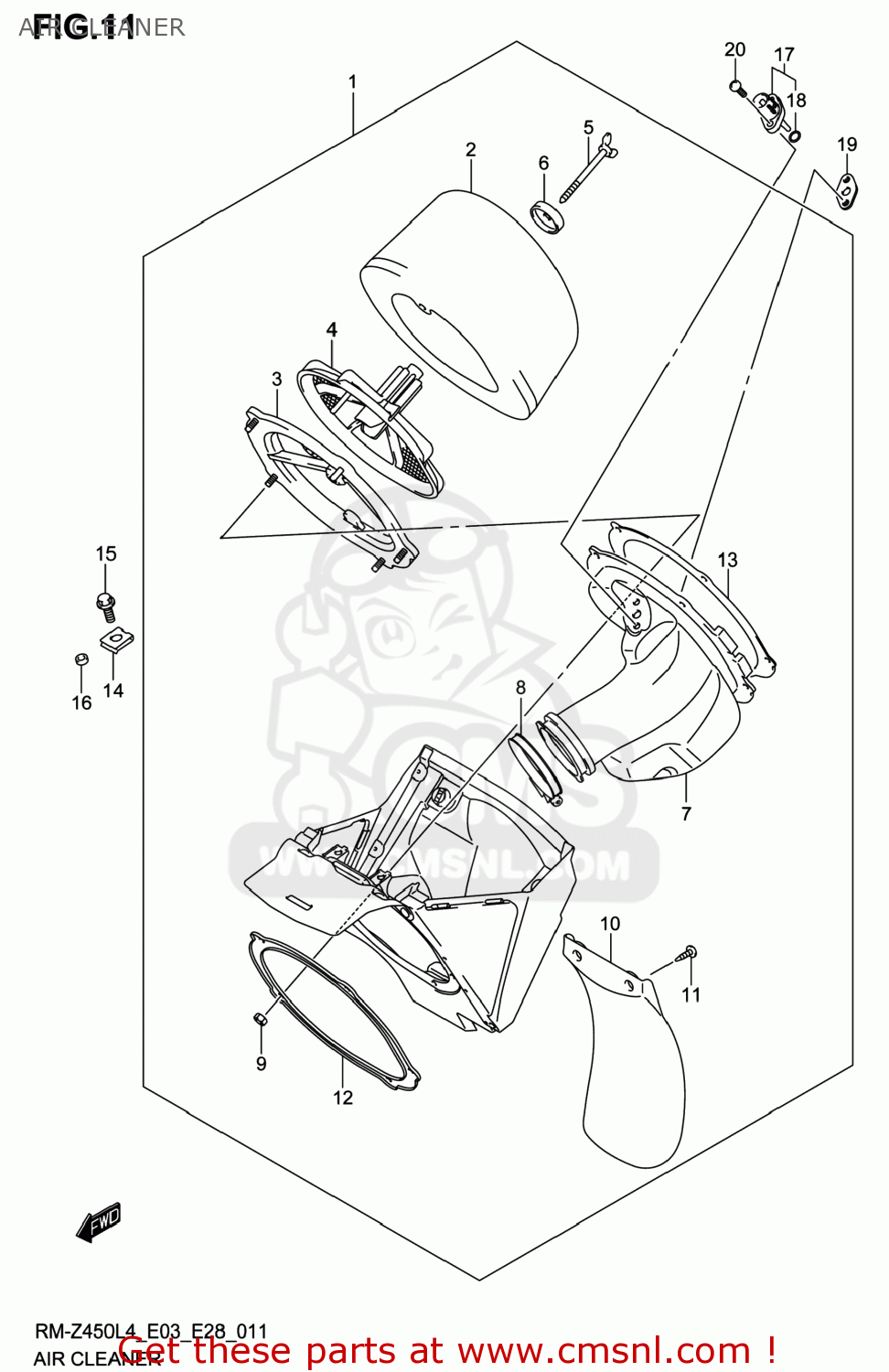

Air cleaner diagram RM-Z450 2014 (L4) USA (E03) RMZ450 RM Z450

AIR CLEANER RM-Z450 2014 (L4) USA (E03) RMZ450 RM Z450
AIR CLEANER RM-Z450 2014 (L4) USA (E03) RMZ450 RM Z450
AIR CLEANER RM-Z450 2014 (L4) USA (E03) RMZ450 RM Z450
prices are in EUR
ref
part #
description
quantity
1
1370028H30
ref: 1
CLEANER ASSY,AIR
€ 352.50
2
1378010H00
ref: 2
FILTER ASSY
€ 39.50
3
1379037F20
ref: 3
BASE,FILTER
1379037F20
€ 15.50
4
1379135G00
ref: 4
HOLDER,FILTER
1379135G00
€ 13.00
5
1383137F20
ref: 5
BOLT,WING
1383137F20
€ 5.50
6
1379213A01
ref: 6
WASHER,AIR CLEANER
1379213A01
€ 3.00
7
1388128H10
ref: 7
TUBE,OUTLET
€ 64.00
8
1382628H10
ref: 8
CLAMP,THROTTLE BODY SIDE
€ 5.50
9
083192105B
ref: 9
NUT
083192105B
€ 2.00
10
1373836E10
ref: 10
MUDGUARD
1373836E10
€ 13.50
11
1383135F00
ref: 11
SCREW
1383135F00
€ 2.00
12
1379537F20
ref: 12
PLATE
1379537F20
€ 12.00
13
1379637F20
ref: 13
GASKET (NAS)
1379637F20
€ 9.50
14
0914806017
ref: 14
NUT
€ 2.50
15
015470612A
ref: 15
BOLT
015470612A
€ 2.00
16
0918006129
ref: 16
SPACER(6.2X10X2.2)
0918006129
€ 1.50
17
1365014G10
ref: 17
SENSOR,AIR TEMP
1365014G10
€ 34.50
18
1365514G10
ref: 18
O RING
1365514G10
€ 6.00
19
1365228H00
ref: 19
BRACKET,AIR TEMP SENSOR
1365228H00
€ 6.00
20
021120516B
ref: 20
SCREW
021120516B
€ 2.00
