CYLINDER

RM-Z450 2014 (L4) USA (E03) RMZ450 RM Z450

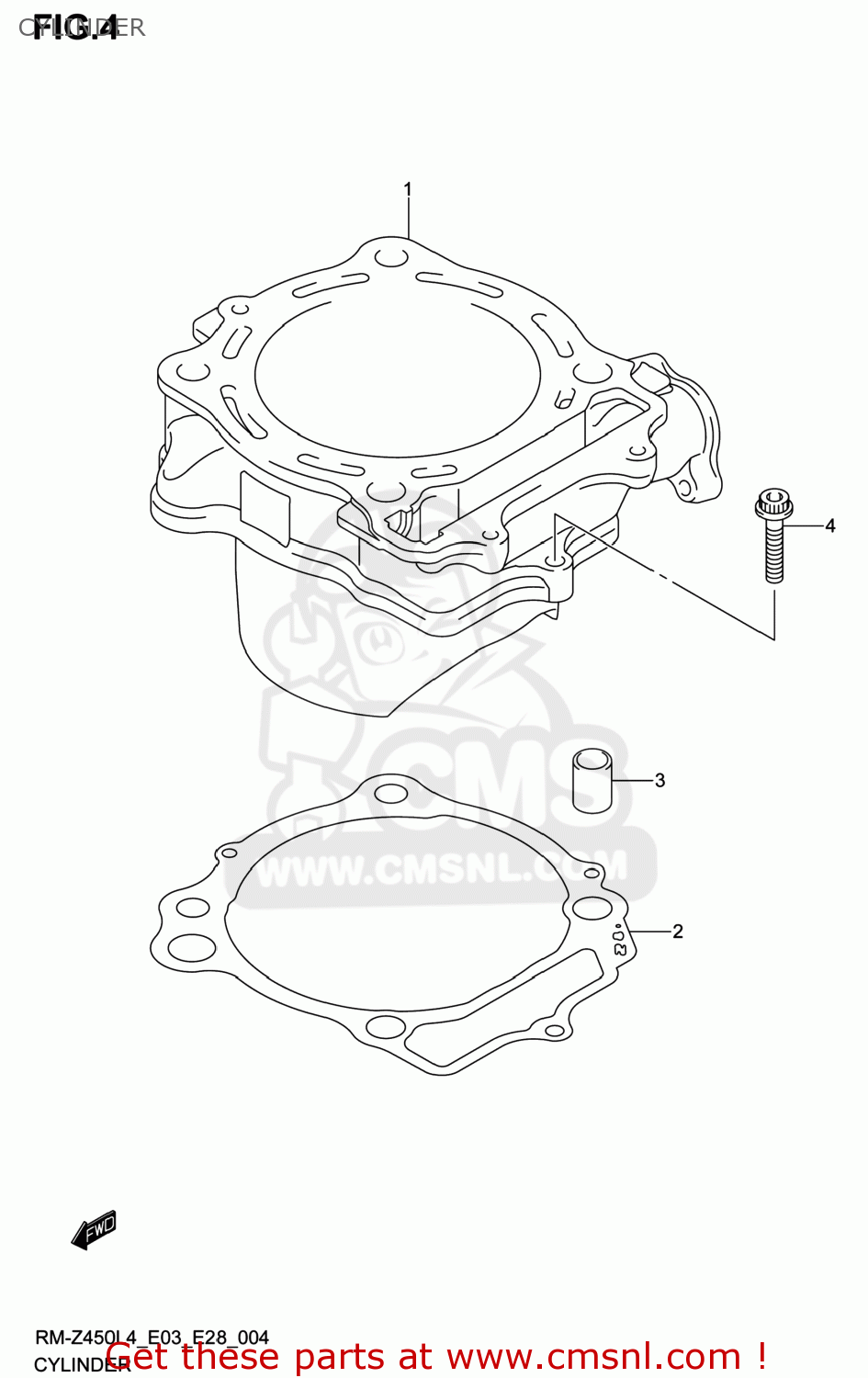

Cylinder diagram RM-Z450 2014 (L4) USA (E03) RMZ450 RM Z450

CYLINDER RM-Z450 2014 (L4) USA (E03) RMZ450 RM Z450

CYLINDER RM-Z450 2014 (L4) USA (E03) RMZ450 RM Z450

prices are in EUR

ref

part #

description

quantity

1

1121128H100F0
ref: 1

CYLINDER

€ 439.00

2

1124128H10
ref: 2

GASKET,CYLINDER (NAS)

€ 16.00

3

0421113189
ref: 3

PIN

€ 2.50

4

071200630A
ref: 4

BOLT

€ 3.00
