FRAME COVER

RM-Z450 2014 (L4) USA (E03) RMZ450 RM Z450

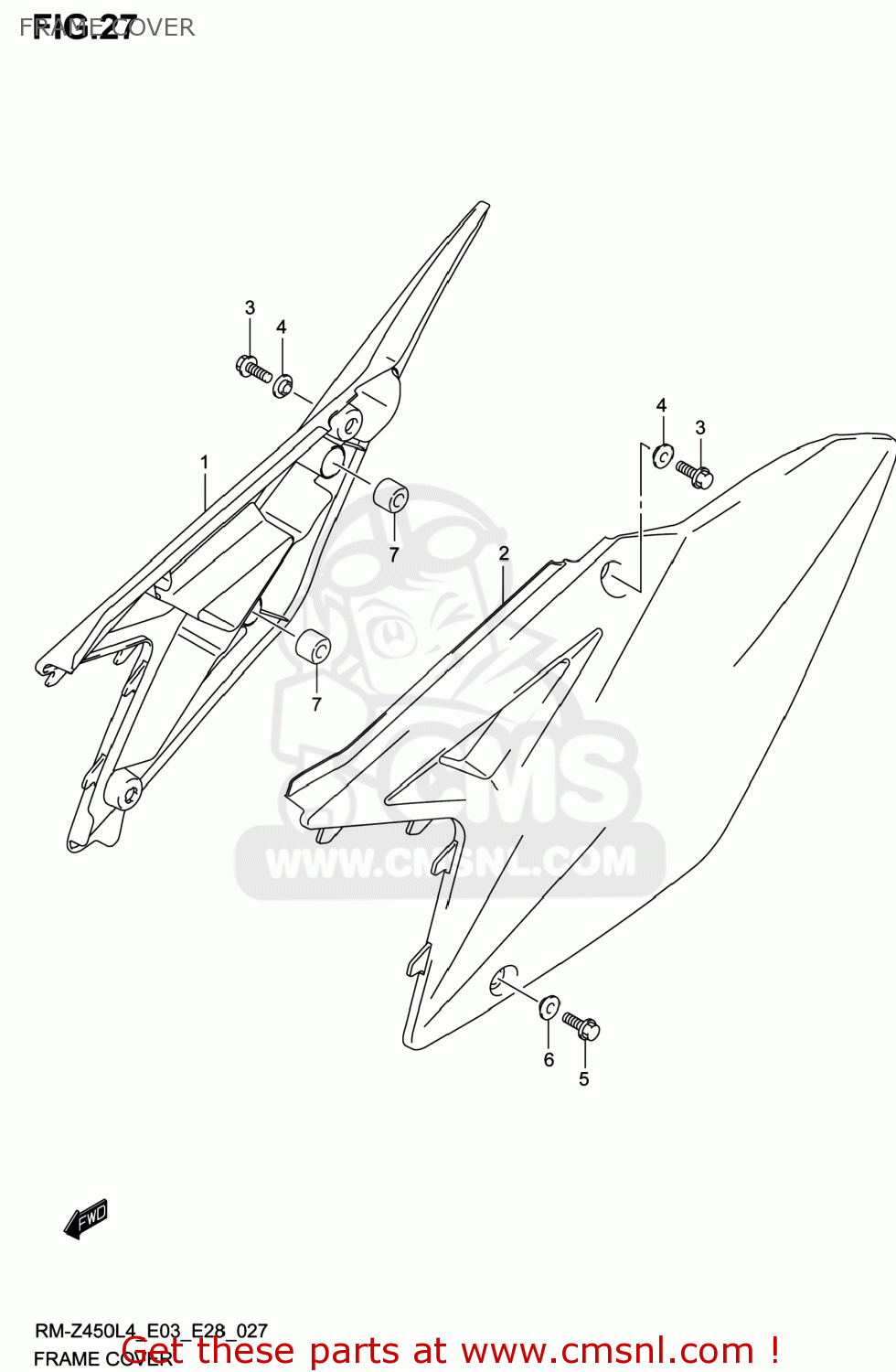

Frame cover diagram RM-Z450 2014 (L4) USA (E03) RMZ450 RM Z450

FRAME COVER RM-Z450 2014 (L4) USA (E03) RMZ450 RM Z450

FRAME COVER RM-Z450 2014 (L4) USA (E03) RMZ450 RM Z450

prices are in EUR

ref

part #

description

quantity

1

4711128H02YU1
ref: 1

COVER,FRAME R(YELLOW)

€ 493.00

2

4721128H00YU1
ref: 2

COVER,FRAME,L(YELLOW)

€ 490.50

3

015470620A
ref: 3

BOLT

€ 2.50

4

4719128H00
ref: 4

WASHER,FRAME COVER & SEAT

€ 6.00

5

015470616A
ref: 5

BOLT

€ 2.00

6

4719128H00
ref: 6

WASHER,FRAME COVER & SEAT

€ 6.00

7

4716108G00
ref: 7

CUSHION

€ 5.00
