TRANSMISSION

RM-Z450 2014 (L4) USA (E03) RMZ450 RM Z450

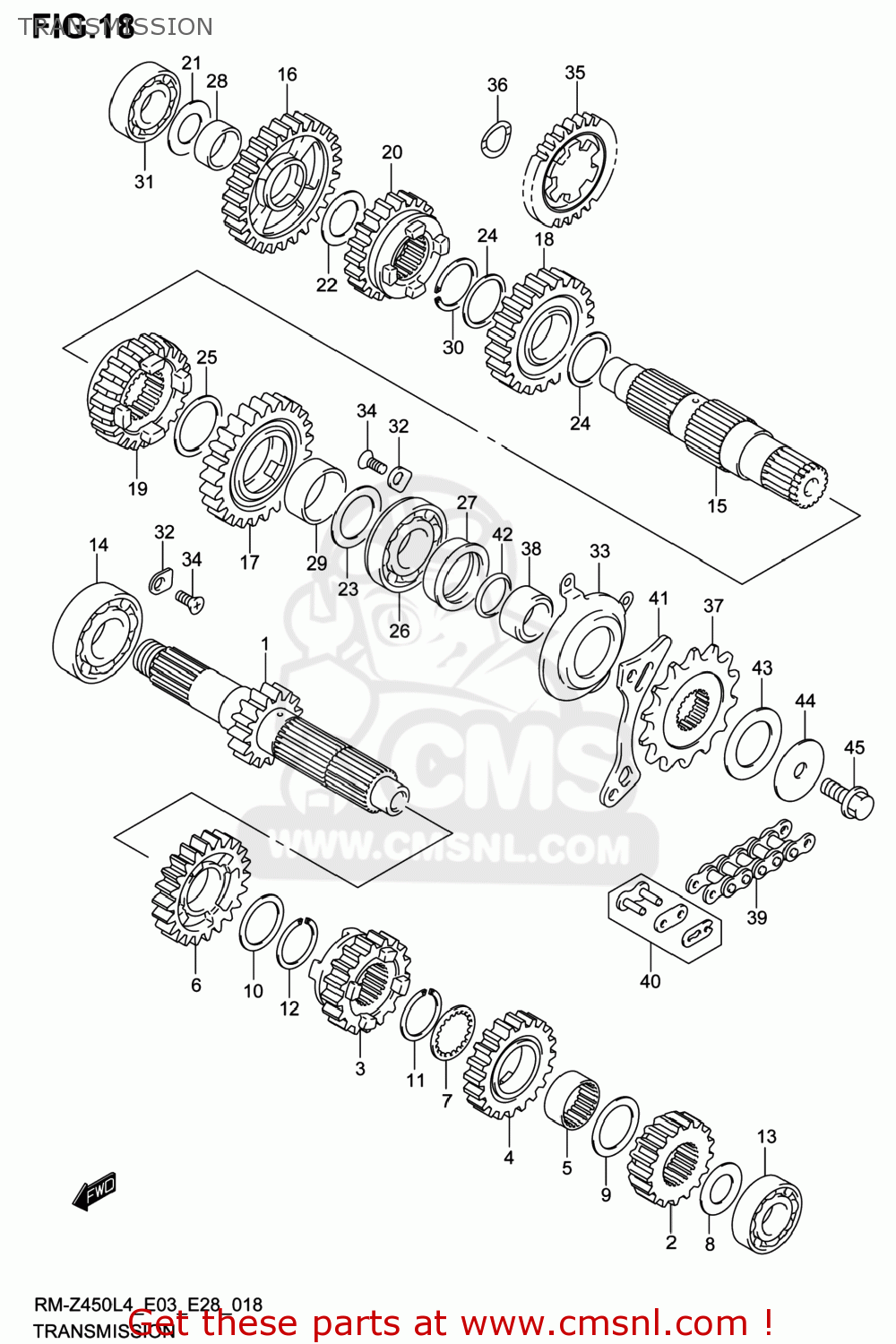

Transmission diagram RM-Z450 2014 (L4) USA (E03) RMZ450 RM Z450

TRANSMISSION RM-Z450 2014 (L4) USA (E03) RMZ450 RM Z450
TRANSMISSION RM-Z450 2014 (L4) USA (E03) RMZ450 RM Z450
TRANSMISSION RM-Z450 2014 (L4) USA (E03) RMZ450 RM Z450
prices are in EUR
ref
part #
description
quantity
1
2412028H10
ref: 1
SHAFT,COUNTER
€ 213.50
2
2422128H10
ref: 2
GEAR,2ND DRIVE
2422128H10
€ 88.50
3
2423128H10
ref: 3
GEAR,3RD DRIVE
2423128H10
€ 88.50
4
2424128H10
ref: 4
GEAR,4TH DRIVE
2424128H10
€ 94.00
5
2424228H00
ref: 5
BUSH,4TH DRIVE GEAR
2424228H00
€ 14.00
6
2425128H00
ref: 6
GEAR,5TH DRIVE
2425128H00
€ 82.50
7
0916725026
ref: 7
WASHER,LOCK
0916725026
€ 3.00
8
0918117223
ref: 8
SHIM(17X30X1)
0918117223
€ 3.00
9
0918125059
ref: 9
SHIM(25X34X1)
€ 3.50
10
0918125139
ref: 10
SHIM(25X32X1)
0918125139
€ 3.00
11
0938025010
ref: 11
CIRCLIP
0938025010
€ 3.00
12
0938025010
ref: 12
CIRCLIP
0938025010
€ 3.00
13
0812362030
ref: 13
BEARING
0812362030
€ 24.50
14
0814362057
ref: 14
BEARING
0814362057
€ 24.50
15
2413128H10
ref: 15
SHAFT,DRIVE
€ 170.50
16
2431128H00
ref: 16
GEAR,1ST DRIVEN
2431128H00
€ 86.50
17
2432128H00
ref: 17
GEAR,2ND DRIVEN
2432128H00
€ 86.50
18
2433128H10
ref: 18
GEAR,3RD DRIVEN
2433128H10
€ 94.00
19
2434128H10
ref: 19
GEAR,4TH DRIVEN
2434128H10
€ 81.00
20
2435128H20
ref: 20
GEAR,5TH DRIVEN
€ 72.00
21
0918117223
ref: 21
SHIM(17X30X1)
0918117223
€ 3.00
22
0918120195
ref: 22
SHIM(20X30X1)
0918120195
€ 3.00
23
0918124005
ref: 23
SHIM(24X34X1)
0918124005
€ 3.50
24
0918125111
ref: 24
SHIM(25X30X1)
0918125111
€ 2.00
25
0918127015
ref: 25
SHIM(27X33X1)
0918127015
€ 3.00
26
0926224001
ref: 26
BEARING(24X56X14)
0926224001
€ 49.50
27
0928931003
ref: 27
SEAL,OIL(31X40X6.7)
0928931003
€ 11.00
28
0930020037
ref: 28
BUSH(20X24X10)
0930020037
€ 12.50
29
0930027005
ref: 29
BUSH(27X31X13)
0930027005
€ 13.00
30
0938025010
ref: 30
CIRCLIP
0938025010
€ 3.00
31
0812362030
ref: 31
BEARING
0812362030
€ 24.50
32
2474120A00
ref: 32
RETAINER,COUNTER BEARING,R
2474120A00
€ 2.00
33
2475128H00
ref: 33
RETAINER,DRIVE SHAFT OIL SEAL
2475128H00
€ 8.50
34
0912606011
ref: 34
SCREW(6X12)
0912606011
€ 2.00
35
2626035G00
ref: 35
GEAR,KICK STARTER IDLE
2626035G00
€ 156.50
35
2626035G00
ref: 35
GEAR,KICK STARTER IDLE
2626035G00
€ 156.50
36
2626428H00
ref: 36
WASHER,KICK IDLE
2626428H00
€ 4.50
37
2751128H00
ref: 37
SPROCKET,ENGINE(13T)
2751128H00
€ 29.50
38
2753135G01
ref: 38
SPACER,ENGINE SPROCKET
2753135G01
€ 12.50
39
2760035G01114
ref: 39
CHAIN,DRIVE
2760035G01114
€ 163.50
40
2762035G01
ref: 40
JOINT SET,CHAIN
2762035G01
€ 13.50
41
2764135G01
ref: 41
PLATE,FR CHAIN GUIDE
2764135G01
€ 8.50
42
2751528H00
ref: 42
D RING,SPROCKET SPACER
2751528H00
€ 3.00
43
2751449H00
ref: 43
WASHER,ENGINE SPROCKET WAVE
2751449H00
€ 3.00
44
2751349H00
ref: 44
WASHER,ENGINE SPROCKET
2751349H00
€ 7.00
45
0910308458
ref: 45
BOLT(8X30)
0910308458
€ 3.50
