GEAR SHIFTING

RM-Z450 2014 (L4) USA (E03) RMZ450 RM Z450

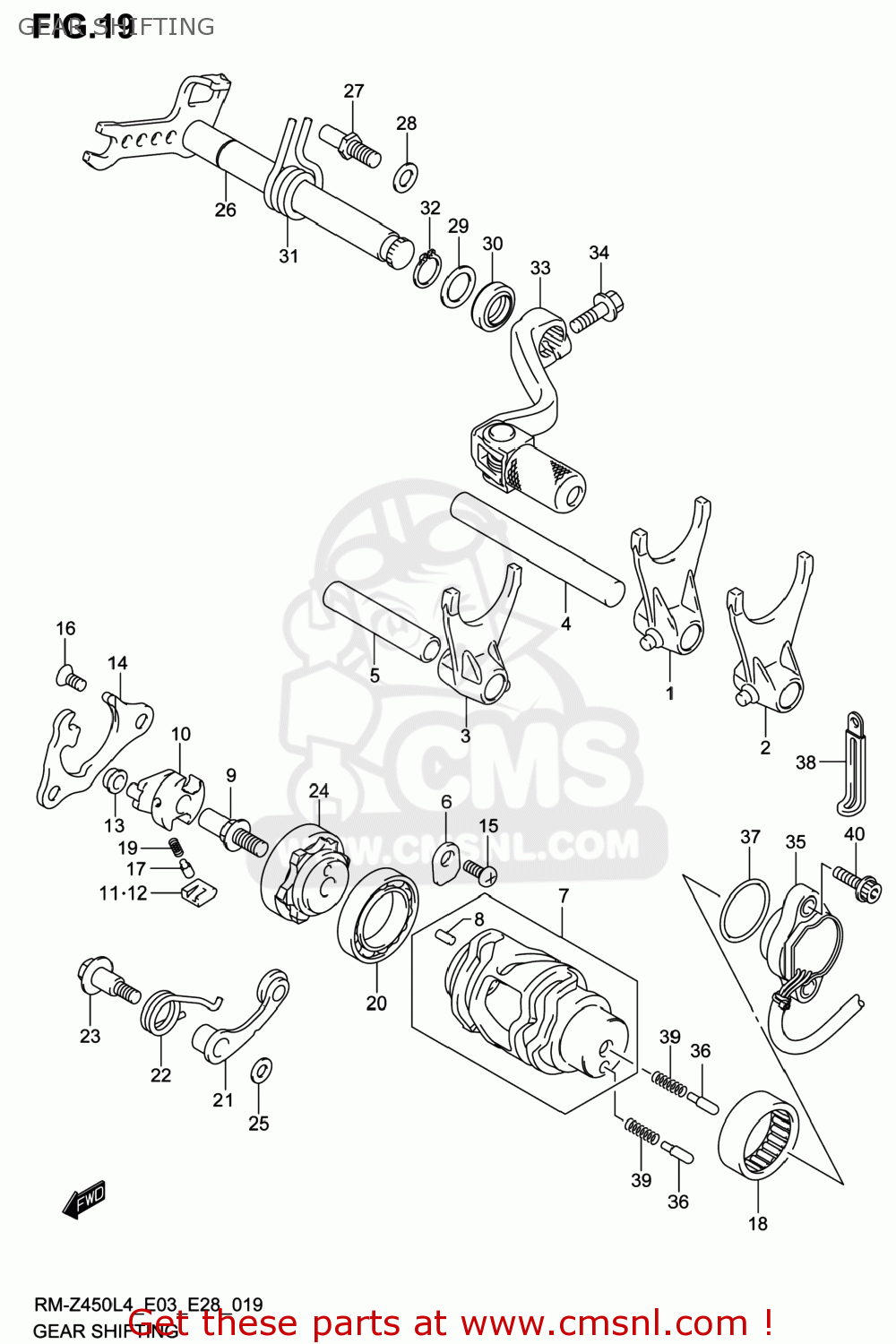

Gear shifting diagram RM-Z450 2014 (L4) USA (E03) RMZ450 RM Z450

GEAR SHIFTING RM-Z450 2014 (L4) USA (E03) RMZ450 RM Z450
GEAR SHIFTING RM-Z450 2014 (L4) USA (E03) RMZ450 RM Z450
GEAR SHIFTING RM-Z450 2014 (L4) USA (E03) RMZ450 RM Z450
prices are in EUR
ref
part #
description
quantity
1
2521128H00
ref: 1
FORK,GEAR SHIFT NO.1
2521128H00
€ 49.00
2
2522128H00
ref: 2
FORK,GEAR SHIFT NO.2
2522128H00
€ 49.00
3
2523128H00
ref: 3
FORK,GEAR SHIFT NO.3
2523128H00
€ 49.00
4
2541128H00
ref: 4
SHAFT,GEAR SHIFT FORK NO.1
€ 15.50
5
2542127C01
ref: 5
SHAFT,GEAR SHIFT FORK(L:60)
2542127C01
€ 9.50
6
2474121A00
ref: 6
RETAINER
2474121A00
€ 2.00
7
2531028H10
ref: 7
CAM,GEAR SHIFT
€ 87.00
8
0422104089
ref: 8
PIN
0422104089
€ 1.50
9
2531337F00
ref: 9
PIN,GEAR SHIFT CAM
2531337F00
€ 6.50
10
2532228H00
ref: 10
SHIFTER,GEAR SHIFT CAM
2532228H00
€ 28.00
11
2532334201
ref: 11
PAWL,GEAR SHIFT NO.1
2532334201
€ 6.00
12
2532434201
ref: 12
PAWL,GEAR SHIFT NO.2
2532434201
€ 6.00
13
2532528H00
ref: 13
ROLLER,GEAR SHIFT CAM SHIFTER
2532528H00
€ 5.50
14
2533128H00
ref: 14
LIFTER,GEAR SHIFT PAWL
€ 10.00
15
0912506122
ref: 15
SCREW(6X12)
0912506122
€ 1.50
16
0912606011
ref: 16
SCREW(6X12)
0912606011
€ 2.00
17
0920905023
ref: 17
PIN
0920905023
€ 2.00
18
0926325018
ref: 18
BEARING(25X32X12)
0926325018
€ 17.50
19
0944004003
ref: 19
SPRING
0944004003
€ 1.50
20
0814068050
ref: 20
BEARING
0814068050
€ 25.50
21
2535028H00
ref: 21
STOPPER,GEAR SHIFT CAM
2535028H00
€ 12.50
22
2535528H10
ref: 22
SPRING,GEAR SHIFT CAM STOPPER
2535528H10
€ 9.00
23
2535728H00
ref: 23
BOLT,SHIFT CAM STOPPER
2535728H00
€ 3.50
24
2538149H00
ref: 24
PLATE,GEAR SHIFT CAM STOPPER
2538149H00
€ 26.50
25
0821106121
ref: 25
WASHER
0821106121
€ 2.00
26
2551028H01
ref: 26
SHAFT,GEAR SHIFT
€ 47.50
27
2567110H00
ref: 27
STOPPER,GEAR SHIFT ARM
2567110H00
€ 2.50
28
0918108139
ref: 28
SHIM(8.8X14X1)
0918108139
€ 1.50
29
0918114139
ref: 29
SHIM(14X20X1)
0918114139
€ 2.50
30
0928314005
ref: 30
SEAL,OIL(14X22X7.3)
€ 6.50
31
0944420011
ref: 31
SPRING
0944420011
€ 3.50
32
083313114A
ref: 32
CIRCLIP
083313114A
€ 2.00
33
2560028H01
ref: 33
LEVER ASSY,GEAR SHIFT
2560028H01
€ 49.00
34
015470620A
ref: 34
BOLT
015470620A
€ 2.50
35
3773049H00
ref: 35
BASE ASSY,GEAR SHIFT TERMINAL
€ 64.50
36
0920905011
ref: 36
PIN(5X15.5)
0920905011
€ 2.00
37
0928026005
ref: 37
O RING(D:2.4,ID:26.2)
0928026005
€ 2.50
38
0940406429
ref: 38
CLAMP(L:45)
€ 2.50
39
0944004010
ref: 39
SPRING
0944004010
€ 1.50
40
071200516A
ref: 40
BOLT
071200516A
€ 1.50
