MAGNETO

RM-Z450 2014 (L4) USA (E03) RMZ450 RM Z450

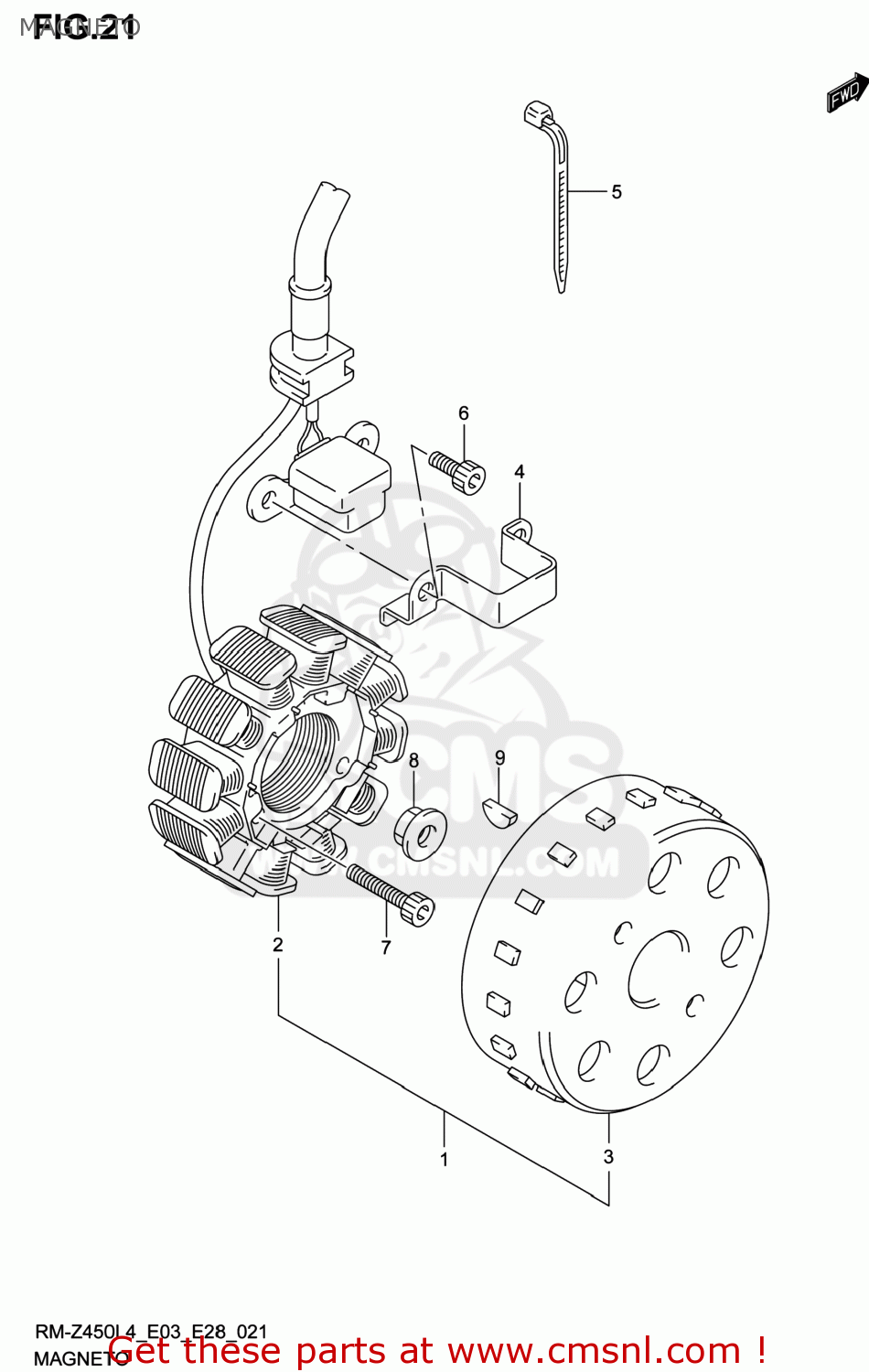

Magneto diagram RM-Z450 2014 (L4) USA (E03) RMZ450 RM Z450

MAGNETO RM-Z450 2014 (L4) USA (E03) RMZ450 RM Z450

MAGNETO RM-Z450 2014 (L4) USA (E03) RMZ450 RM Z450

prices are in EUR

ref

part #

description

quantity

1

3210028HA0
ref: 1

MAGNETO ASSY

€ 693.50

2

3210128HA0
ref: 2

STARTER ASSY

€ 333.00

3

3210228HA0
ref: 3

ROTOR ASSY

€ 365.00

4

3237135G00
ref: 4

CLAMP,MAGNETO LEAD

€ 5.00

5

0940718402
ref: 5

CLAMP(L:165)

€ 2.50

6

071300512A
ref: 6

BOLT

€ 2.50

7

071300525A
ref: 7

BOLT

€ 1.50

8

083161012B
ref: 8

NUT

€ 2.00

9

0834131039
ref: 9

KEY

€ 2.00
