CAM CHAIN

RM-Z450 2014 (L4) USA (E03) RMZ450 RM Z450

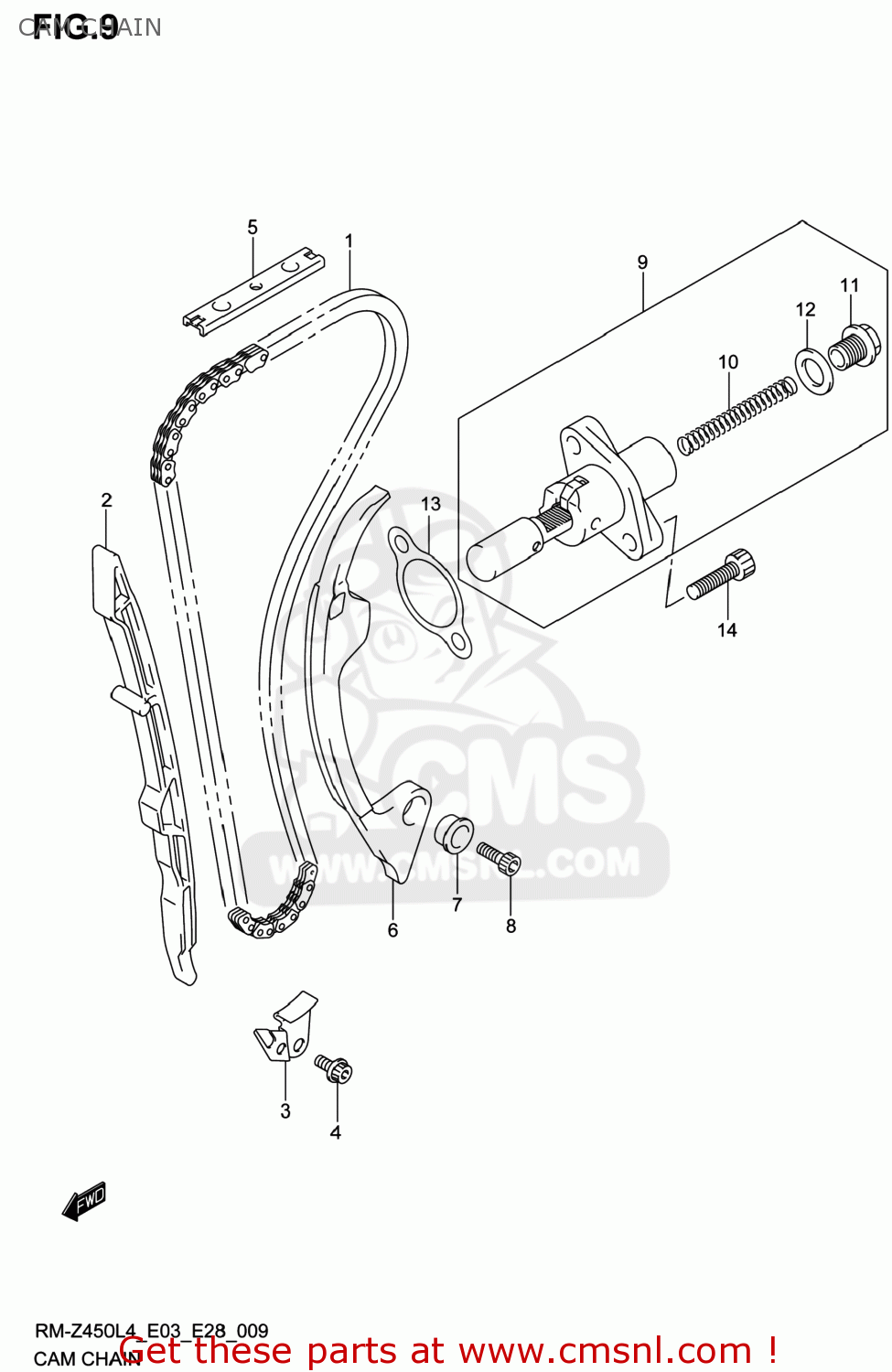

Cam chain diagram RM-Z450 2014 (L4) USA (E03) RMZ450 RM Z450

prices are in EUR

ref

part #

description

quantity

1276035G00
ref: 1

CHAIN,CAMSHAFT DRIVE

€ 72.00

1276035G00
ref: 1

CHAIN,CAMSHAFT DRIVE

€ 72.00

1277128H10
ref: 2

GUIDE,CAM CHAIN NO.1

€ 19.00

1277328H10
ref: 3

RETAINER,CAM CHAIN GUIDE NO.1

€ 4.00

071200610A
ref: 4

BOLT

€ 2.00

1278235G00
ref: 5

GUIDE,CAM CHAIN NO.2

€ 9.00

1281128H10
ref: 6

TENSIONER,CAM CHAIN

€ 44.50

1281235G00
ref: 7

SPACER,CAM CHAIN TENSIONER

€ 7.50

071300616A
ref: 8
07130-0616B

BOLT

€ 3.00

1283035G20
ref: 9

ADJUSTER ASSY,TENSIONER

€ 91.50

1283135F00
ref: 10

SPRING

€ 3.50

1283305A00
ref: 11

PLUG,FR TENSIONER ADJ

€ 9.00

1283724F10
ref: 12

GASKET,TENSIONER ADJUSTER (NAS)

€ 4.00

1283724A10
ref: 13

GASKET,TENSIONER ADJUSTER (NAS)

€ 3.50

071300625A
ref: 14

BOLT

€ 2.50
