AIR CLEANER

DL650A VSTROM 2014 (L4) USA (E03)

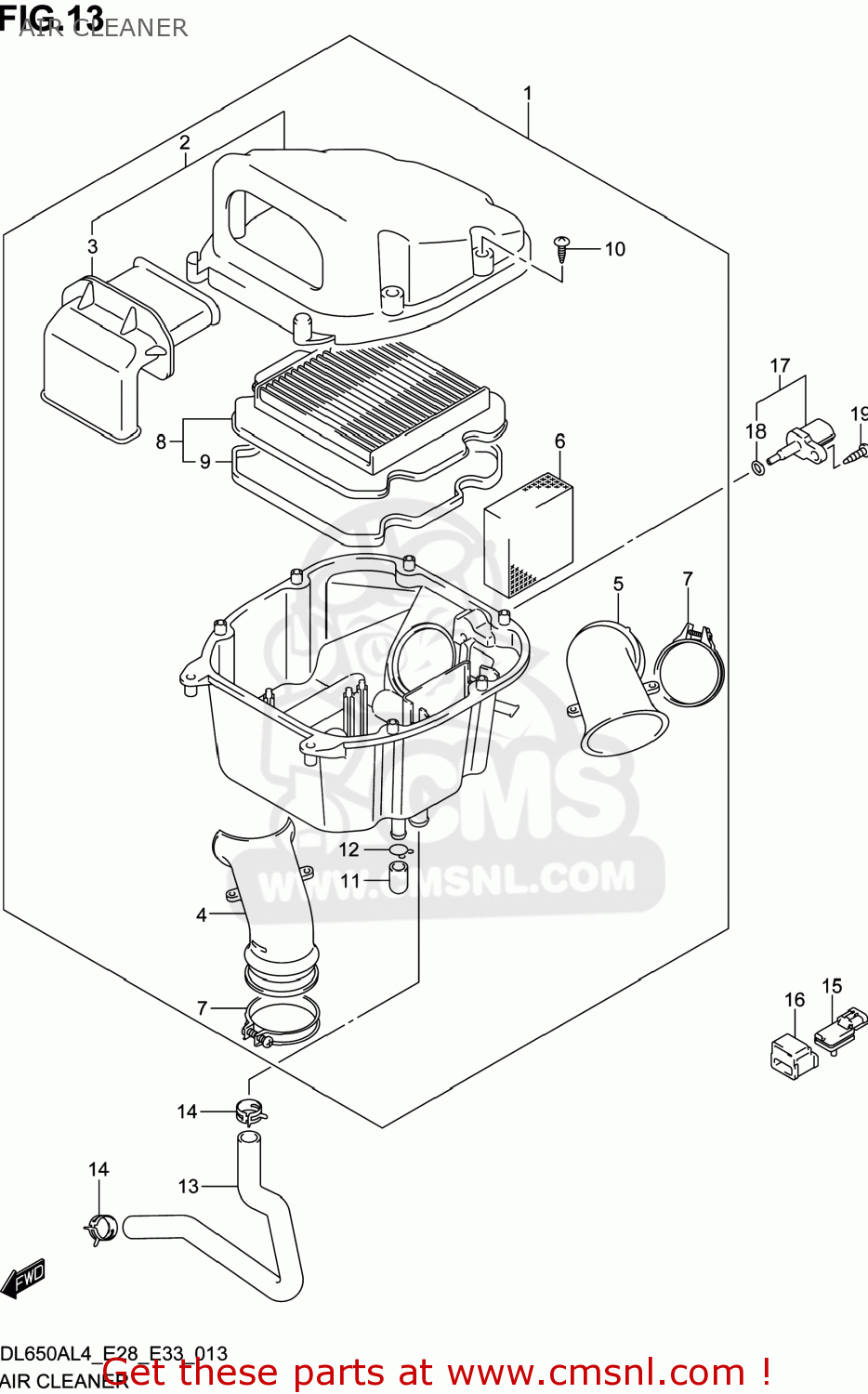

Air cleaner diagram DL650A VSTROM 2014 (L4) USA (E03)

AIR CLEANER DL650A VSTROM 2014 (L4) USA (E03)

AIR CLEANER DL650A VSTROM 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1370011J01
ref: 1

CLEANER ASSY,AIR

€ 182.50

2

1374011J01
ref: 2

CAP,AIR CLEANER

€ 44.00

3

1389127G01
ref: 3

TUBE,INLET

€ 32.00

4

1388127G10
ref: 4

TUBE,OUTLET

€ 15.50

5

1388227G10
ref: 5

TUBE,OUTLET

€ 15.50

6

1378811J00
ref: 6

FILTER,BREATHER

€ 12.50

7

1382644H01
ref: 7

CLAMP,OUTLET TUBE

€ 4.50

8

1378027G10
ref: 8

FILTER ASSY

€ 36.00

9

1374606G00
ref: 9

GASKET,AIR CLEANER (NAS)

€ 13.00

10

031410516A
ref: 10

SCREW

€ 2.50

11

1387810G00
ref: 11

PLUG

€ 3.00

12

0940114301
ref: 12

CLIP

€ 2.00

13

1385011J00
ref: 13

TUBE,BREATHER

€ 32.00

14

0940120405
ref: 14

CLIP

€ 3.00

15

1859141F00
ref: 15

SENSOR,PRESSURE

€ 360.00

16

1859541F00
ref: 16

HOLDER,SENSOR

€ 14.50

17

1365041F10
ref: 17

SENSOR,AIR TEMP

€ 41.50

18

1365541F10
ref: 18

O RING

€ 7.00

19

035110516A
ref: 19

SCREW

€ 2.50
