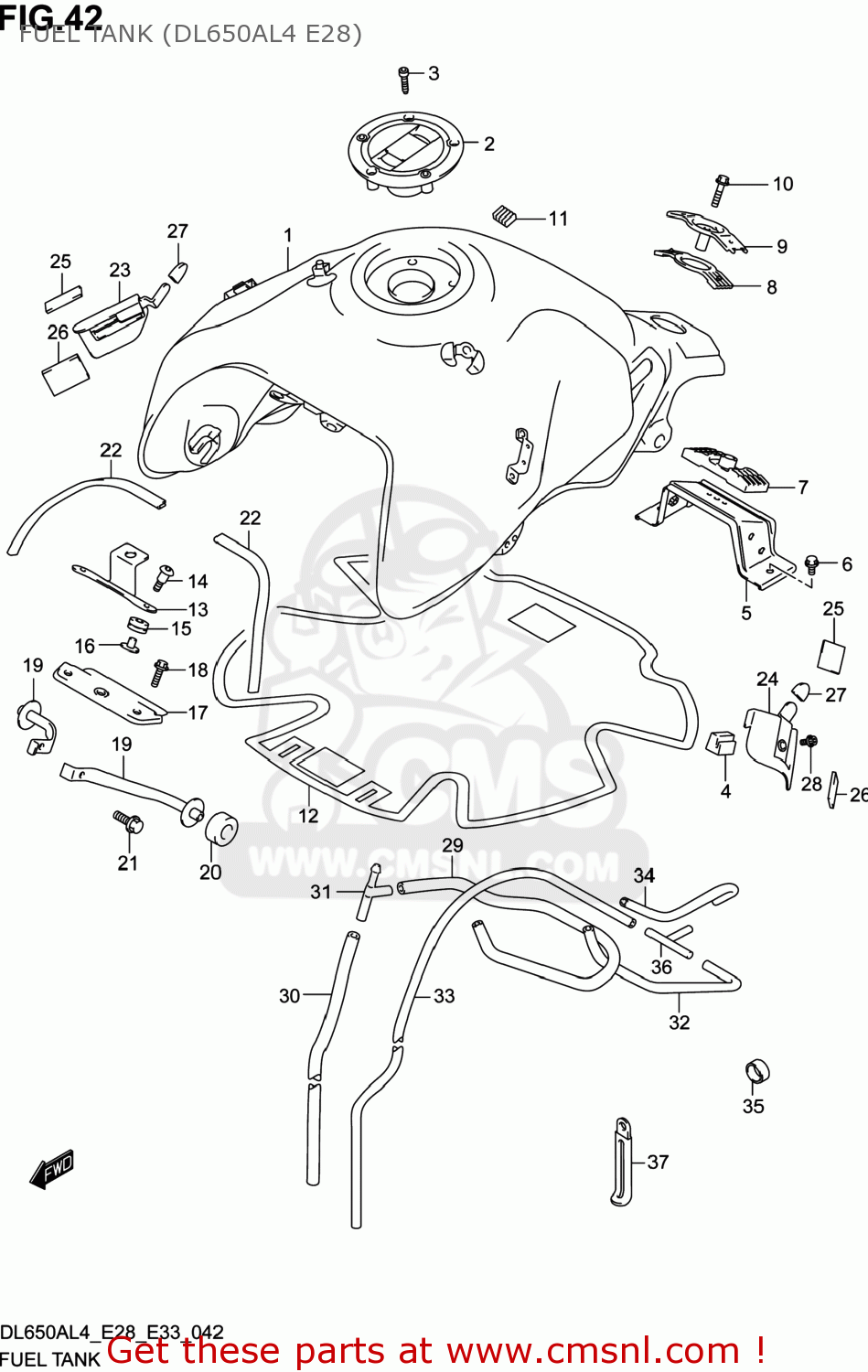

FUEL TANK (DL650AL4 E28)

ref

part #

description

quantity

1

4410011J00YKV
ref: 1

TANK ASSY,FUEL(BLACK)

€ 0.00

2

4420016850
ref: 2

CAP SET,FUEL TANK

€ 155.50

3

4424411J00
ref: 3

BOLT,FUEL TANK FILLER CAP

€ 3.00

4

4454111J00
ref: 4

CUSHION,FUEL TANK SIDE

€ 5.50

5

4455006G10
ref: 5

BRACKET,FUEL TANK RR

€ 28.00

6

015500816A
ref: 6

BOLT

€ 2.50

7

4454506G00
ref: 7

CUSHION,FUEL TANK RR LWR

€ 11.50

8

4454206G00
ref: 8

CUSHION,FUEL TANK RR UPR

€ 10.50

9

4453006G00
ref: 9

BRACKET,FUEL TANK RR UP

€ 12.00

10

015500835A
ref: 10

BOLT

€ 3.50

11

4457244G00
ref: 11

FASTENER

€ 5.00

12

4419411J00
ref: 12

SHIELD,FUEL TANK CTR

€ 50.00

13

4415411J00
ref: 13

BRACKET,FR COVER

€ 5.50

14

0913906192
ref: 14

SCREW(6X25)

€ 3.00

15

4451116G00
ref: 15

CUSHION,FUEL TANK FR

€ 4.00

16

4451216G00
ref: 16

SPACER,FUEL TANK FR

€ 6.50

17

4452011J00
ref: 17

BRACKET,FUEL TANK FR

€ 8.50

18

015500620B
ref: 18

BOLT

€ 2.50

19

4456011J00
ref: 19

BRACKET,FR SIDE

€ 12.00

20

4454211J00
ref: 20

CUSHION,FR SIDE BRKT

€ 3.00

21

015500612B
ref: 21

BOLT

€ 2.50

22

6824111J01
ref: 22

MOLDING,FUEL TANK

€ 12.50

23

4417911J00
ref: 23

BRACKET,FUEL TANK COVER,R

€ 4.50

24

4418911J00
ref: 24

BRACKET,FUEL TANK COVER,L

€ 4.50

25

4457213G00
ref: 25

FASTENER

€ 6.00

26

4418323H00
ref: 26

CUSHION,TANK SIDE COVER

€ 8.00

27

0932918001
ref: 27

CUSHION

€ 2.50

28

071200612A
ref: 28

BOLT

€ 3.50

29

4442311J20
ref: 29

HOSE,FUEL TANK DRAIN NO.1

€ 12.00

30

4442311J30
ref: 30

HOSE,FUEL TANK DRAIN NO.2

€ 3.00

31

0936708005
ref: 31

3 WAY

€ 4.00

32

4442414J00
ref: 32

HOSE,FUEL TANK BREATHER NO.1

€ 6.50

33

093525082300B
ref: 33

HOSE(5X8.2X2000)

€ 13.00

34

0935250823600
ref: 34
44420-44AR0

HOSE(5X8.2X600)

€ 13.00

35

0935212163600
ref: 35

HOSE(12X16X600)

€ 24.50

36

0936706007
ref: 36

3 WAY

€ 2.50

37

0940406433
ref: 37

CLAMP(L:80)

€ 3.00
