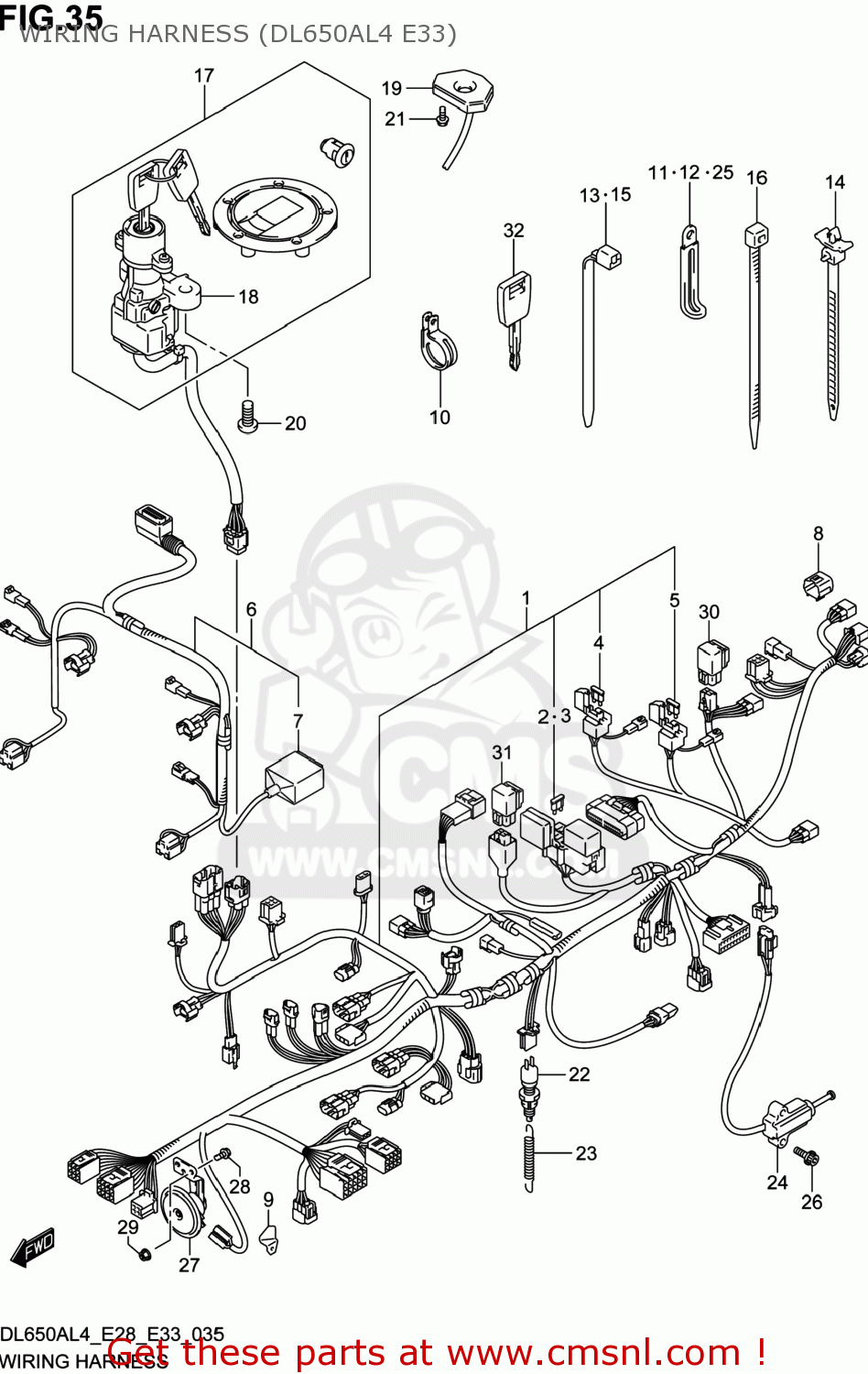

WIRING HARNESS (DL650AL4 E33)

ref

part #

description

quantity

1

3661011JE0
ref: 1

HARNESS,WIRING NO.1

€ 0.00

2

0948110501
ref: 2

FUSE(10A)

€ 3.00

3

0948115501
ref: 3

FUSE(15A)

€ 1.00

4

0948115101
ref: 4

FUSE(15A)

€ 1.50

5

0948125103
ref: 5

FUSE(25A)

€ 2.50

6

3662011J00
ref: 6

HARNESS,WIRING NO.2

€ 260.00

7

3661847H00
ref: 7

COVER,CONNECTOR

€ 13.00

8

3665406J00
ref: 8

CAP,TS

€ 8.50

9

3671111J00
ref: 9

GUIDE,WIRING HARNESS

€ 7.00

10

0940326401
ref: 10

CLAMP

€ 3.50

11

0940406429
ref: 11

CLAMP(L:45)

€ 2.50

12

0940406433
ref: 12

CLAMP(L:80)

€ 3.00

13

0940714403
ref: 13

CLAMP(L:125)

€ 2.50

14

0940714408
ref: 14
09407-17402

CLAMP(L:120)

€ 5.00

15

0940718402
ref: 15

CLAMP(L:165)

€ 2.50

16

0940714407
ref: 16

CLAMP(L:145)

€ 4.00

17

3700011860
ref: 17

LOCK SET

€ 270.50

18

3710011J10
ref: 18

LOCK ASSY,STEERING

€ 136.00

19

3718015H00
ref: 19

COVER,STEERING LOCK

€ 28.00

20

0913908016
ref: 20

BOLT(8X20)

€ 3.50

21

015470512B
ref: 21

BOLT

€ 2.00

22

3774045D00
ref: 22
37740-31D00

SWITCH ASSY,STOP LAMP

€ 20.50

23

0944306012
ref: 23

SPRING

€ 3.00

24

3784006G00
ref: 24

SWITCH ASSY,SIDE STAND

€ 67.00

25

0940406429
ref: 25

CLAMP(L:45)

€ 2.50

26

015500616B
ref: 26

BOLT

€ 2.50

27

3850011J00
ref: 27

HORN ASSY

€ 53.50

28

0911806017
ref: 28

BOLT(6X16)

€ 1.50

29

083161006B
ref: 29

NUT

€ 2.50

30

3874024X50
ref: 30

RELAY ASSY

€ 37.50

31

3874024X50
ref: 31

RELAY ASSY

€ 37.50

32

3714611J00
ref: 32

KEY,BLANK

€ 88.50
