SIDE COWLING
DL650A VSTROM 2014 (L4) USA (E03)

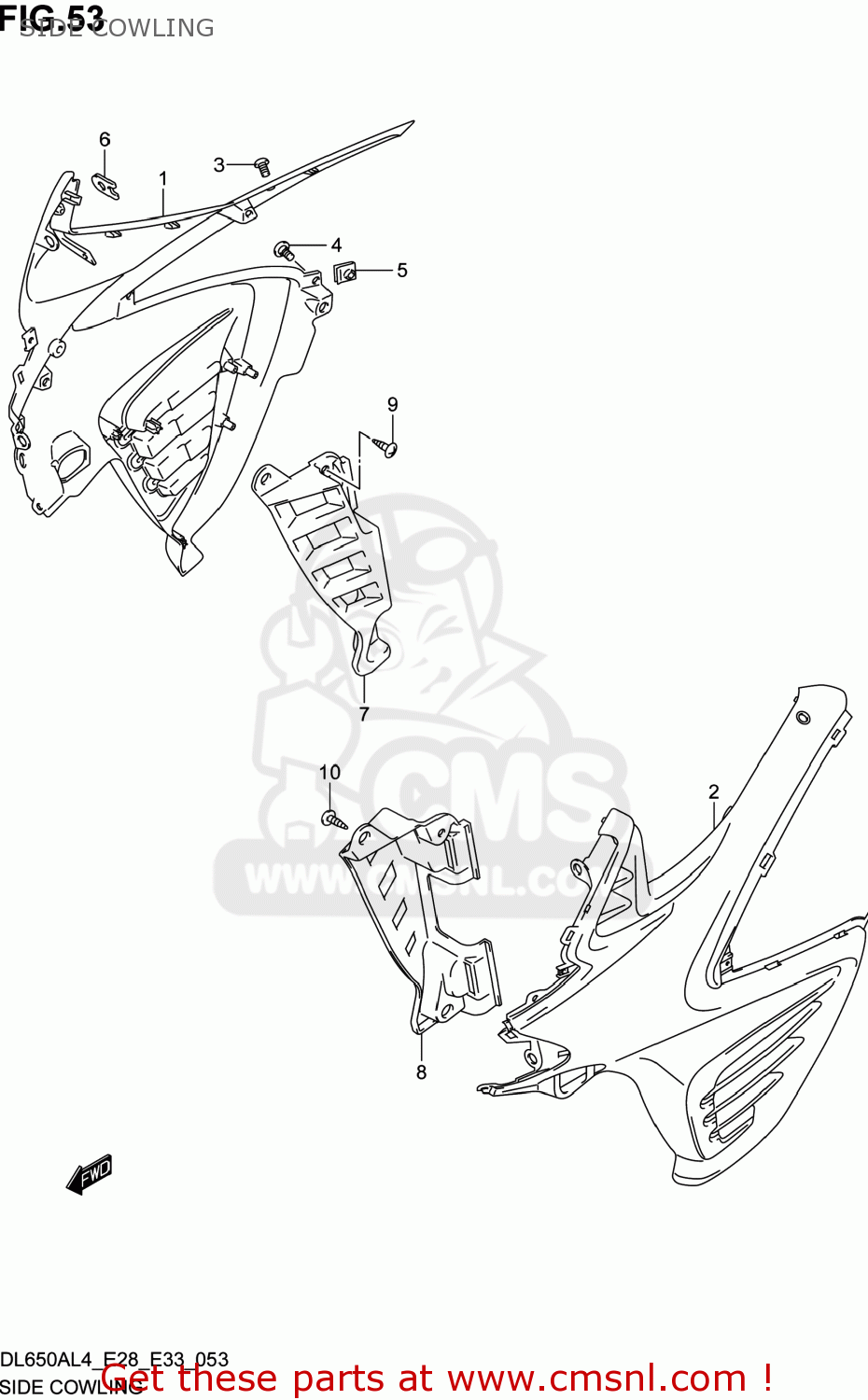

Side cowling diagram DL650A VSTROM 2014 (L4) USA (E03)
SIDE COWLING DL650A VSTROM 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
9442111J00
ref: 1
COWLING,SIDE,R
€ 57.00
2
9443111J00
ref: 2
COWLING,SIDE,L
€ 57.00
3
0913906051
ref: 3
SCREW(6X10)
€ 2.50
4
0913906144
ref: 4
SCREW(6X12)
€ 3.00
5
0914805052
ref: 5
NUT
€ 3.50
6
0914806020
ref: 6
NUT
€ 3.50
7
9446211J01
ref: 7
COVER,COWLING INNER,R
€ 15.00
8
9446311J01
ref: 8
COVER,COWLING INNER,L
€ 15.00
9
032410512B
ref: 9
SCREW
€ 1.50
10
035410516A
ref: 10
SCREW
€ 1.50
