THROTTLE BODY (DL650AL4 E28)

DL650A VSTROM 2014 (L4) USA (E03)

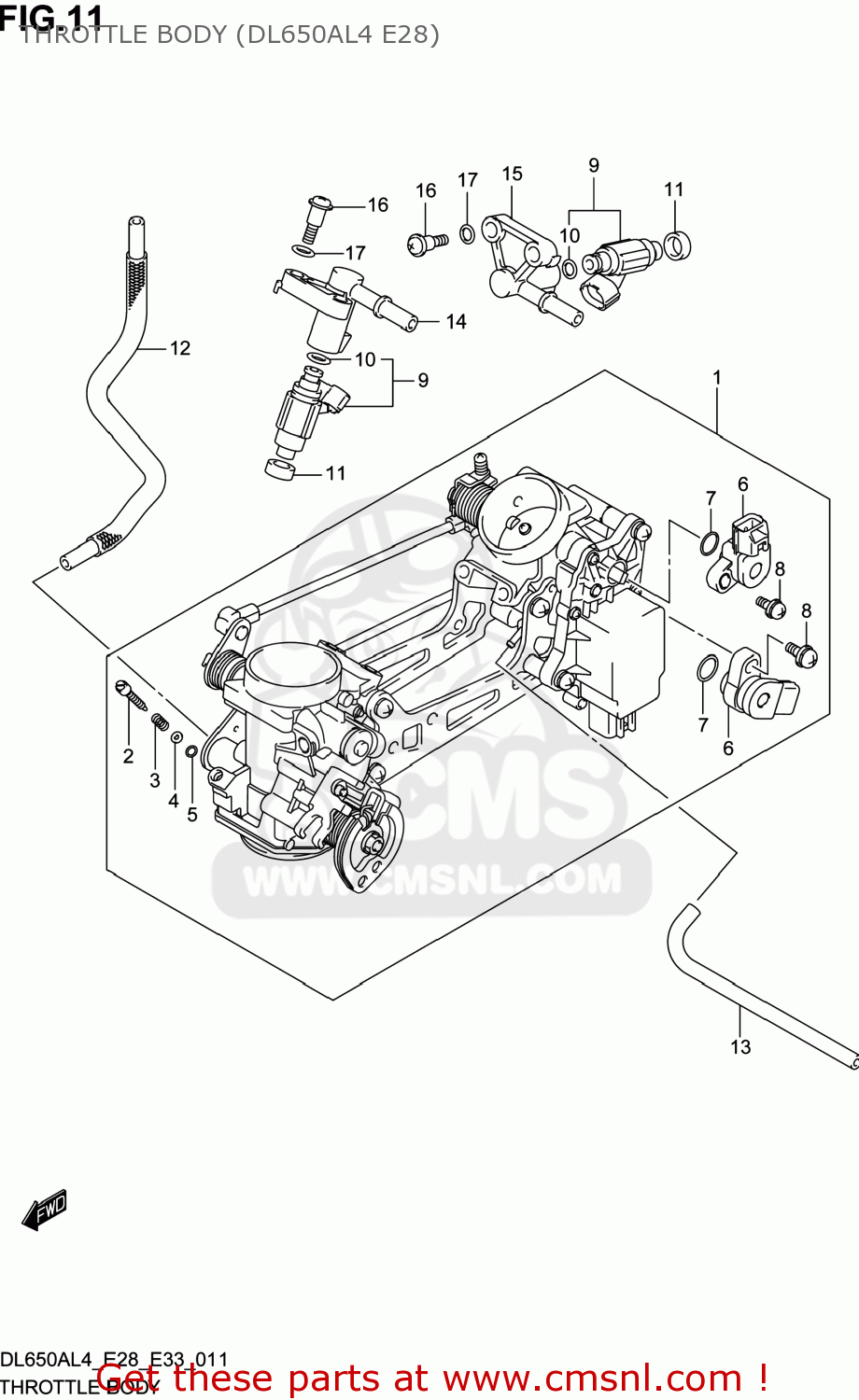

Throttle body (dl650al4 e28) diagram DL650A VSTROM 2014 (L4) USA (E03)

THROTTLE BODY (DL650AL4 E28) DL650A VSTROM 2014 (L4) USA (E03)

THROTTLE BODY (DL650AL4 E28) DL650A VSTROM 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1340511J00
ref: 1

BODY ASSY,THROTTLE

€ 1,249.50

2

1326933E00
ref: 2

SCREW

€ 8.50

3

1326848700
ref: 3

SPRING,THROTTLE SCREW

€ 3.50

4

1360647A00
ref: 4

WASHER

€ 2.00

5

1329529900
ref: 5

O RING,PILOT AIR SCREW

€ 4.00

6

1358027G21
ref: 6

SENSOR

€ 101.50

7

1357529G00
ref: 7

O RING

€ 3.00

8

1360502F00
ref: 8

SCREW

€ 3.00

9

1571044H00
ref: 9

INJECTOR ASSY

€ 275.00

10

1571758B00
ref: 10

O-RING

€ 7.00

11

1572229G00
ref: 11

SEAL

€ 9.50

12

1368344H00
ref: 12

HOSE

€ 29.00

13

1368344H10
ref: 13

HOSE

€ 13.00

14

1573111J00
ref: 14

DELIVERY PIPE

€ 118.00

15

1573211J00
ref: 15

DELIVERY PIPE

€ 115.00

16

1360111J00
ref: 16

SCREW

€ 3.00

17

1360229G00
ref: 17

PACKING (NAS)

€ 2.00
