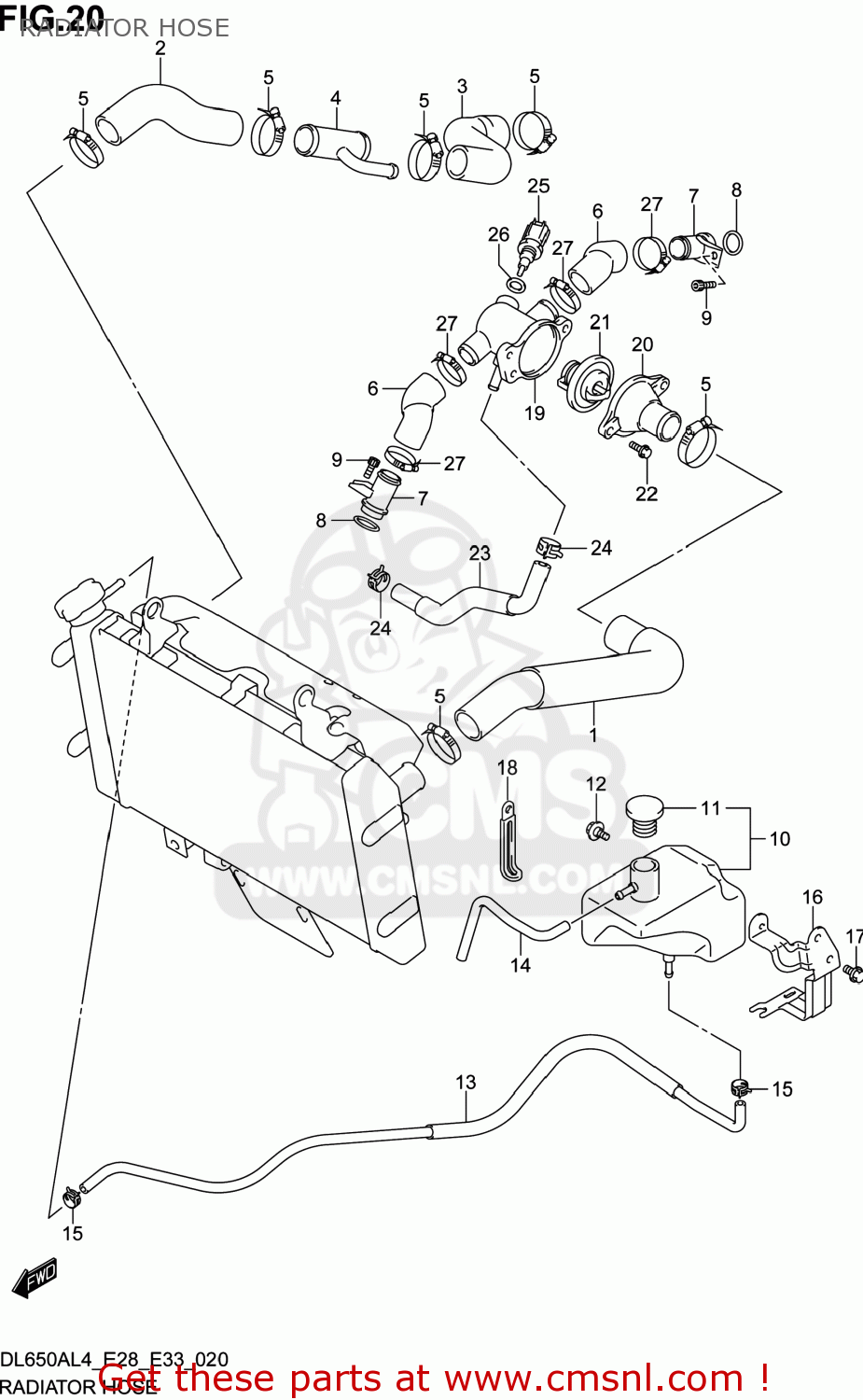

RADIATOR HOSE

ref

part #

description

quantity

1

1785111J00
ref: 1

HOSE,RADIATOR INLET

€ 38.00

2

1785244H20
ref: 2

HOSE,RADIATOR OUTLET NO.1

€ 10.50

3

1785444H00
ref: 3

HOSE,RADIATOR OUTLET NO.2

€ 16.50

4

1788044H00
ref: 4

UNION,WATER HOSE THREE WAY

€ 33.50

5

0940235501
ref: 5

CLAMP

€ 7.00

6

1785319F00
ref: 6

HOSE,CONNECTOR INLET

€ 11.50

7

1789006G20
ref: 7

UNION,CONNECTOR HOSE

€ 9.50

8

0928018008
ref: 8
09280-18009

O RING(D:3.2,ID:17.8)

€ 8.00

9

071300612A
ref: 9

BOLT

€ 2.50

10

1791027G10
ref: 10

TANK ASSY,RESERVOIR

€ 35.50

11

1793102FA0
ref: 11

CAP,RESERVOIR TANK

€ 4.50

12

0911106085
ref: 12

BOLT(6X12)

€ 4.50

13

1790027810
ref: 13

HOSE SET,RESERVOIR TANK INLET

€ 13.50

14

1798215H00
ref: 14

HOSE,RESERVOIR TANK OVFL

€ 13.00

15

0940108411
ref: 15

CLIP

€ 3.00

16

1792027G10
ref: 16

BRACKET,RESERVOIR TANK

€ 12.50

17

015500610A
ref: 17

BOLT

€ 2.00

18

0940406429
ref: 18

CLAMP(L:45)

€ 2.50

19

1766202F11
ref: 19

CONNECTOR,THERMOSTAT INLET

€ 40.00

20

1766317G00
ref: 20

CAP,THERMOSTAT CONNECTOR

€ 18.00

21

1767006G60
ref: 21

THERMOSTAT,WATER

€ 27.00

22

015470616A
ref: 22

BOLT

€ 2.00

23

1785644H00
ref: 23

HOSE,CONNECTOR TO WATER PUMP

€ 13.50

24

0940112409
ref: 24

CLAMP

€ 3.00

25

1365049X00
ref: 25

SENSOR,TEMP

€ 73.00

26

0916812017
ref: 26

GASKET(12X17X1) (NAS)

€ 2.00

27

0940228513
ref: 27

CLAMP

€ 6.50
