OIL PUMP

DL650A VSTROM 2014 (L4) USA (E03)

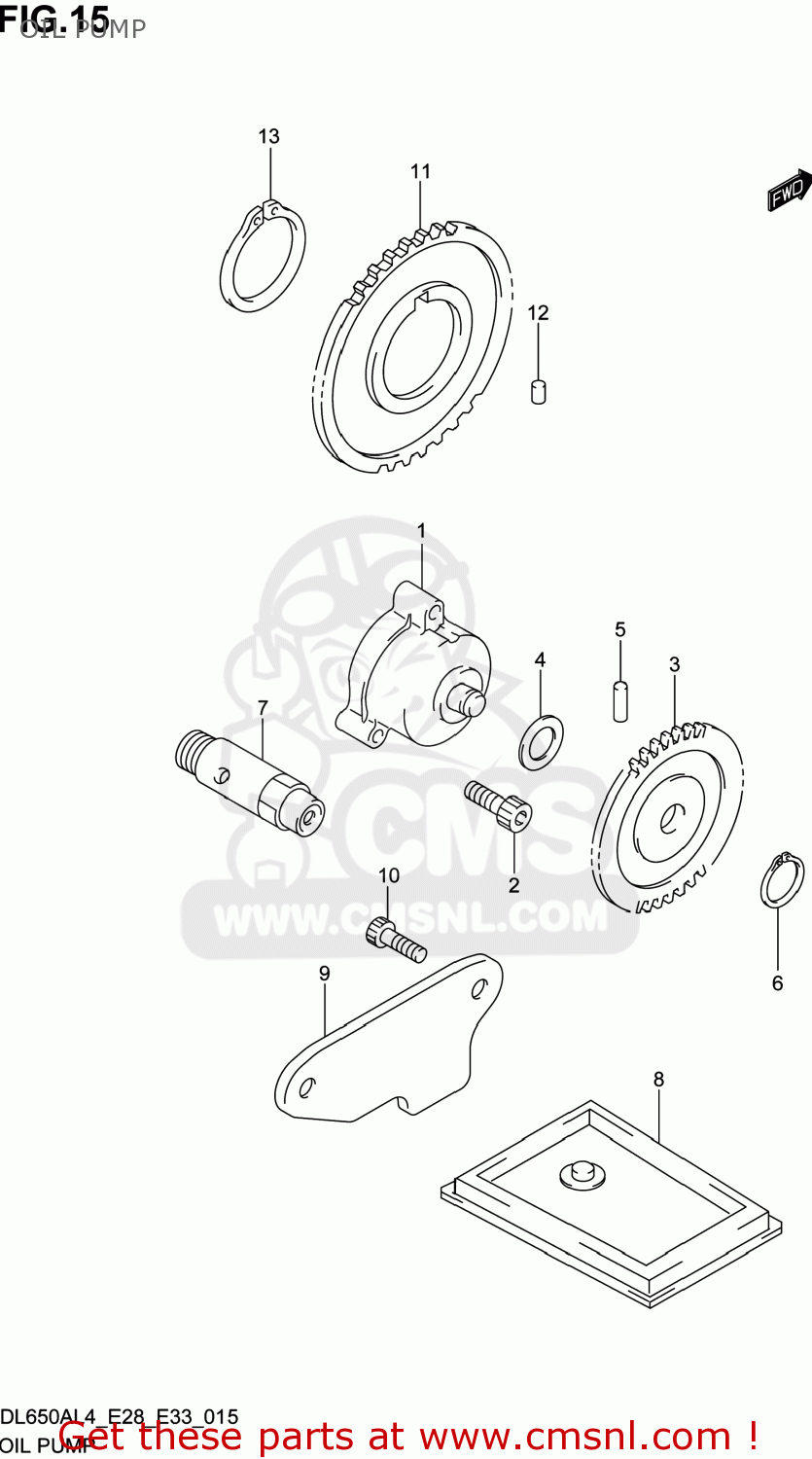

Oil pump diagram DL650A VSTROM 2014 (L4) USA (E03)

OIL PUMP DL650A VSTROM 2014 (L4) USA (E03)

OIL PUMP DL650A VSTROM 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1640020F00
ref: 1

PUMP ASSY,ENGINE OIL

€ 135.50

2

071300625A
ref: 2

BOLT

€ 2.50

3

1633119F00
ref: 3

GEAR,ENG OIL PUMP DRIVEN

€ 18.50

3

1633119F00
ref: 3

GEAR,ENG OIL PUMP DRIVEN

€ 18.50

4

0918110158
ref: 4

SHIM(10X18X0.5)

€ 2.50

5

0926104001
ref: 5

PIN(4X18.5)

€ 1.50

6

0833131109
ref: 6

CIRCLIP

€ 2.00

7

1644017C20
ref: 7

VALVE ASSY,OIL RELIEF

€ 39.00

8

1652032E00
ref: 8

STRAINER,ENGINE OIL

€ 11.50

9

1652317G00
ref: 9

CAP,OIL STRAINER

€ 7.50

10

071300612A
ref: 10

BOLT

€ 2.50

11

1632119F00
ref: 11

GEAR,ENG OIL PUMP DRIVE

€ 42.50

11

1632119F00
ref: 11

GEAR,ENG OIL PUMP DRIVE

€ 42.50

12

0926106002
ref: 12

PIN(6X6)

€ 1.50

13

0833131383
ref: 13

CIRCLIP

€ 2.50
