REAR FENDER

DL650A VSTROM 2014 (L4) USA (E03)

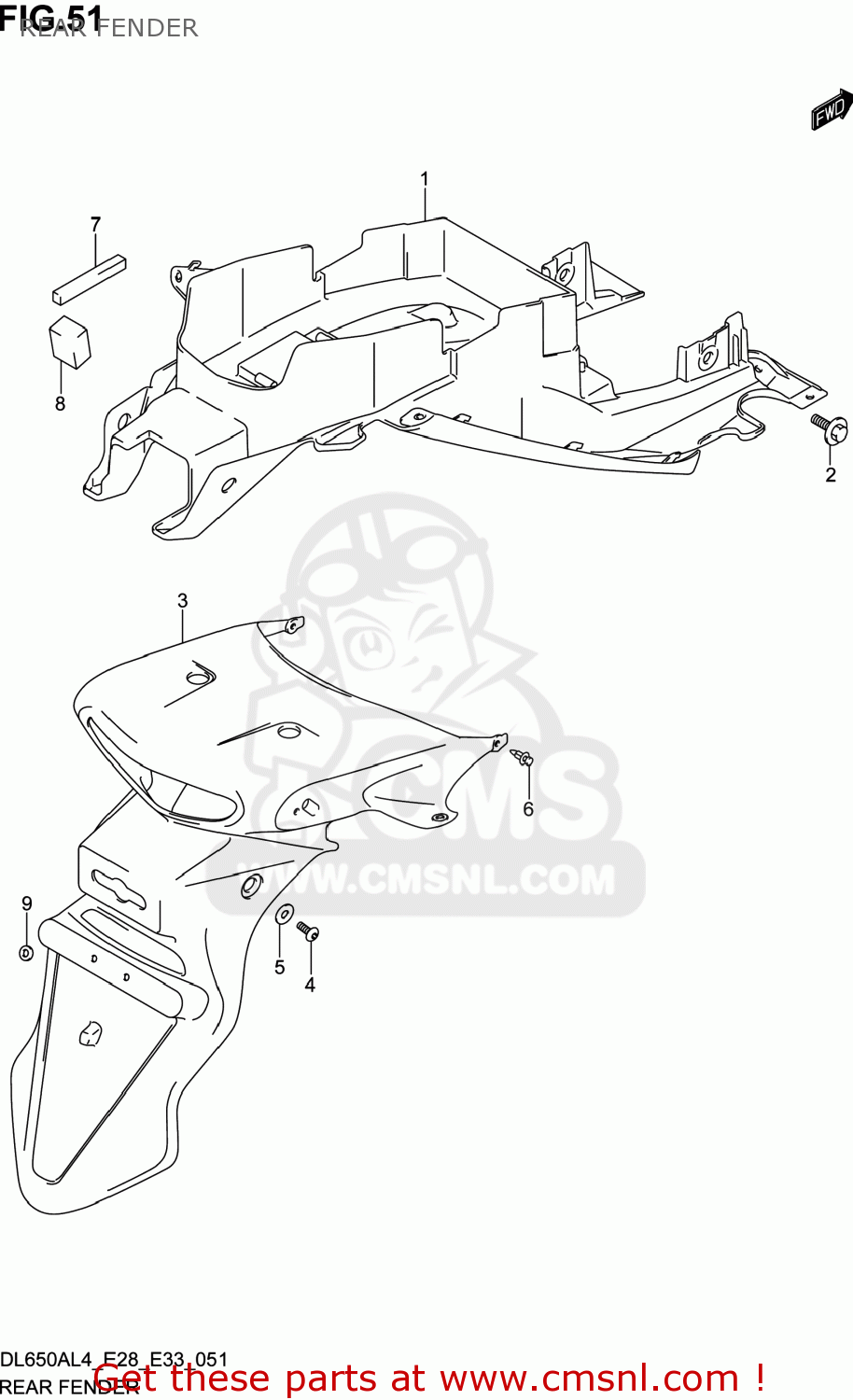

Rear fender diagram DL650A VSTROM 2014 (L4) USA (E03)

REAR FENDER DL650A VSTROM 2014 (L4) USA (E03)

REAR FENDER DL650A VSTROM 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6311111J10
ref: 1

FENDER,RR FR

€ 88.50

2

0911606181
ref: 2
09116-06191

BOLT(6X13)

€ 3.00

3

6311211J00291
ref: 3

FENDER,RR RR

€ 76.00

4

0913906140
ref: 4

SCREW(6X16)

€ 3.50

5

0916006156
ref: 5

WASHER(6.5X18X1.6)

€ 1.50

6

09409063145PK
ref: 6

CLIP(BLACK)

€ 3.50

7

4551816G00
ref: 7

CUSHION,SEAT TAIL COVER CTR

€ 2.50

8

6312111J00
ref: 8

CUSHION,RR FENDER RR

€ 4.00

9

083220106B
ref: 9

WASHER

€ 2.00
