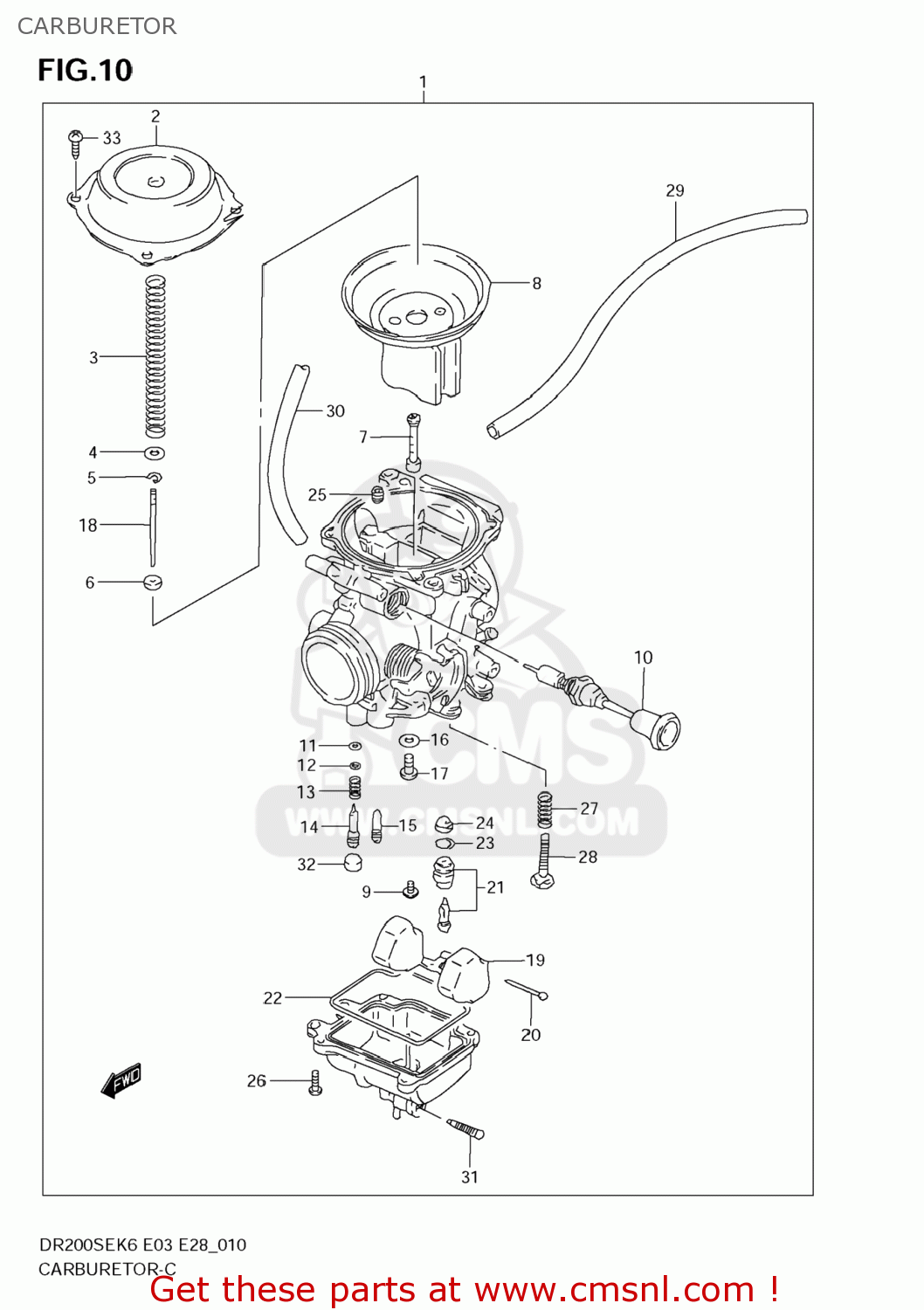

CARBURETOR

ref

part #

description

quantity

1-1

1320042AC1
ref: 1-1

CARBURETOR ASSY

€ 325.50

1-2

1320042AE1
ref: 1-2

CARBURETOR ASSY

€ 325.50

2

1350242A00
ref: 2

COVER,DIAPHRAGM

€ 25.00

3

1341742A00
ref: 3

SPRING

€ 6.00

4

1338242A00
ref: 4

RING

€ 3.50

5

1339410010
ref: 5

CLIP

€ 4.50

6

1338747010
ref: 6

RING

€ 7.50

7

0949400881
ref: 7

JET,NEEDLE(P-5M)

€ 0.00

8

1350042A00
ref: 8

DIAPHRAGM ASSY

€ 123.00

9

1360243410
ref: 9

SCREW

€ 2.50

10

1341142A20
ref: 10

PLUNGER ASSY

€ 26.50

11

1329529900
ref: 11

O RING,PILOT AIR SCREW

€ 4.00

12

1329129900
ref: 12

WASHER

€ 2.00

13

1326847070
ref: 13

SPRING

€ 5.00

14

1327947070
ref: 14

SCREW,PILOT

€ 11.50

15

0949235008
ref: 15

JET,PILOT(35)

€ 7.50

16

1338203110
ref: 16

WASHER

€ 2.50

17

0949125010
ref: 17

JET,MAIN(125)

€ 8.50

18

1338342AC0
ref: 18

NEEDLE,JET(5D77-1)

€ 0.00

19

1325042A00
ref: 19

FLOAT

€ 27.00

20

1325492311
ref: 20

PIN,FLOAT

€ 2.00

21

1337044500
ref: 21

VALVE ASSY,NEEDLE

€ 40.50

22

1325142A00
ref: 22

O RING,FLOAT CHAMBER

€ 7.50

23

1337435C00
ref: 23

O RING,NEEDLE VALVE SEAT

€ 6.00

24

1337619F00
ref: 24

FILTER

€ 6.50

25

0949327001
ref: 25

JET,AIR(135)

€ 11.00

26

021120412A
ref: 26

SCREW

€ 1.50

27

1326837420
ref: 27

SPRING,THROTTLE SCREW

€ 3.50

28

1326725D00
ref: 28

ADJUSTER

€ 9.00

29

0935250823600
ref: 29
44420-44AR0

HOSE(5X8.2X600)

€ 13.00

30

0935545855600
ref: 30

HOSE(4.5X8.5X600)

€ 14.00

31

1324713A00
ref: 31
13247-02340

SCREW,DRAIN

€ 5.50

32

1328105A00
ref: 32

PLUG

€ 3.50

33

021120408B
ref: 33

SCREW

€ 2.00

all assemblies
