CYLINDER

DR200SE 2006 (K6) USA (E03)

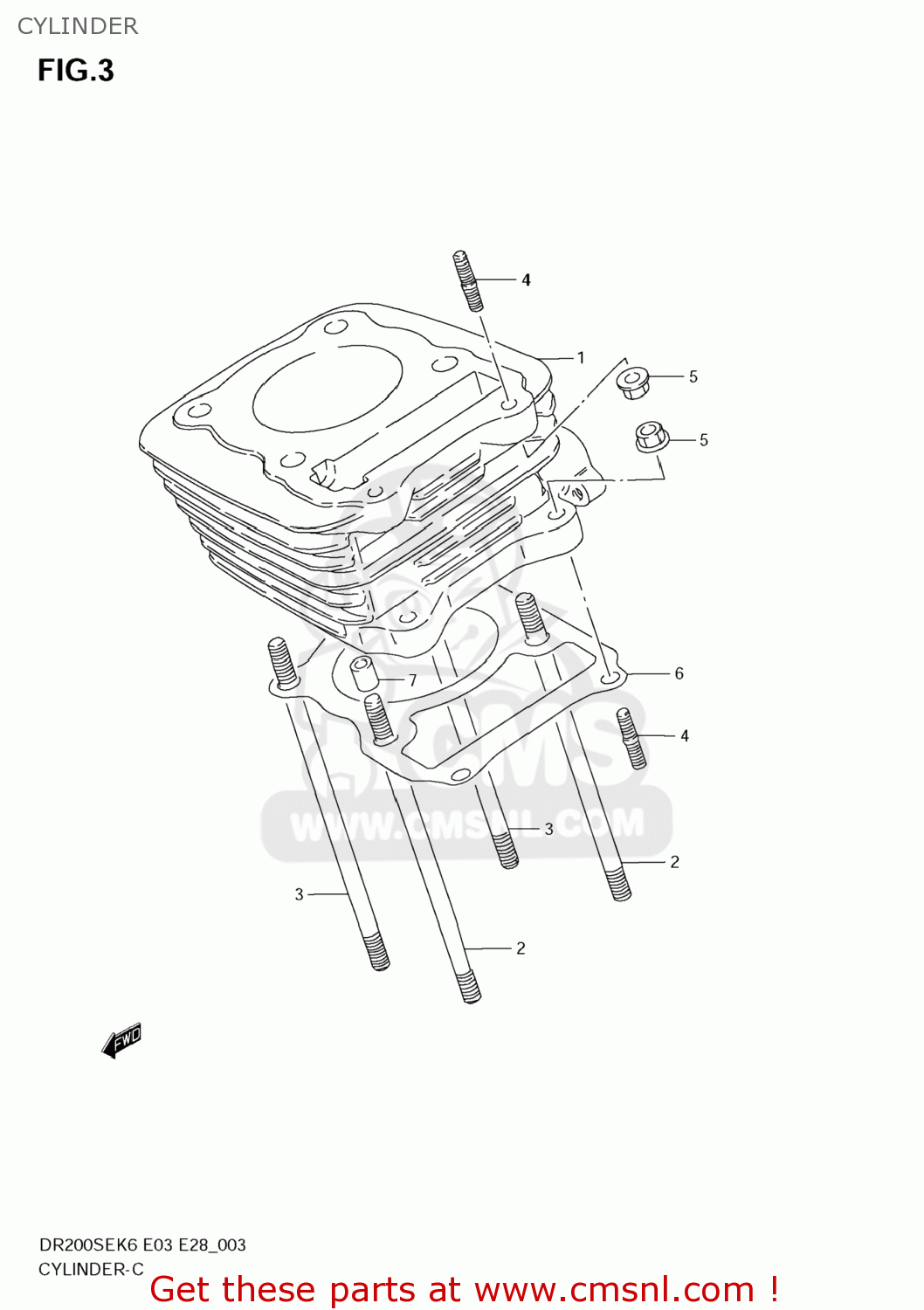

Cylinder diagram DR200SE 2006 (K6) USA (E03)

CYLINDER DR200SE 2006 (K6) USA (E03)

CYLINDER DR200SE 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1121113G500F0
ref: 1

CYLINDER

€ 329.00

2

0910808195
ref: 2

BOLT,STUD

€ 4.00

3

0910808184
ref: 3

BOLT,STUD(8X167)

€ 4.00

4

014210625B
ref: 4

BOLT,STUD

€ 2.50

5

083161006B
ref: 5

NUT

€ 2.50

6

1124142A10
ref: 6

GASKET,CYLINDER (NAS)

€ 4.00

7

0421111149
ref: 7

PIN

€ 2.00
