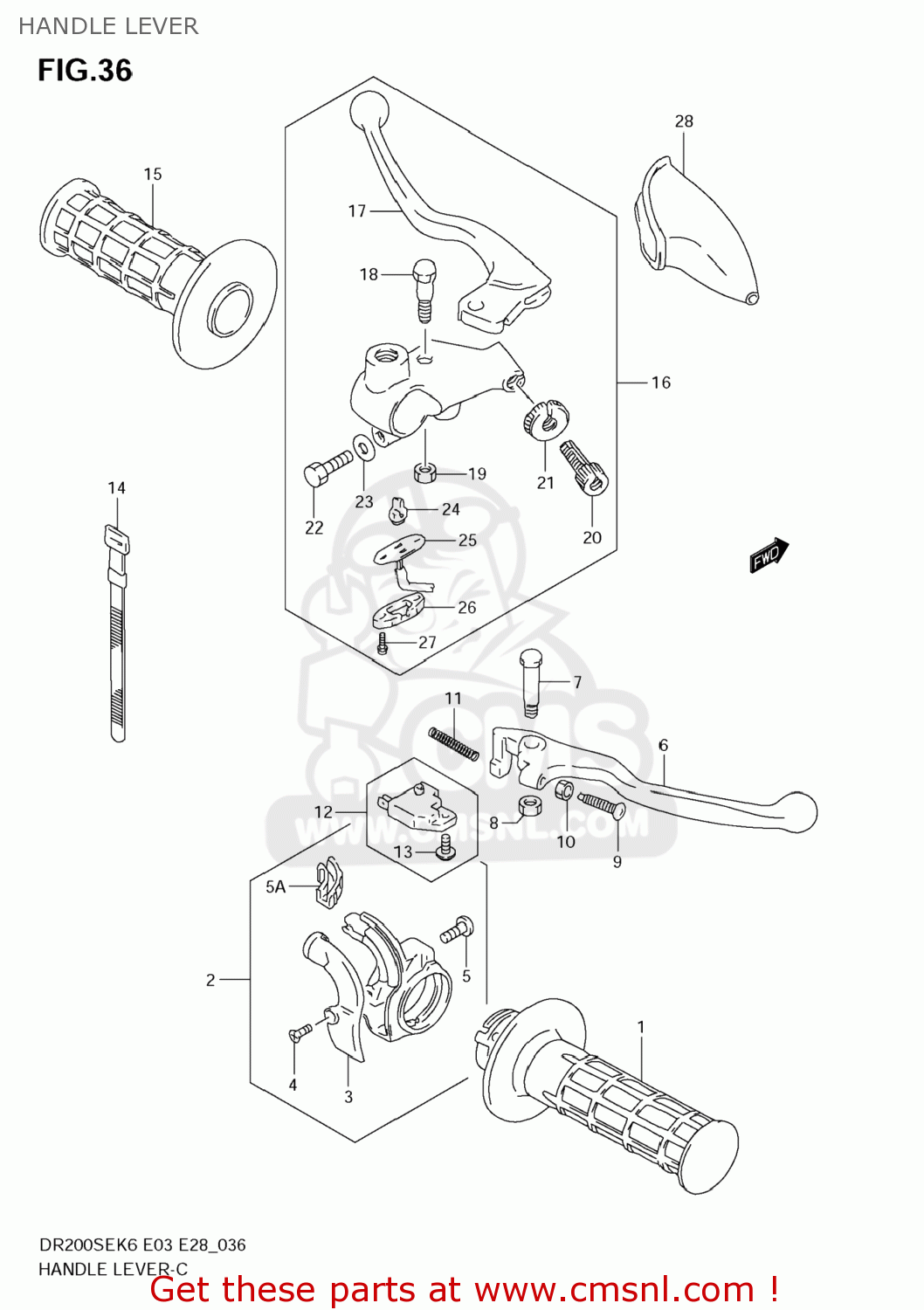

HANDLE LEVER

ref

part #

description

quantity

1

5711014D00
ref: 1

GRIP,THROTTLE

€ 25.50

2

5710013601
ref: 2

CASE ASSY,THROTTLE

€ 34.00

3

5712913601
ref: 3

COVER,THROTTLE CASE

€ 7.00

4

021220410B
ref: 4

SCREW

€ 2.50

5

0211205167
ref: 5

SCREW

€ 2.50

5A

5712213600
ref: 5A

GUIDE PIECE,THROTTLE

€ 7.50

6

5742103D00
ref: 6

LEVER,BRAKE

€ 14.50

7

5743114500
ref: 7

BOLT,BRAKE LEVER

€ 4.00

8

083192106A
ref: 8

NUT

€ 2.00

9

5743114511
ref: 9

BOLT,ADJUST

€ 3.50

10

083100005B
ref: 10
08310-0005A

NUT

€ 2.50

11

5731814502
ref: 11

SPRING,RETURN

€ 3.00

12

5746017C11
ref: 12
57460-14J01

SWITCH ASSY,ST

€ 32.50

13

5746517C00
ref: 13

SCREW

€ 1.50

14

0940712402
ref: 14

CLAMP(L:120)

€ 3.00

15

5721127C00
ref: 15

GRIP,L

€ 11.00

16

5750044AD0
ref: 16

LEVER ASSEMBLY,CLUTCH

€ 71.50

17

5762015D11
ref: 17

LEVER,CLUTCH

€ 26.00

18

5743111013
ref: 18

BOLT,LEVER PIVOT

€ 6.00

19

083192106A
ref: 19

NUT

€ 2.00

20

5744111010
ref: 20

ADJUSTER,CABLE

€ 8.00

21

5744244B00
ref: 21

NUT,LOCK

€ 11.50

22

0150006207
ref: 22

BOLT

€ 2.00

23

0832201067
ref: 23

WASHER

€ 2.00

24

5746518601
ref: 24

CONTACT,SWITCH

€ 4.50

25

5754149100
ref: 25

HARNESS ASSY,WIRE

€ 5.00

26

5748133010
ref: 26

COVER,FR BK TERMINAL BASE

€ 19.50

27

5748449110
ref: 27

SCREW

€ 1.50

28

5734140002
ref: 28

COVER,CLUTCH LEVER

€ 7.50

all assemblies
