STAND
DR200SE 2006 (K6) USA (E03)

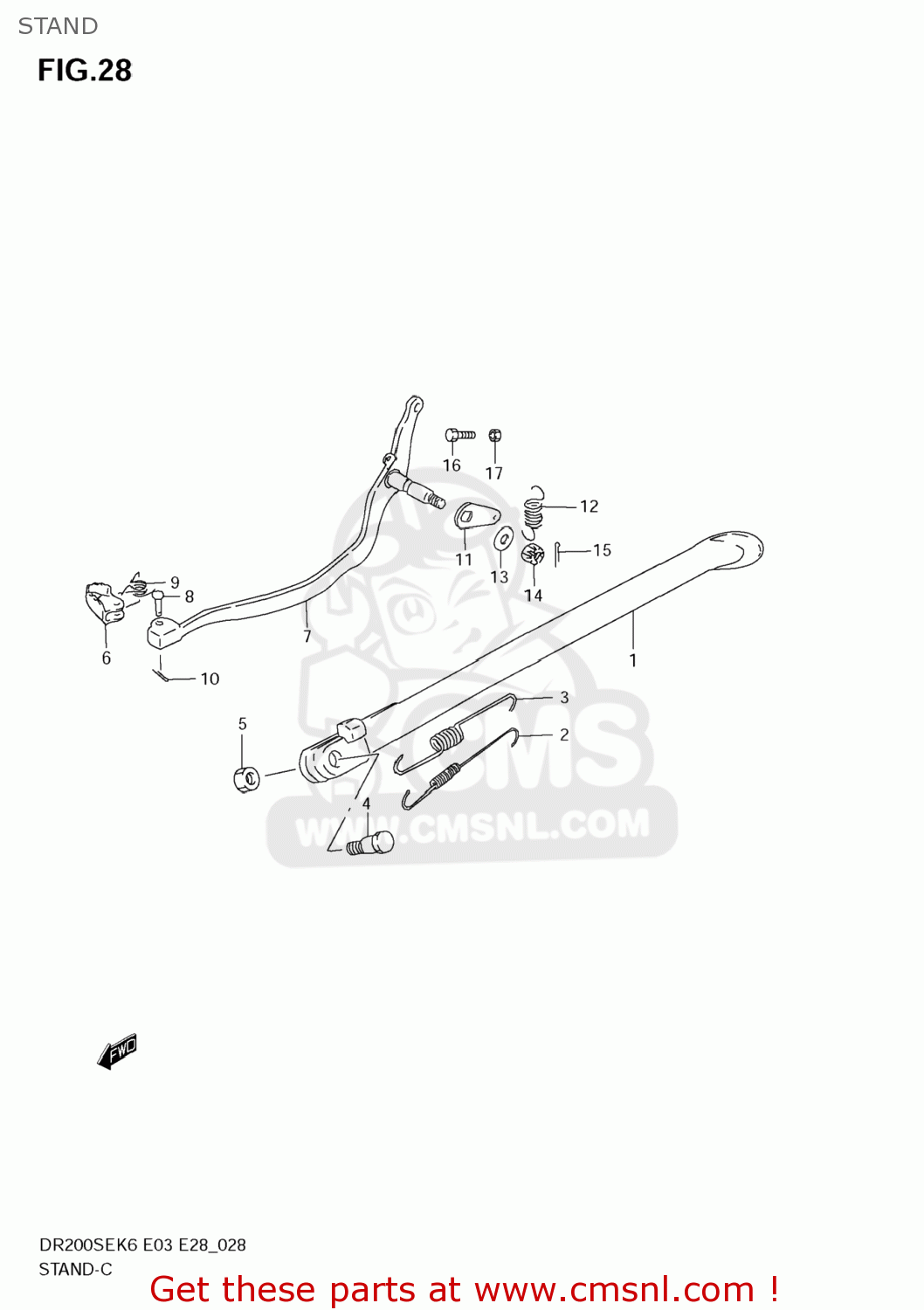

Stand diagram DR200SE 2006 (K6) USA (E03)
STAND DR200SE 2006 (K6) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4231044A33019
ref: 1
STAND,PROP(BLACK)
€ 48.00
2
0944312035
ref: 2
SPRING
€ 6.00
3
0944320003
ref: 3
SPRING
€ 9.00
4
0911110047
ref: 4
BOLT(10X30)
€ 4.50
5
0915910097
ref: 5
NUT
€ 5.00
6
4311014130
ref: 6
PEDAL,BRAKE
€ 6.00
7
4312044A12
ref: 7
ARM,BRAKE PEDAL
€ 34.00
8
0920006038
ref: 8
PIN
€ 2.00
9
0944411005
ref: 9
SPRING
€ 3.00
10
041112015A
ref: 10
PIN
€ 1.50
11
4312838200
ref: 11
ARM,BRAKE RETURN SPRING
€ 3.50
12
0944314002
ref: 12
SPRING
€ 2.50
13
0821108202
ref: 13
WASHER
€ 1.50
14
083144008B
ref: 14
NUT
€ 2.50
15
041112020A
ref: 15
PIN
€ 1.50
16
0910006009
ref: 16
BOLT(6X23)
€ 1.50
17
083100006B
ref: 17
NUT
€ 2.00
