STARTER CLUTCH

DR200SE 2006 (K6) USA (E03)

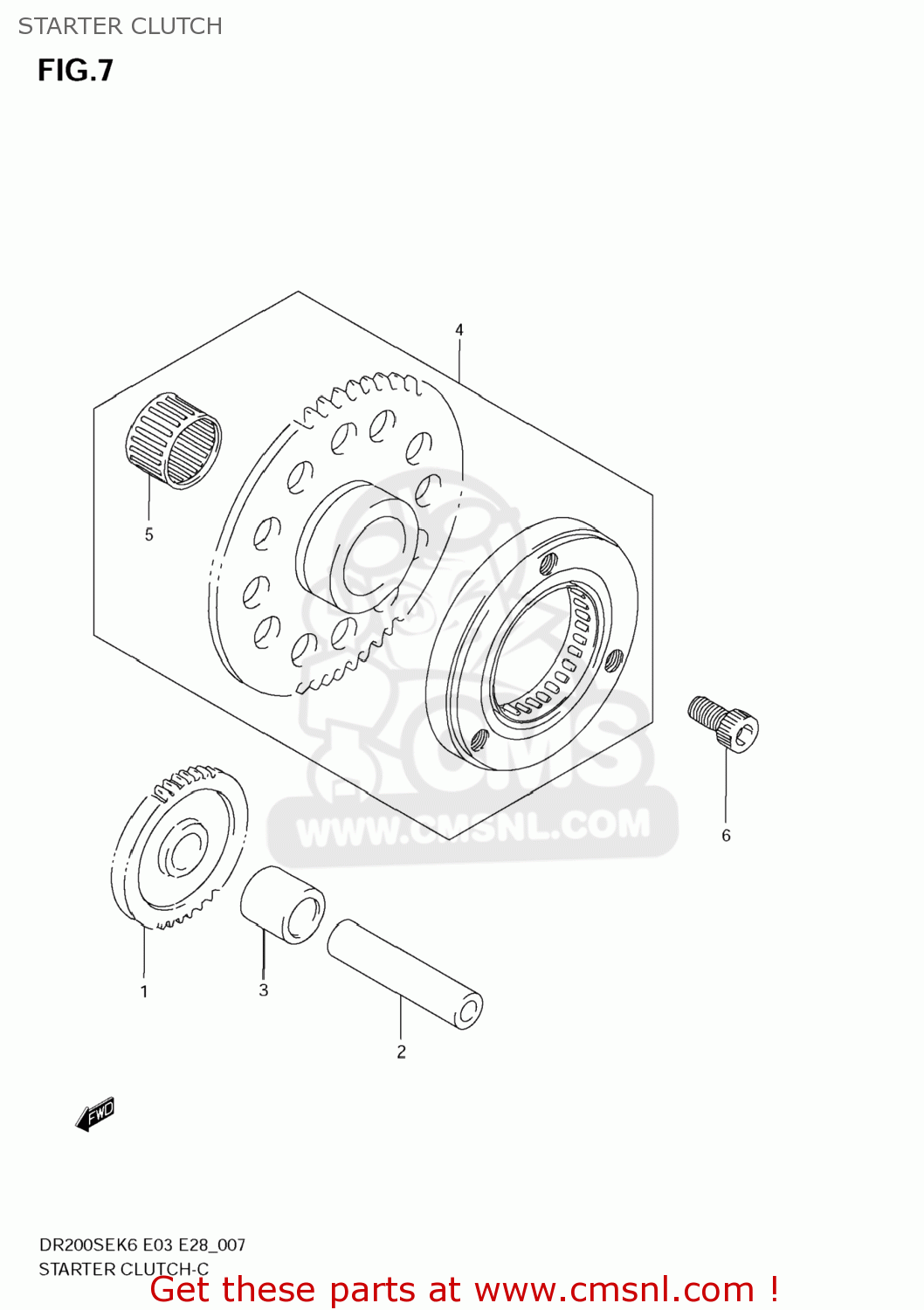

Starter clutch diagram DR200SE 2006 (K6) USA (E03)

STARTER CLUTCH DR200SE 2006 (K6) USA (E03)

STARTER CLUTCH DR200SE 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1261142A03
ref: 1

GEAR,STARTER IDLE

€ 40.50

2

0920613003
ref: 2

PIN(7.4X13X56)

€ 9.00

3

0918013006
ref: 3

SPACER(13X19X19)

€ 3.50

4

1260035843
ref: 4

CLUTCH SET,STARTER

€ 125.50

5

0926322031
ref: 5

BEARING(22X28X16)

€ 18.00

6

0910608095
ref: 6

BOLT(8X16)

€ 2.50
