CRANKCASE
DR200SE 2006 (K6) USA (E03)

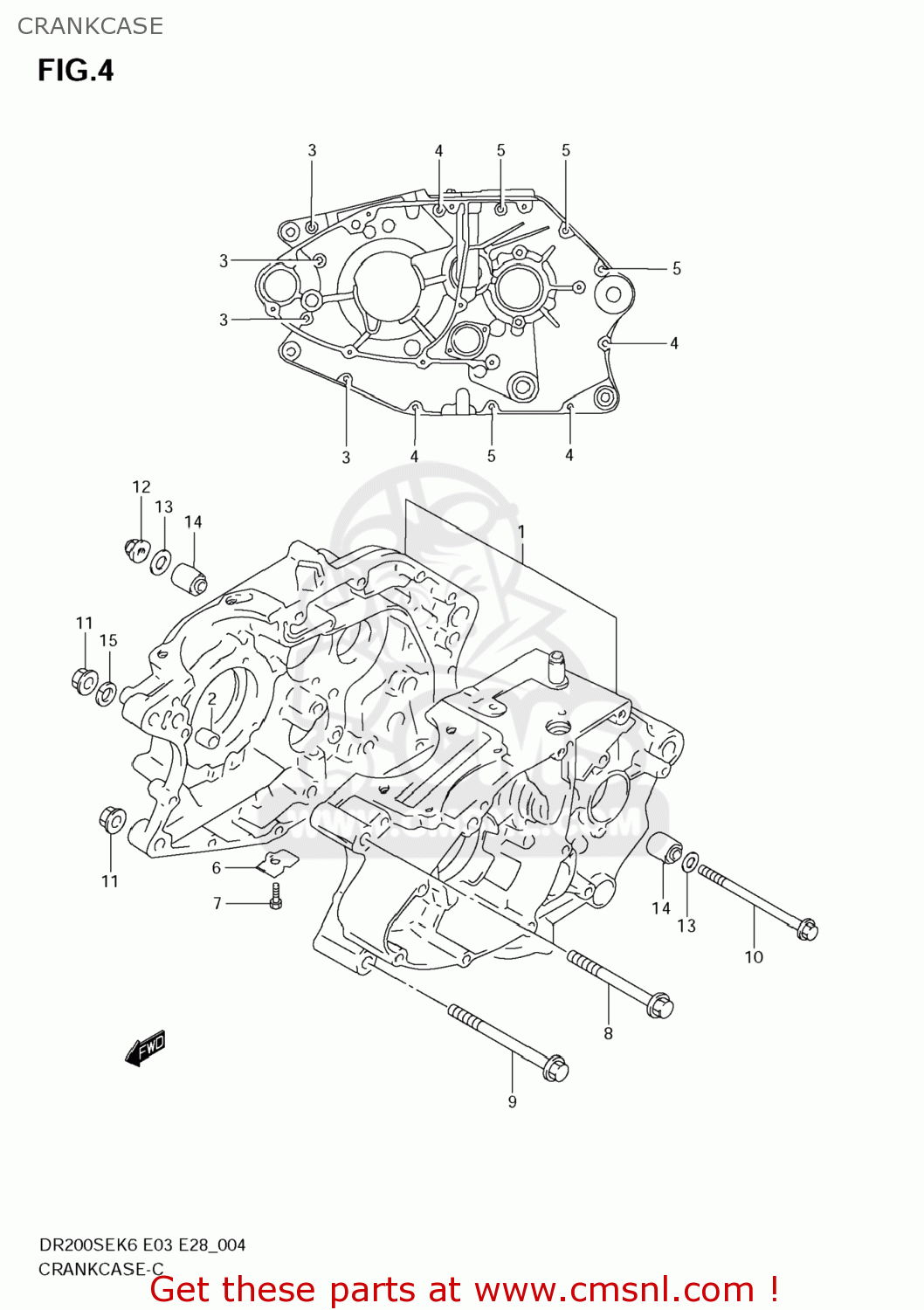

Crankcase diagram DR200SE 2006 (K6) USA (E03)
CRANKCASE DR200SE 2006 (K6) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1130042A24
ref: 1
CRANKCASE ASSY
€ 605.50
2
0421113189
ref: 2
PIN
€ 2.50
3
015470655B
ref: 3
BOLT
€ 3.00
4
015470660B
ref: 4
BOLT
€ 3.50
5
0154706757
ref: 5
BOLT
€ 2.50
6
1131905200
ref: 6
PLATE,OIL GALLERY PLUG
€ 2.50
7
015000610B
ref: 7
BOLT
€ 2.00
8
0910310370
ref: 8
BOLT(10X80)
€ 4.00
9
0910310374
ref: 9
BOLT(10X90)
€ 3.00
10
0910308138
ref: 10
BOLT(8X115)
€ 5.00
11
0915910115
ref: 11
NUT
€ 4.00
12
083193108B
ref: 12
NUT
€ 2.50
13
0821208182
ref: 13
WASHER
€ 0.00
14
0931908032
ref: 14
BUSH(8.4X18X16)
€ 8.50
15
083210110B
ref: 15
WASHER,LOCK
€ 3.00
