STARTING MOTOR
DR200SE 2006 (K6) USA (E03)

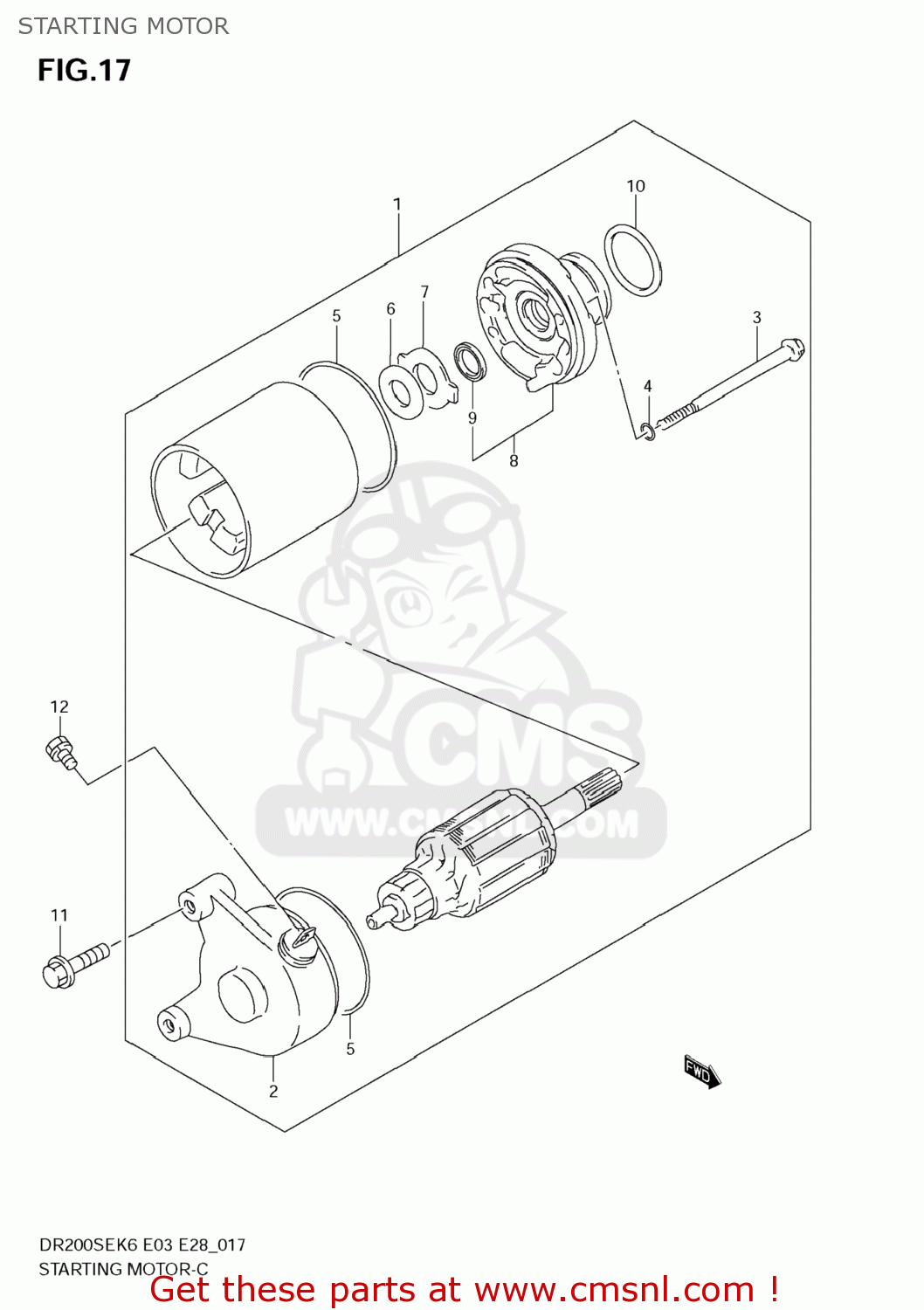

Starting motor diagram DR200SE 2006 (K6) USA (E03)
STARTING MOTOR DR200SE 2006 (K6) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3110042A20
ref: 1
MOTOR ASSY,STARTING
€ 526.50
2
3117542A20
ref: 2
FRAME ASSY,COMMUTATOR END
€ 0.00
3
3128108F00
ref: 3
BOLT
€ 4.50
4
3115608F00
ref: 4
O RING
€ 3.00
5
3126432C10
ref: 5
O RING
€ 9.00
6
3136138300
ref: 6
SHIM
€ 1.50
7
3136132C10
ref: 7
PLATE,LOCK
€ 2.50
8
3115008F00
ref: 8
BRACKET
€ 87.50
9
3115349210
ref: 9
SEAL,OIL
€ 15.00
10
0928024003
ref: 10
O RING(D:3,ID:24.5)
€ 2.00
11
015470630B
ref: 11
BOLT
€ 3.00
12
0913705004
ref: 12
SCREW(5X8)
€ 2.00
