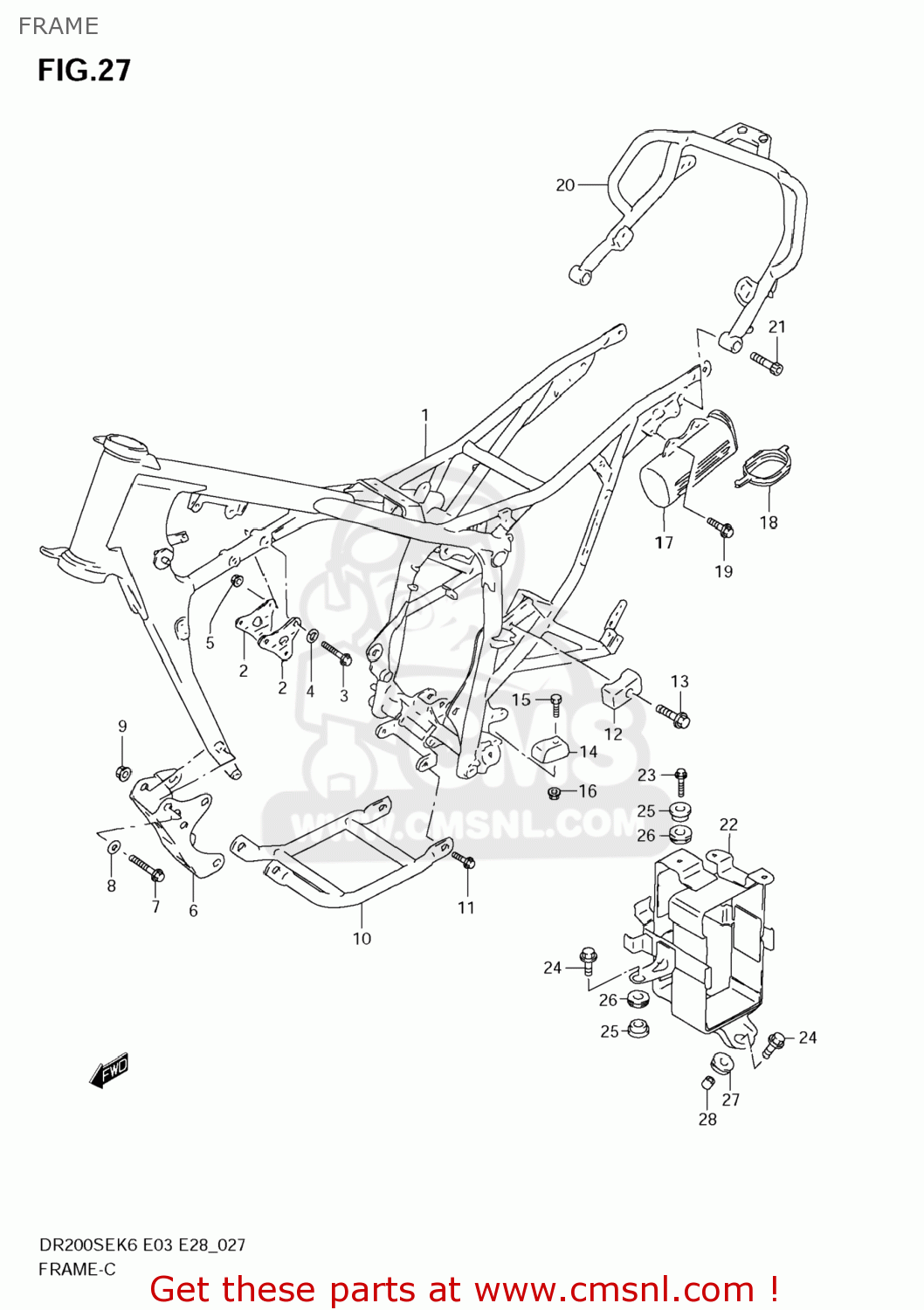

FRAME

ref

part #

description

quantity

1-1

4110044AD1YU8
ref: 1-1

FRAME (GRAY)

€ 731.00

1-2

4110044AL0YU8
ref: 1-2

FRAME(GRAY)

€ 1,171.50

1-3

4110044AP0YU8
ref: 1-3

FRAME(GRAY)

€ 1,171.50

2

4199142A00291
ref: 2

PLATE,ENGINE MOUNT UPR

€ 15.00

3

0910308332
ref: 3

BOLT(8X53)

€ 3.50

4

083210108B
ref: 4

WASHER,LOCK

€ 2.50

5

083193108B
ref: 5

NUT

€ 2.50

6

4199244AA1YU8
ref: 6

PLATE,ENG MTG LWR

€ 0.00

7

0910308328
ref: 7

BOLT(8X65)

€ 4.00

8

083210108B
ref: 8

WASHER,LOCK

€ 2.50

9

083193108B
ref: 9

NUT

€ 2.50

10

4251044AA0YU8
ref: 10

PROTECTOR,ENGINE(SILVER)

€ 0.00

11

015511016B
ref: 11

BOLT

€ 0.00

12

4391144A00
ref: 12

GUIDE,CH CONTROL UPR

€ 12.00

13

015800635B
ref: 13

BOLT

€ 3.50

14

4391242AA0
ref: 14

GUIDE,CHAIN CONTROL LWR

€ 12.50

15

0912806006
ref: 15
09128-06057

BOLT(6X20)

€ 2.00

16

083193106B
ref: 16

NUT

€ 2.50

17

4155138200
ref: 17
41551-38201

HOLDER,TOOL

€ 17.00

18

4155237210
ref: 18

CAP,HOLDER

€ 5.00

19-1

0911606165
ref: 19-1

BOLT(6X16)

€ 2.50

19-2

0911606211
ref: 19-2

BOLT(6X20)

€ 0.00

20

4398044AB2YU8
ref: 20

GRIP,RR

€ 0.00

21

0910608105
ref: 21

BOLT(8X30)

€ 3.00

22

4154044AA0
ref: 22

HOLDER,BATTERY

€ 0.00

23

015500620B
ref: 23

BOLT

€ 2.50

24-1

0911606131
ref: 24-1

BOLT(6X25)

€ 2.00

24-2

0911606047
ref: 24-2

BOLT(6X25)

€ 2.00

25

0916906065
ref: 25

WASHER

€ 3.50

26

0932008021
ref: 26

CUSHION

€ 4.00

27

0932010501
ref: 27

CUSHION

€ 5.50

28

0918006285
ref: 28

SPACER(6.5X10X9)

€ 2.50
