DR350 1995 (S) USA (E03)

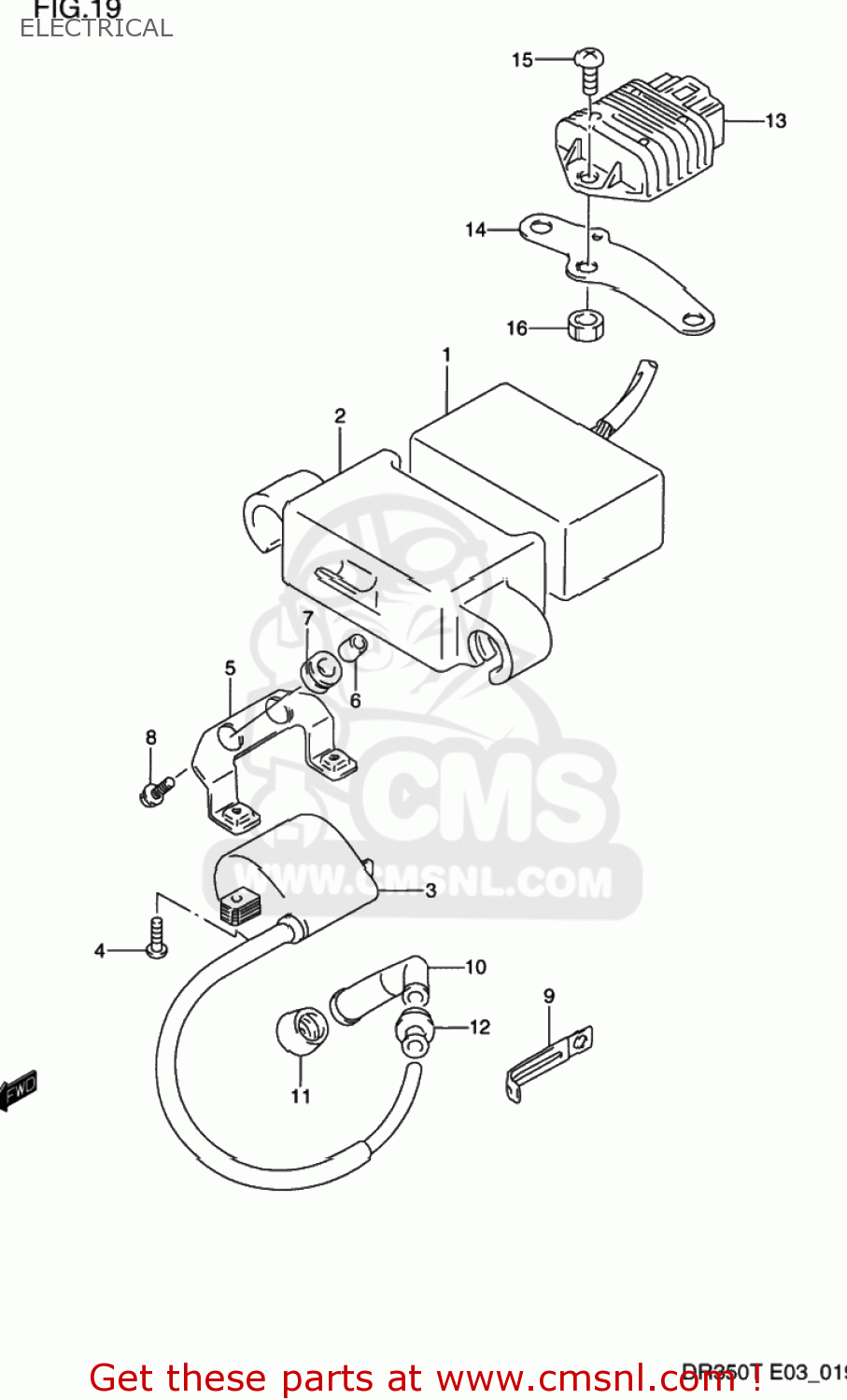

Electrical diagram DR350 1995 (S) USA (E03)
ELECTRICAL DR350 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3290014D00
ref: 1-1
CDI UNIT
€ 464.00
1-2
3290014D30
ref: 1-2
CDI UNIT
€ 501.00
2
3298014D00
ref: 2
CUSHION,CDI UNIT
€ 15.50
3
3341014D00
ref: 3
COIL ASSY,IGNITION
€ 92.50
4-1
0211206206
ref: 4-1
02112-0620A
SCREW
€ 2.00
4-2
0211206203
ref: 4-2
02112-0620A
SCREW, 6X20
€ 2.00
5
3341614D00
ref: 5
BRACKET,IGNITION COIL
€ 7.00
6
0918006027
ref: 6
09180-06258
SPACER (6.3X9.1X6.7)
€ 2.00
7
0932009036
ref: 7
CUSHION
€ 4.00
8-1
0111406166
ref: 8-1
BOLT
€ 2.50
8-2
0156006163
ref: 8-2
01560-0616A
BOLT
€ 2.00
9-1
0940406422
ref: 9-1
09404-06429
CLAMP
€ 2.00
9-2
0940406429
ref: 9-2
CLAMP(L:45)
€ 2.00
10
3351043010
ref: 10
CAP,SPARK PLUG
€ 10.00
11-1
3354124510
ref: 11-1
33541-47D00
SEAL,SPARK PLUG CAP
€ 5.50
11-2
3354147D00
ref: 11-2
SEAL,SPARK PLUG
€ 5.50
12
3354238B00
ref: 12
SEAL,HIGH TENSION CORD
€ 4.00
13
3250014D00
ref: 13
REGULATOR ASSY
€ 99.00
14
3251114D00
ref: 14
BRACKET,REGULATOR
€ 0.00
15-1
0214206126
ref: 15-1
02142-0612A
SCREW
€ 1.50
15-2
0214206123
ref: 15-2
02142-0612A
SCREW 6X12
€ 1.50
16-1
0831012066
ref: 16-1
08310-0006A
NUT
€ 1.50
16-2
0831000063
ref: 16-2
08310-0006A
NUT 6MM
€ 1.50
