TRANSMISSION (E.NO.106033~)
DR350 1995 (S) USA (E03)

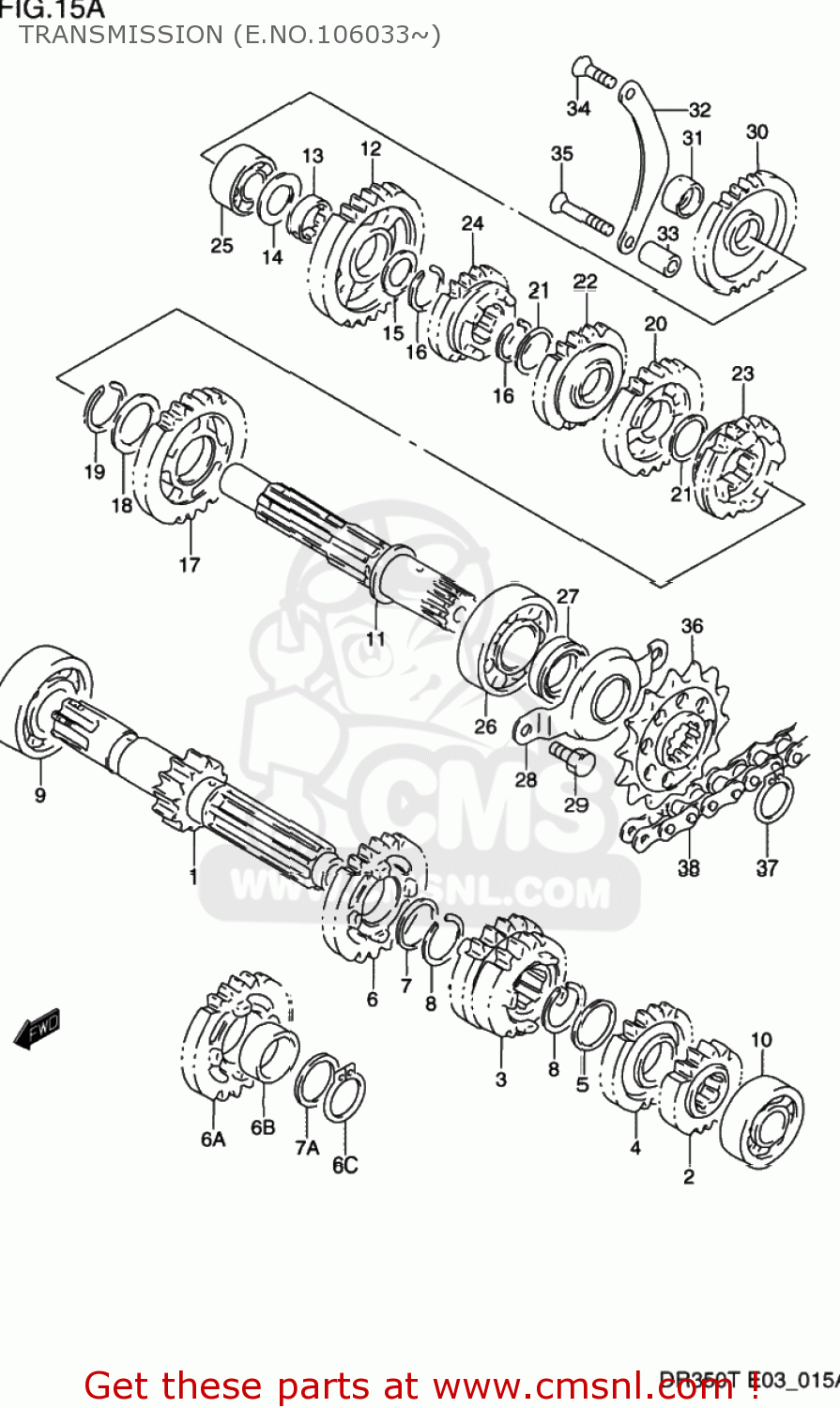

Transmission (e.no.106033~) diagram DR350 1995 (S) USA (E03)
TRANSMISSION (E.NO.106033~) DR350 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
2412014D01
ref: 1-1
24120-14D03
SHAFT,COUNTER
€ 117.00
1-2
2412014D03
ref: 1-2
SHAFT,COUNTER(NT:12)
€ 117.00
2
2422114D00
ref: 2
24221-14D01
GEAR,SECOND DRIVE (NT:15)
€ 88.50
3
2423114D00
ref: 3
GEAR,3RD & 4TH DRIVE(NT:18/18)
€ 108.00
4
2425114D00
ref: 4
GEAR,5TH DRIVE(NT:21)
€ 84.50
5
0821122261
ref: 5
09181-22111
WASHER
€ 3.00
6
2426014D00
ref: 6
GEAR COMP,SIXTH DRIVE
€ 72.00
6A
2426114D02
ref: 6A
GEAR,6TH DRIVE(NT:23)
€ 83.00
6B
0930022008
ref: 6B
BUSH(22X26X9)
€ 10.50
6C
0833131226
ref: 6C
08331-3122A
CIRCLIP
€ 2.00
7
0821122281
ref: 7
09181-22139
SHIM
€ 4.00
7A
0821122301
ref: 7A
09181-22167
WASHER,THRUST
€ 3.00
8-1
0938022006
ref: 8-1
CIRCLIP
€ 3.00
8-2
0938022006
ref: 8-2
CIRCLIP
€ 3.00
9-1
0926220065
ref: 9-1
09262-20145
BEARING
€ 24.00
9-2
0926220116
ref: 9-2
09262-20145
BEARING 20X52X15
€ 24.00
10-1
0926217018
ref: 10-1
09262-17027
BEARING
€ 25.00
10-2
0926217027
ref: 10-2
BEARING(17X40X12)
€ 25.00
10-3
0926217018
ref: 10-3
09262-17027
BEARING
€ 25.00
11-1
2413014D11
ref: 11-1
24130-14D14
SHAFT,DRIVE
€ 179.00
11-2
2413014D13
ref: 11-2
24130-14D14
SHAFT,DRIVE
€ 179.00
11-3
2413014D14
ref: 11-3
SHAFT,DRIVE
€ 179.00
12-1
2431114D00
ref: 12-1
24311-14D01
GEAR,FIRST DRIVEN (NT:29)
€ 61.50
12-2
2431115D00
ref: 12-2
GEAR,1ST DRIVEN(NT:30)
€ 67.50
13
2431214D00
ref: 13
BUSH,1ST DRIVEN GEAR
€ 15.00
14
0821117322
ref: 14
WASHER
€ 2.50
15
0821122301
ref: 15
09181-22167
WASHER,THRUST
€ 3.00
16
0938022006
ref: 16
CIRCLIP
€ 3.00
17
2432014D00
ref: 17
GEAR,2ND DRIVEN(NT:26)
€ 87.50
18
0821125341
ref: 18
09181-25167
WASHER
€ 3.50
19
0938025010
ref: 19
CIRCLIP
€ 3.00
20-1
2433114D00
ref: 20-1
24331-14D01
GEAR,THIRD DRIVEN
€ 87.50
20-2
2433114D01
ref: 20-2
GEAR,3RD DRIVEN(NT:24)
€ 87.50
21
0821122281
ref: 21
09181-22139
SHIM
€ 4.00
22
2434114D00
ref: 22
GEAR,4TH DRIVEN(NT:20)
€ 80.50
23
2435114D00
ref: 23
24351-14D01
GEAR,FIFTH DRIVEN (NT:20)
€ 95.00
24-1
2436114D00
ref: 24-1
24361-14D01
GEAR,SIXTH DRIVEN
€ 95.50
24-2
2436114D01
ref: 24-2
GEAR,6TH DRIVEN(NT:19)
€ 95.50
25
0926717003
ref: 25
BEARING(17X40X17.5)
€ 57.00
26
0926222024
ref: 26
BEARING(22X56X16)
€ 40.00
27
0928322025
ref: 27
SEAL,OIL(22X34X7)
€ 12.50
28
2475114D00
ref: 28
RETAINER,DRIVE SHAFT OIL SEAL
€ 8.00
29-1
0110706126
ref: 29-1
01500-0612A
BOLT
€ 2.00
29-2
0150006123
ref: 29-2
01500-0612A
BOLT
€ 2.00
30
2626114D10
ref: 30
GEAR,KICK STARTER IDLE(NT:27)
€ 58.50
31
2626214D00
ref: 31
BUSH,KICK STARTER IDLE GEAR
€ 11.00
32
2626414D00
ref: 32
RETAINER,KICK IDLE GEAR
€ 10.00
33
0918006229
ref: 33
09180-06314
SPACER (6.5X12X21)
€ 2.50
34-1
0212206167
ref: 34-1
SCREW
€ 2.00
34-2
0212206163
ref: 34-2
02122-0616A
SCREW ,6X16
€ 2.00
35-1
0212206356
ref: 35-1
02122-0635B
SCREW
€ 2.00
35-2
0212206353
ref: 35-2
02122-0635B
SCREW
€ 2.00
36-1
2751114300
ref: 36-1
27511-47D00
SPROCKET,ENGINE
€ 23.00
36-2
2751114320
ref: 36-2
SPROCKET(NT:15)
€ 20.00
37
0938022012
ref: 37
CIRCLIP
€ 3.50
38-1
2760013A60110
ref: 38-1
27600-14A10-110
CHAIN ASSEMBLY,DRIVE
€ 107.50
38-2
2760014A10110
ref: 38-2
CHAIN(DID520VC5,110LE)
€ 107.50
