HANDLEBAR
DR350 1995 (S) USA (E03)

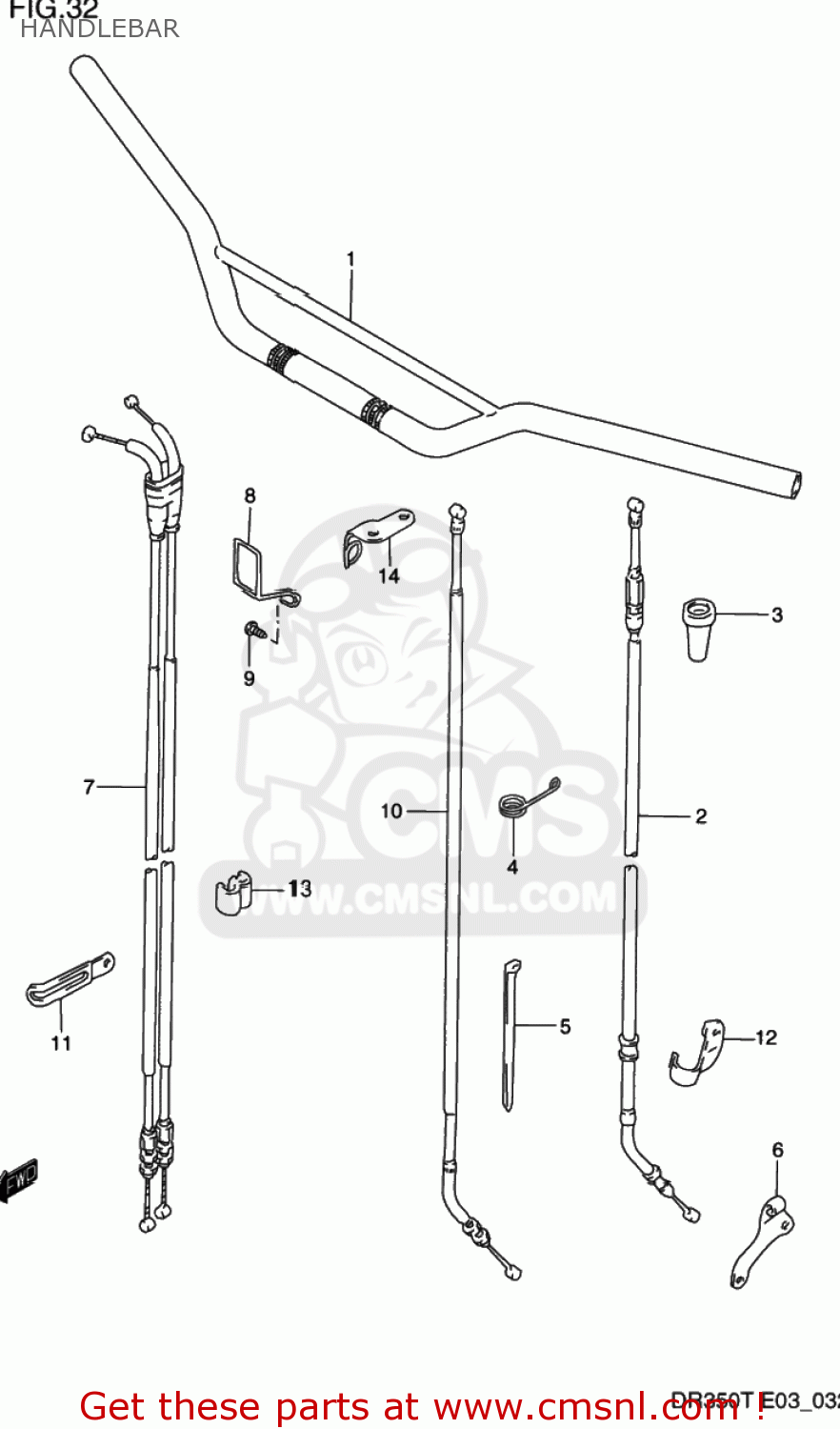

Handlebar diagram DR350 1995 (S) USA (E03)
HANDLEBAR DR350 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
5611014D00291
ref: 1-1
56110-14D01-291
HANDLEBAR
€ 87.00
1-2
5611014D01291
ref: 1-2
HANDLEBAR
€ 87.00
2
5820014D00
ref: 2
58200-14D01
CABLE ASSEMBLY,CLUTCH
€ 63.50
3
5827331000
ref: 3
BOOT,CLUTCH CABLE
€ 2.50
4
5829415D00
ref: 4
GUIDE,CLUTCH CABLE
€ 6.50
5
0940714407
ref: 5
CLAMP(L:145)
€ 4.00
6
5863414D00
ref: 6
STOPPER,CLUTCH CABLE
€ 4.00
7-1
5830114D01
ref: 7-1
58301-14D02
CABLE SET,THROTTLE
€ 82.00
7-2
5830114D02
ref: 7-2
CABLE SET,THROTTLE
€ 82.00
8
5829414D00
ref: 8
GUIDE,CABLE
€ 7.50
9-1
0211216125
ref: 9-1
02112-1612B
SCREW
€ 2.00
9-2
0214206123
ref: 9-2
02142-0612A
SCREW 6X12
€ 2.00
9-3
0155006103
ref: 9-3
01550-0610A
BOLT
€ 2.50
10
5890014D10
ref: 10
CABLE ASSY,DECOMP
€ 34.50
11-1
0940405404
ref: 11-1
09404-06432
CLAMP
€ 2.50
11-2
0940406431
ref: 11-2
09404-06432
CLAMP(L:65)
€ 2.50
12
5828514D01
ref: 12
CLAMP,CLUTCH CABLE
€ 7.00
13
0940800066
ref: 13
CLIP
€ 1.50
14
5862015D10
ref: 14
GUIDE,CABLE
€ 6.50
