TRIP METER
DR350 1995 (S) USA (E03)

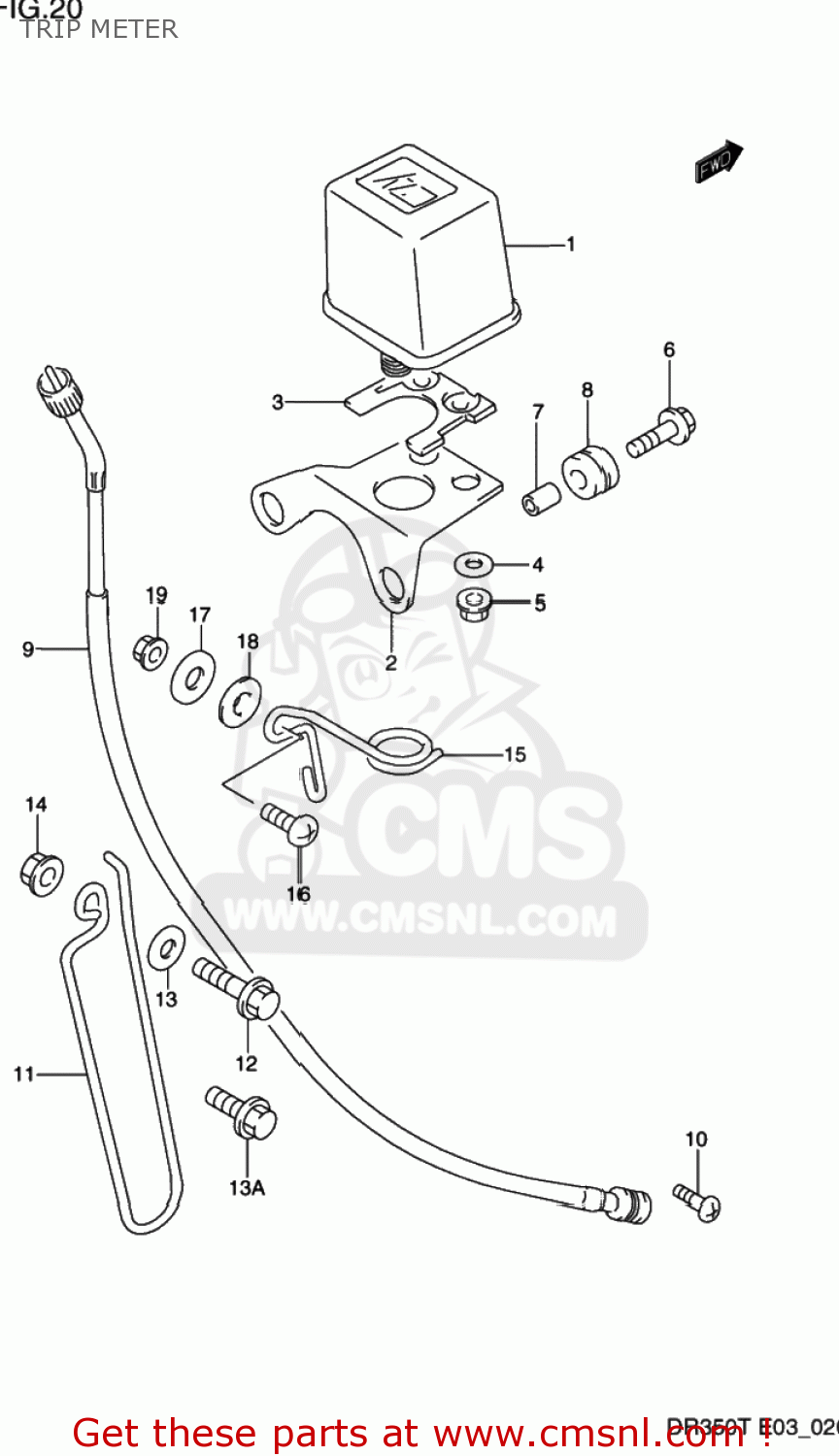

Trip meter diagram DR350 1995 (S) USA (E03)
TRIP METER DR350 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3472140610
ref: 1-1
34721-05D20
TRIP METER
€ 130.00
1-2
3472105D20
ref: 1-2
TRIP METER
€ 130.00
2
3472514D00
ref: 2
BRACKET
€ 41.00
3-1
3472641410
ref: 3-1
CUSHION,TRIPMETER
€ 4.00
3-2
3472605D20
ref: 3-2
CUSHION
€ 4.50
4-1
3472741410
ref: 4-1
09160-04022
WASHER,METER
€ 1.50
4-2
0916004017
ref: 4-2
09160-04022
WASHER (4.3X13X0.80)
€ 1.50
5-1
0831011047
ref: 5-1
08310-00047
NUT
€ 1.50
5-2
0831000047
ref: 5-2
NUT
€ 1.50
6
0911806086
ref: 6
BOLT(6X25)
€ 3.00
7
0918006044
ref: 7
09180-06248
SPACER (6.1X8X9.5)
€ 2.50
8
0932008048
ref: 8
09320-08501
CUSHION
€ 3.00
9-1
3491014D00
ref: 9-1
34910-14D01
CABLE ASSEMBLY,SPEEDOMETER
€ 60.00
9-2
3491014D01
ref: 9-2
CABLE ASSY,SPEEDOMETER
€ 60.00
10-1
0211205164
ref: 10-1
SCREW
€ 1.50
10-2
0211205163
ref: 10-2
02112-0516A
SCREW
€ 1.50
11
3493814D30
ref: 11
GUIDE,METER CABLE NO.2
€ 8.00
12-1
0155006207
ref: 12-1
BOLT
€ 2.00
12-2
0155006203
ref: 12-2
01550-0620A
BOLT
€ 1.50
13A
0911606167
ref: 13A
BOLT(6X20)
€ 2.00
13-1
0916006020
ref: 13-1
09160-06066
WASHER
€ 1.50
13-2
0916006066
ref: 13-2
WASHER(6.5X20X1.6)
€ 1.50
14-1
0915906017
ref: 14-1
08319-31067
NUT
€ 1.50
14-2
0831610063
ref: 14-2
08316-1006B
NUT
€ 2.00
15
3493814D20
ref: 15
34938-14D21
GUIDE,METER CABLE NO.3
€ 6.00
16-1
0214206167
ref: 16-1
SCREW
€ 1.50
16-2
0214206163
ref: 16-2
02142-0616A
SCREW
€ 2.00
17
0916006057
ref: 17
09160-06109
WASHER
€ 1.50
18
0916906053
ref: 18
WASHER
€ 1.50
19-1
0831000067
ref: 19-1
NUT
€ 1.50
19-2
0831000063
ref: 19-2
08310-0006A
NUT 6MM
€ 1.50
