FRONT DAMPER (MODEL L/M/N/P)
DR350 1995 (S) USA (E03)

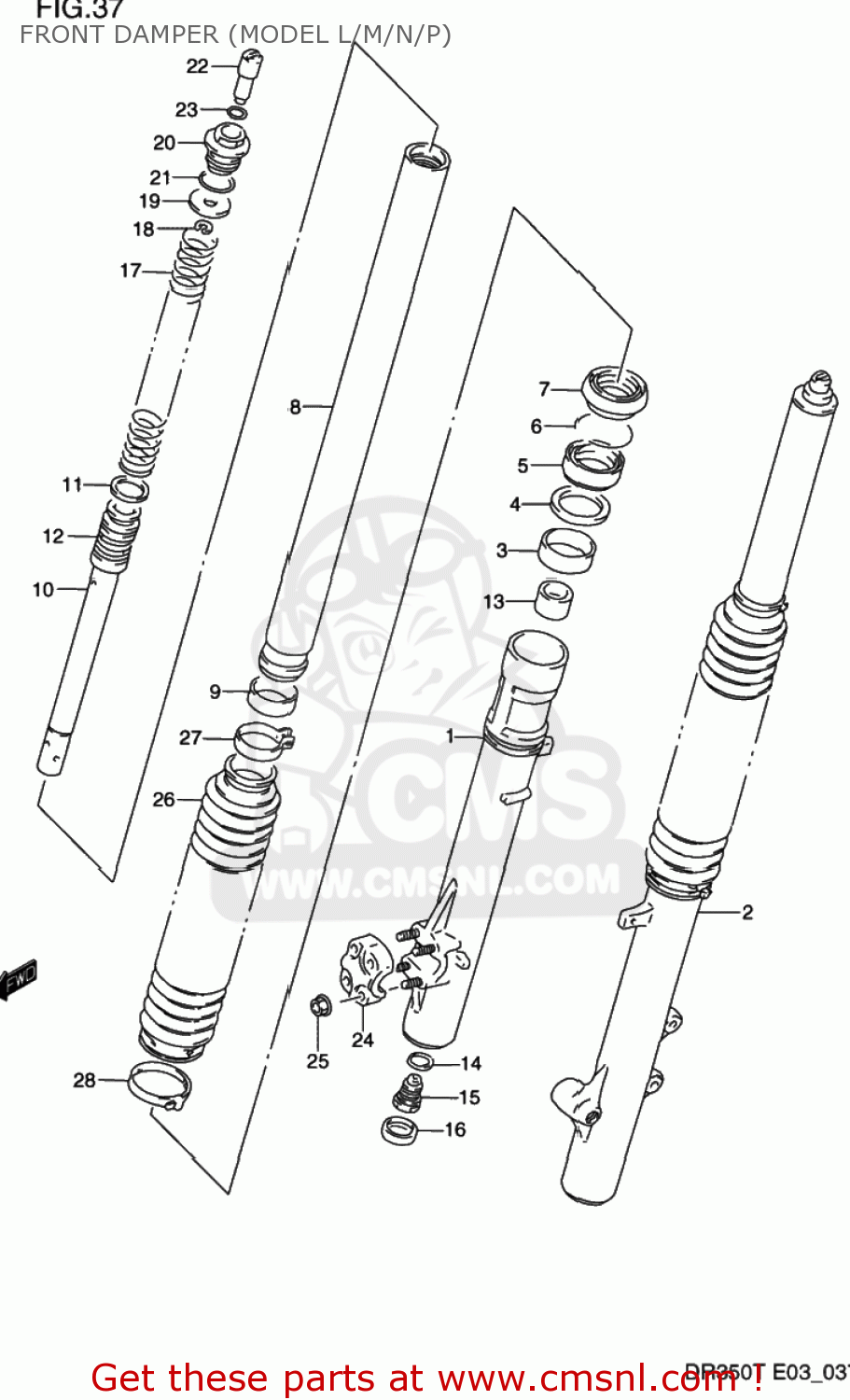

Front damper (model l/m/n/p) diagram DR350 1995 (S) USA (E03)
FRONT DAMPER (MODEL L/M/N/P) DR350 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5110314D00
ref:
DAMPER ASSEMBLY,RIGHT
€ 895.50
5110414D00
ref:
DAMPER ASSEMBLY,LEFT
€ 895.50
1
5113014D00
ref: 1
TUBE,OUTER,R
€ 309.50
2
5114014D00
ref: 2
TUBE,OUTER,L
€ 301.50
3-1
5115217C00
ref: 3-1
51152-07D00
BUSHING,GUIDE
€ 24.50
3-2
5115207D00
ref: 3-2
BUSH,GUIDE
€ 24.50
4
5116817C00
ref: 4
SPACER,SEAL
€ 5.00
5
5115314D00
ref: 5
SEAL,OIL
€ 20.50
6
5155638B00
ref: 6
CIRCLIP,FORK OIL SEAL
€ 4.50
7
5117314D00
ref: 7
DUST SEAL
€ 19.50
8
5111014D00
ref: 8
TUBE,INNER
€ 281.00
9
5112114D00
ref: 9
BUSH,SLIDE
€ 16.50
10
5119014D00
ref: 10
CYLINDER
€ 116.50
11
5119614D00
ref: 11
RING,PISTON
€ 5.50
12
5117714D00
ref: 12
SPRING,REBOUND
€ 8.00
13
5119514D00
ref: 13
PIECE,OIL LOCK
€ 9.50
14
5114814D00
ref: 14
GASKET (NAS)
€ 5.50
15
5117014D00
ref: 15
BOLT,LWR
€ 78.00
16
5151214D00
ref: 16
CAP,LOWER
€ 8.50
17
5117114D00
ref: 17
SPRING,MAIN
€ 62.50
18
5178811420
ref: 18
E RING
€ 4.00
19
5118612C00
ref: 19
SEAT,SPRING
€ 3.50
20
5118914D00
ref: 20
BOLT,FORK
€ 62.50
21
5111717C00
ref: 21
O RING
€ 3.50
22
5118514D00
ref: 22
ADJUSTER,SPRING
€ 33.00
23
5118714D00
ref: 23
09280-14011
O RING
€ 3.50
24
5113214D00
ref: 24
HOLDER,AXLE
€ 30.50
25
5116814D00
ref: 25
NUT,HOLDER
€ 3.50
26
5157114D00163
ref: 26
BOOT
€ 62.50
27
5157514D00
ref: 27
BAND,BOOT UPR
€ 8.50
28
5157614D00
ref: 28
BAND,BOOT LWR
€ 10.00
