WIRING HARNESS

DR350 1995 (S) USA (E03)

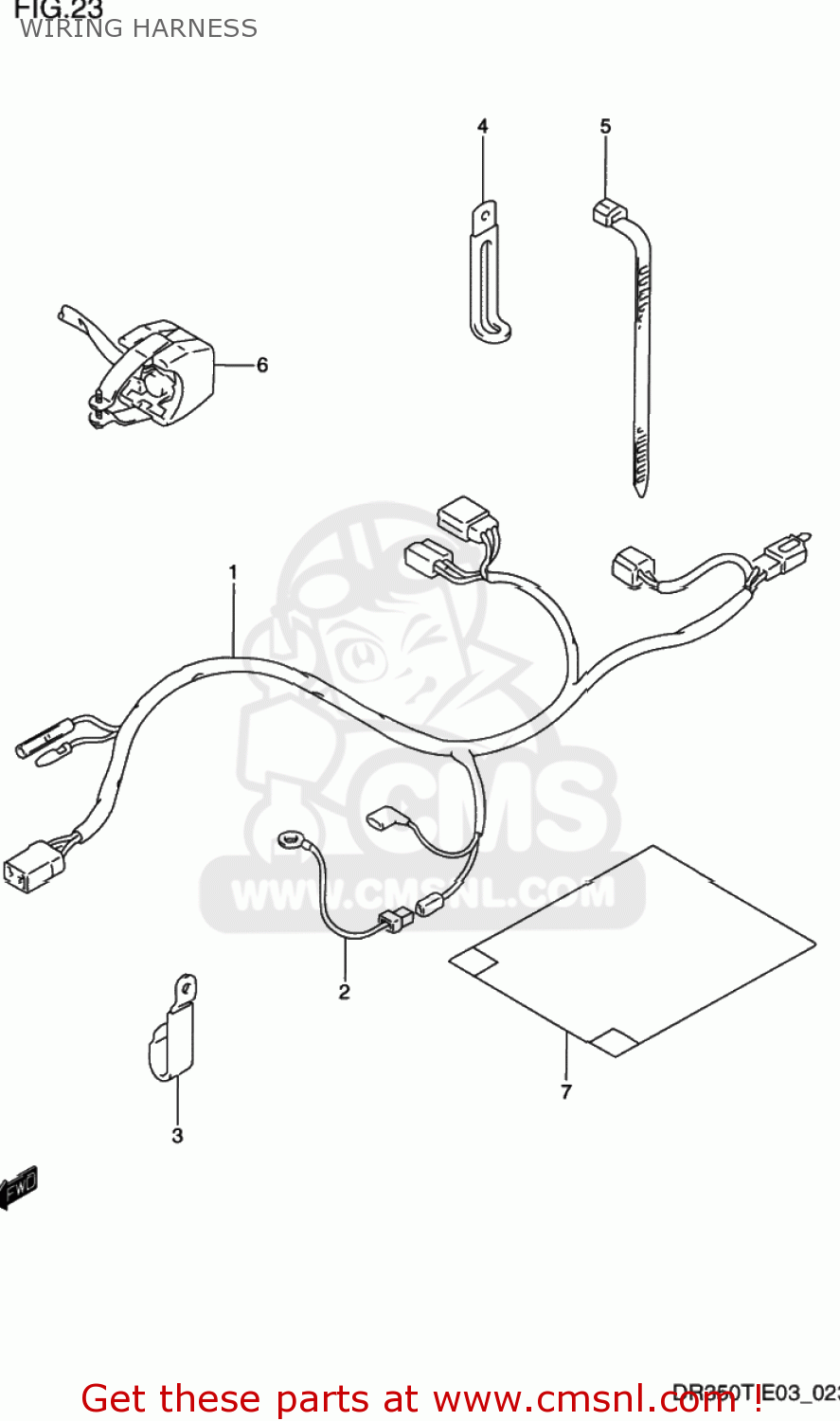

Wiring harness diagram DR350 1995 (S) USA (E03)

WIRING HARNESS DR350 1995 (S) USA (E03)

WIRING HARNESS DR350 1995 (S) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3661014D00
ref: 1

HARNESS,WIRING

€ 73.00

2-1

3685114D00
ref: 2-1
36851-05D00

WIRE

€ 3.00

2-2

3685105D00
ref: 2-2

WIRE,REGULATOR EARTH LEAD

€ 3.00

3

0940306307
ref: 3

CLAMP

€ 4.00

4-1

0940406429
ref: 4-1

CLAMP(L:45)

€ 2.00

4-2

0940406431
ref: 4-2
09404-06432

CLAMP(L:65)

€ 2.00

4-3

0940408420
ref: 4-3

CLAMP(L:120 T:1.0)

€ 3.50

5-1

0940711401
ref: 5-1

CLAMP(L:95)

€ 2.50

5-2

0940714403
ref: 5-2

CLAMP(L:125)

€ 2.50

5-3

0940718403
ref: 5-3
09407-18402

CLAMP L:165

€ 2.00

5-4

0940725401
ref: 5-4

CLAMP(L:235)

€ 4.00

6-1

3782014D00
ref: 6-1
37820-14X50

SWITCH ASSEMBLY

€ 26.00

6-2

3782014X50
ref: 6-2

SWITCH ASSY,ENGINE STOP

€ 26.00

7

3661815D20
ref: 7

COVER,WIRING HARNESS

€ 11.00
