FRONT WHEEL
DR350 1995 (S) USA (E03)

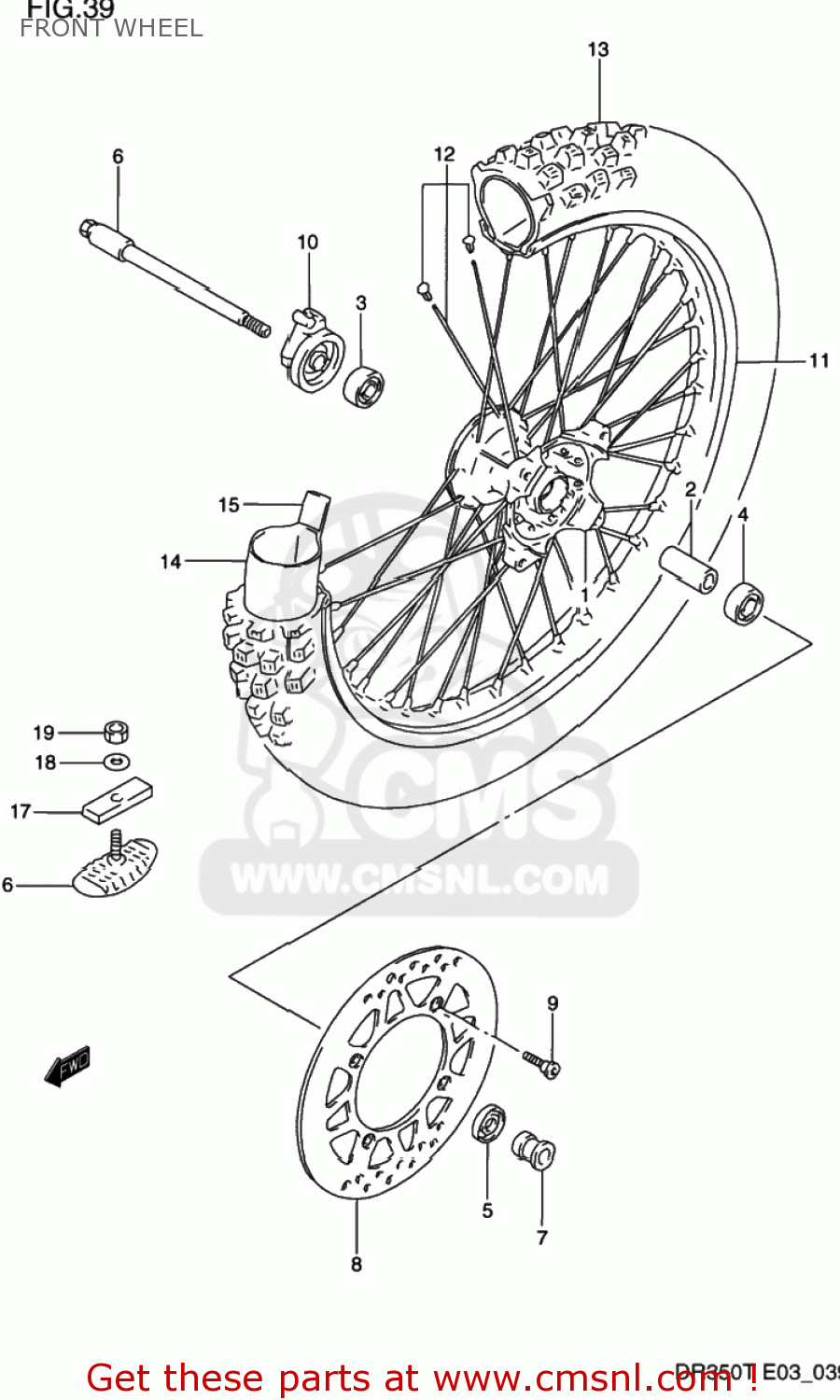

Front wheel diagram DR350 1995 (S) USA (E03)
FRONT WHEEL DR350 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5411115D00
ref: 1
HUB,FR WHEEL
€ 185.50
2
5473144B00
ref: 2
SPACER,FR HUB BEARING
€ 11.50
3
0811362027
ref: 3
BEARING
€ 14.50
4
0812362027
ref: 4
BEARING
€ 14.50
5
0928422004
ref: 5
SEAL,OIL(22X35X5)
€ 8.00
6
5471114D00
ref: 6
AXLE,FR
€ 66.50
7
5475114D00
ref: 7
SPACER,FR AXLE,L
€ 18.50
8
5922114D00
ref: 8
DISC,FR BRAKE
€ 118.50
9-1
5942103A01
ref: 9-1
09106-08155
BOLT,BRAKE DISC
€ 3.00
9-2
5942103A10
ref: 9-2
09106-08155
BOLT,BRAKE DISC
€ 3.00
10
5460014D00
ref: 10
BOX ASSY,SPEEDOMETER GEAR
€ 87.50
11
5531127C00
ref: 11
55311-28C01
RIM,FRONT WHEEL (1.60X2
€ 301.00
12
5532014D00
ref: 12
SPOKE SET,FR WHEEL
€ 68.00
13
5511014D00
ref: 13
TIRE COMP,FRONT 80/100-21
€ 0.00
13
5511014D00
ref: 13
TIRE COMP,FRONT 80/100-21
€ 0.00
14
5520016510
ref: 14
TUBE
€ 32.00
15
5526114540
ref: 15
PROTECTOR,WHEEL INNER
€ 4.50
16
6527014300
ref: 16
STOPPER,BEAD
€ 24.50
17
6527127C00
ref: 17
CUSHION,BEAD STOPPER
€ 5.00
18-1
0832211088
ref: 18-1
08322-01087
WASHER
€ 1.50
18-2
0832201087
ref: 18-2
WASHER
€ 1.50
18-3
0832201083
ref: 18-3
08322-0108A
WASHER
€ 1.50
19-1
0831022088
ref: 19-1
08310-00087
NUT 8MM
€ 1.50
19-2
0831000087
ref: 19-2
NUT
€ 1.50
19-3
0831000083
ref: 19-3
08310-0008A
NUT
€ 1.50
