CRANK BALANCER

DR350SE 1994 (R)

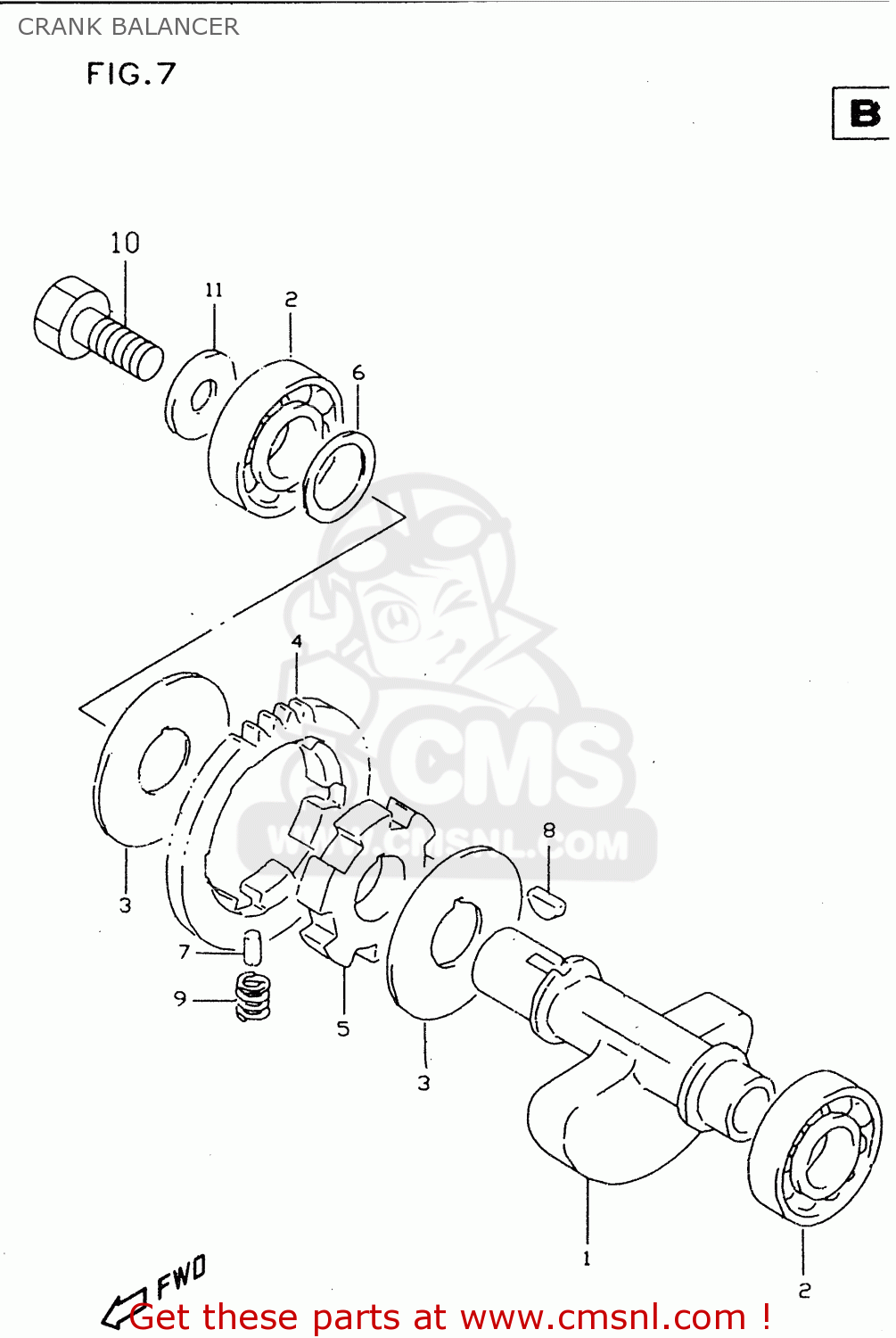

Crank balancer diagram DR350SE 1994 (R)

CRANK BALANCER DR350SE 1994 (R)

CRANK BALANCER DR350SE 1994 (R)

prices are in EUR

ref

part #

description

quantity

1

1265114D01
ref: 1

SHAFT,CRANK BALANCER

€ 129.50

2

0926220121
ref: 2

BEARING(20X47X14)

€ 28.00

3

0916620012
ref: 3

WASHER

€ 6.50

4

1266614D02
ref: 4

GEAR,CRANK BAL DRIVEN(NT:37)

€ 110.00

5-1

1266924B00
ref: 5-1
MODEL R/S/T/V

RACE,CRANK BALANCER DRIVEN GEAR

€ 34.00

5-2

1266924B01
ref: 5-2
MODEL W

RACE,CRK BAL DRIVEN GEAR INNER

€ 34.00

6-1

0822120285
ref: 6-1
MODEL R/S/T

THRUST WASHER

€ 2.50

6-2

0918120158
ref: 6-2
MODEL V/W

SHIM(20X28X0.5)

€ 2.50

7

0920204017
ref: 7

PIN(4.5X9.5)

€ 3.00

8

0942004008
ref: 8

KEY

€ 3.50

9

0944009031
ref: 9

SPRING

€ 3.00

10

0150010163
ref: 10

BOLT

€ 2.50

11-1

0916010099
ref: 11-1
MODEL R

WASHER(10X28X2.2)

€ 2.50

11-2

0821110283
ref: 11-2
MODEL S/T/V/W

WASHER

€ 3.00
