STARTING MOTOR (MODEL R/S)

DR350SE 1994 (R)

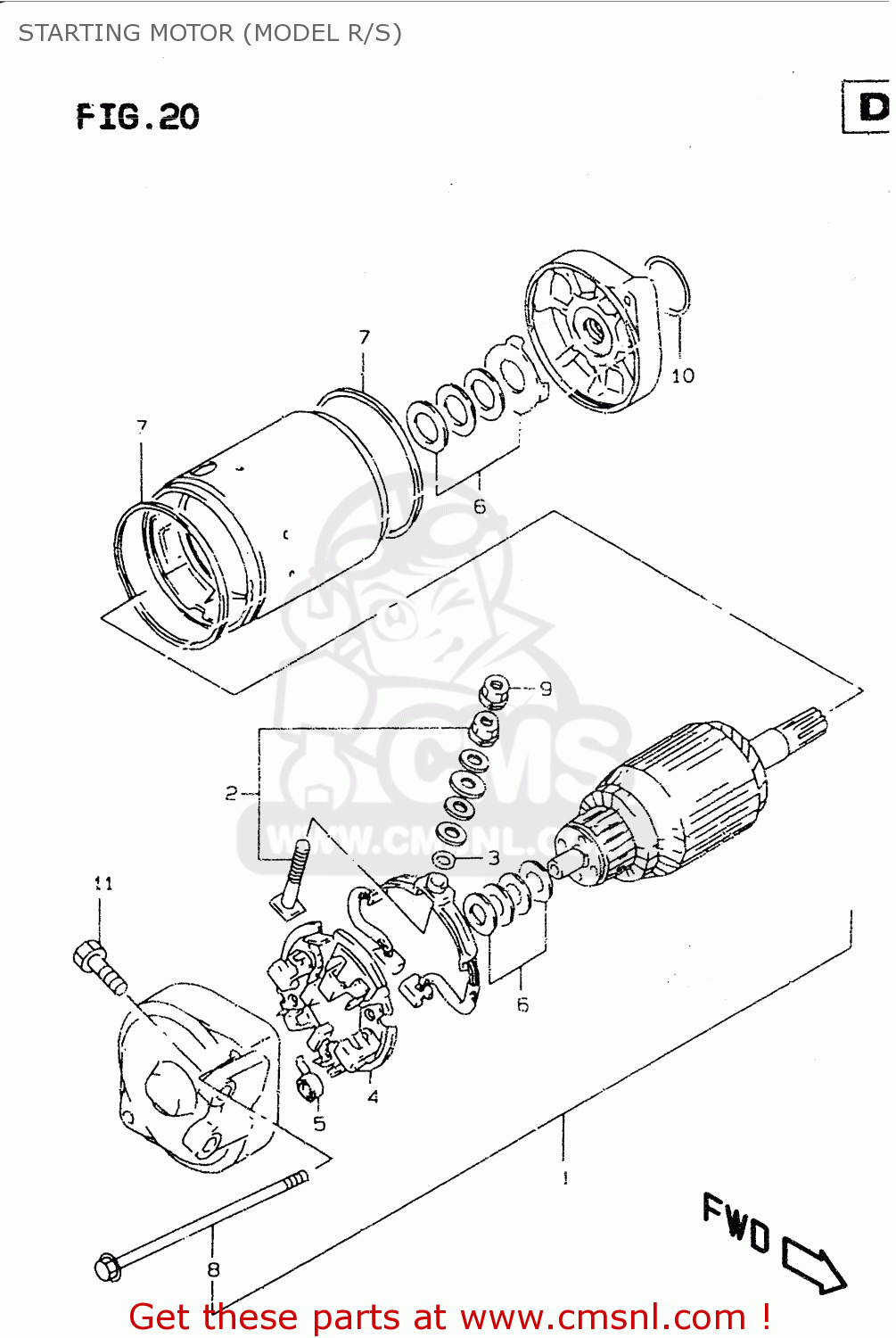

Starting motor (model r/s) diagram DR350SE 1994 (R)

STARTING MOTOR (MODEL R/S) DR350SE 1994 (R)

STARTING MOTOR (MODEL R/S) DR350SE 1994 (R)

prices are in EUR

ref

part #

description

quantity

1

3110047D01
ref: 1

MOTOR ASSY,STARTING

€ 472.50

2

3113038B00
ref: 2

TERMINAL SET,BRUSH

€ 45.00

3

3114349040
ref: 3

O RING

€ 3.00

4

3113238B00
ref: 4

HOLDER SET,BRUSH

€ 45.00

5

3113538B00
ref: 5

SPRING,BRUSH

€ 3.50

6

3117019B10
ref: 6

SHIM SET,STARTING MOTOR

€ 8.00

7

3126432E00
ref: 7

SQUARE RING

€ 7.50

8

3128026D00
ref: 8

BOLT

€ 12.50

9

0836135068
ref: 9

NUT

€ 2.00

10

0928024003
ref: 10

O RING(D:3,ID:24.5)

€ 2.00

11

0713006203
ref: 11

BOLT,CRKCASE,R

€ 3.00
