TRANSMISSION
DR350SE 1994 (R)

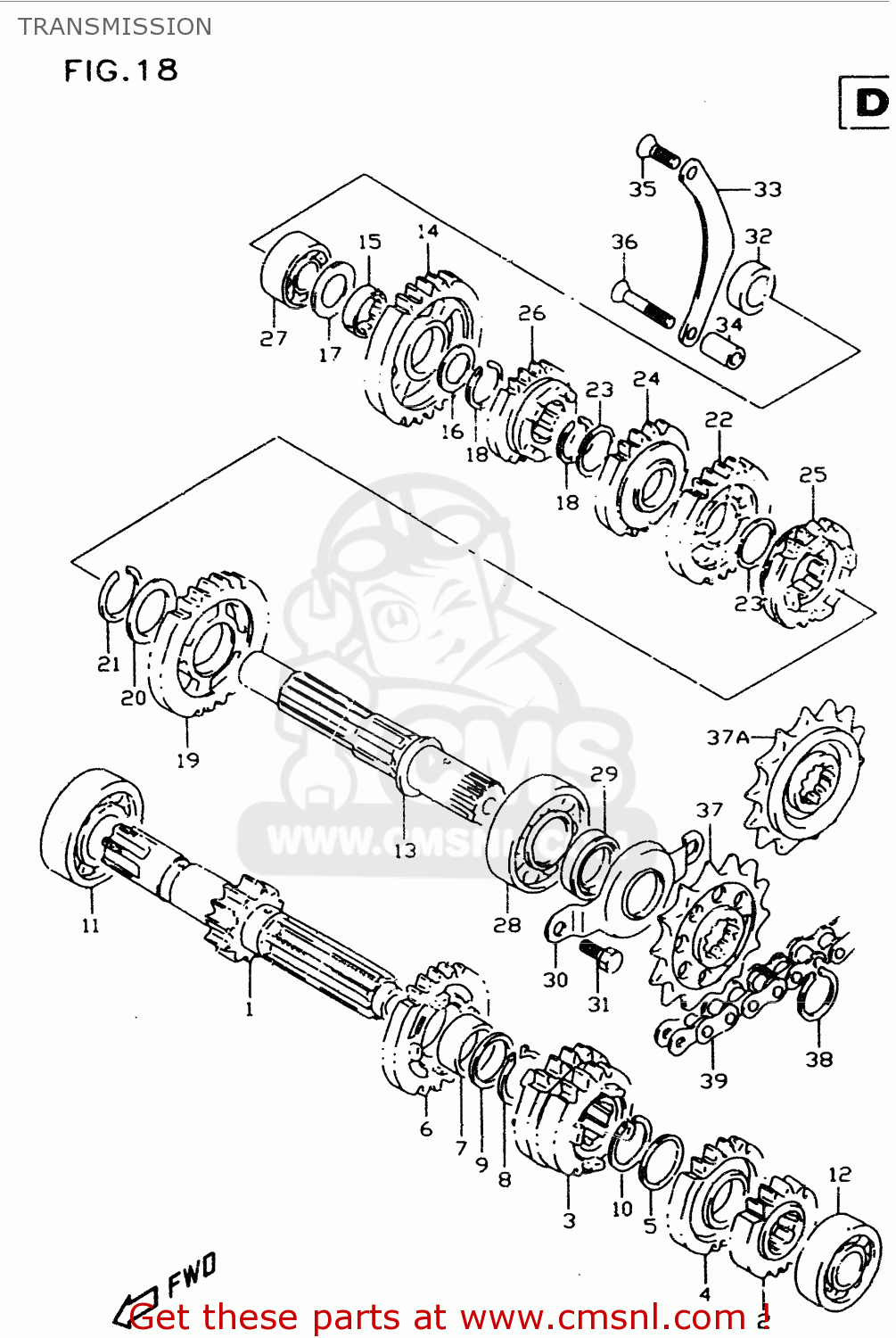

Transmission diagram DR350SE 1994 (R)
TRANSMISSION DR350SE 1994 (R)
×
prices are in EUR
ref
part #
description
quantity
1
2412014D03
ref: 1
SHAFT,COUNTER(NT:12)
€ 117.00
2-1
2422114D00
ref: 2-1
MODEL R/S/T/V
GEAR,SECOND DRIVE (NT:15)
€ 88.50
2-2
2422114D01
ref: 2-2
MODEL W
GEAR,2ND DRIVE
€ 88.50
3
2423114D00
ref: 3
GEAR,3RD & 4TH DRIVE(NT:18/18)
€ 108.00
4
2425114D00
ref: 4
GEAR,5TH DRIVE(NT:21)
€ 84.50
5-1
0821122261
ref: 5-1
MODEL R/S/T
WASHER
€ 3.00
5-2
0918122111
ref: 5-2
MODEL V/W
SHIM(22X26X1)
€ 3.00
6
2426114D02
ref: 6
GEAR,6TH DRIVE(NT:23)
€ 83.00
7
0930022008
ref: 7
BUSH(22X26X9)
€ 10.50
8
0833131226
ref: 8
CIRCLIP
€ 2.00
9-1
0821122301
ref: 9-1
MODEL R/S/T
WASHER,THRUST
€ 3.00
9-2
0918122167
ref: 9-2
MODEL V/W
SHIM(22X30X1)
€ 3.00
10
0938022006
ref: 10
CIRCLIP
€ 3.00
11
0926220116
ref: 11
BEARING 20X52X15
€ 24.00
12
0926217018
ref: 12
BEARING
€ 25.00
13
2413014D14
ref: 13
<-24130-14D13
SHAFT,DRIVE
€ 179.00
14-1
2431114D00
ref: 14-1
MODEL R/S
GEAR,FIRST DRIVEN (NT:29)
€ 61.50
14-2
2431115D00
ref: 14-2
MODEL T/V/W
GEAR,1ST DRIVEN(NT:30)
€ 67.50
15
2431214D00
ref: 15
BUSH,1ST DRIVEN GEAR
€ 15.00
16
0821117322
ref: 16
WASHER
€ 2.50
17-1
0821122301
ref: 17-1
MODEL R/S/T
WASHER,THRUST
€ 3.00
17-2
0918122167
ref: 17-2
MODEL V/W
SHIM(22X30X1)
€ 3.00
18
0938022006
ref: 18
CIRCLIP
€ 3.00
19
2432014D00
ref: 19
GEAR,2ND DRIVEN(NT:26)
€ 87.50
20-1
0821125341
ref: 20-1
MODEL R/S/T
WASHER
€ 3.50
20-2
0918125167
ref: 20-2
MODEL V/W
SHIM(25X34X1)
€ 3.50
21
0938025010
ref: 21
CIRCLIP
€ 3.00
22
2433114D01
ref: 22
GEAR,3RD DRIVEN(NT:24)
€ 87.50
23-1
0821122281
ref: 23-1
MODEL R/S/T
SHIM
€ 4.00
23-2
0918122139
ref: 23-2
MODEL V/W
SHIM(22X28X1)
€ 4.00
24
2434114D00
ref: 24
GEAR,4TH DRIVEN(NT:20)
€ 80.50
25-1
2435114D00
ref: 25-1
MODEL R/S/T/V
GEAR,FIFTH DRIVEN (NT:20)
€ 95.00
25-2
2435114D01
ref: 25-2
MODEL W
GEAR,5TH DRIVEN(NT:20)
€ 95.00
26
2436114D01
ref: 26
GEAR,6TH DRIVEN(NT:19)
€ 95.50
27
0926717003
ref: 27
BEARING(17X40X17.5)
€ 57.00
28
0926222024
ref: 28
BEARING(22X56X16)
€ 40.00
29
0928322025
ref: 29
SEAL,OIL(22X34X7)
€ 12.50
30
2475114D00
ref: 30
RETAINER,DRIVE SHAFT OIL SEAL
€ 8.00
31
0150006123
ref: 31
BOLT
€ 2.00
32
0918017004
ref: 32
SPACER(17X25X10.5)
€ 4.00
33
2626414D00
ref: 33
RETAINER,KICK IDLE GEAR
€ 10.00
34
0918006314
ref: 34
<-09180-06229
SPACER(6.5X12X21)
€ 2.50
35
0212206163
ref: 35
SCREW ,6X16
€ 2.00
36
0212206353
ref: 36
SCREW
€ 2.00
37
2751114320
ref: 37
SPROCKET(NT:15)
€ 20.00
37A
2751029E00
ref: 37A
W/DAMPER
SPROCKET,ENGINE(NT15)
€ 33.50
38
0938022012
ref: 38
CIRCLIP
€ 3.50
39
2760001C10108
ref: 39
<-27600-05C10-108
CHAIN(DID520VM,108LE)
€ 119.50
