HANDLE SWITCH (MODEL R/S)

DR350SE 1994 (R)

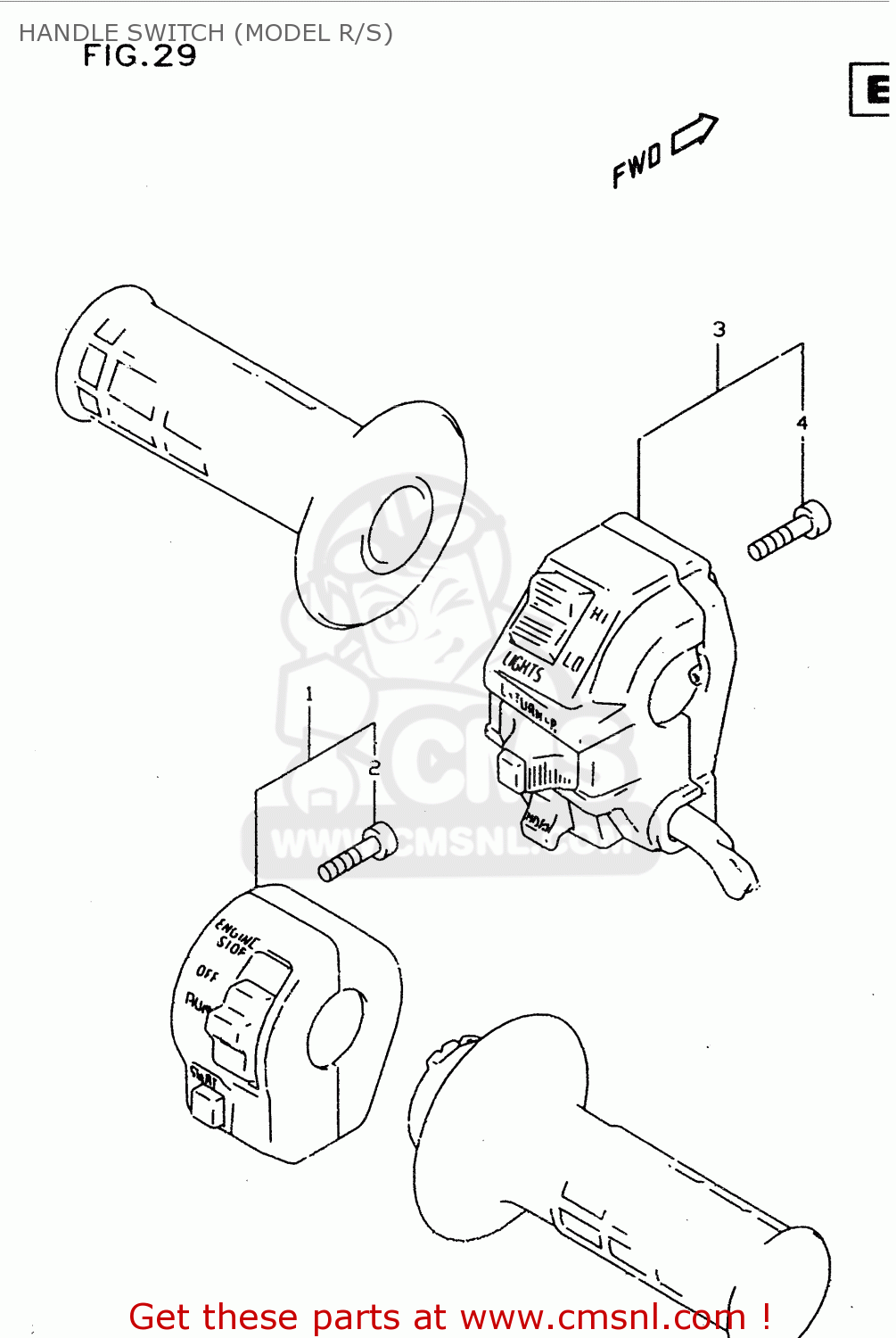

Handle switch (model r/s) diagram DR350SE 1994 (R)

HANDLE SWITCH (MODEL R/S) DR350SE 1994 (R)

HANDLE SWITCH (MODEL R/S) DR350SE 1994 (R)

prices are in EUR

ref

part #

description

quantity

1-1

3720015D50
ref: 1-1

SWITCH ASSY, HANDLE, RH

€ 142.00

1-2

3720015D40
ref: 1-2
MODEL S E24

SWITCH ASSEMBLY,HANDLE,RIGHT

€ 88.50

2

0211204203
ref: 2

SCREW

€ 1.00

3

3740003D12
ref: 3

SWITCH ASSEMBLY,HANDLE,LEFT

€ 109.50

4

0211205305
ref: 4

SCREW

€ 1.50
