FUEL COCK

DR350SE 1994 (R)

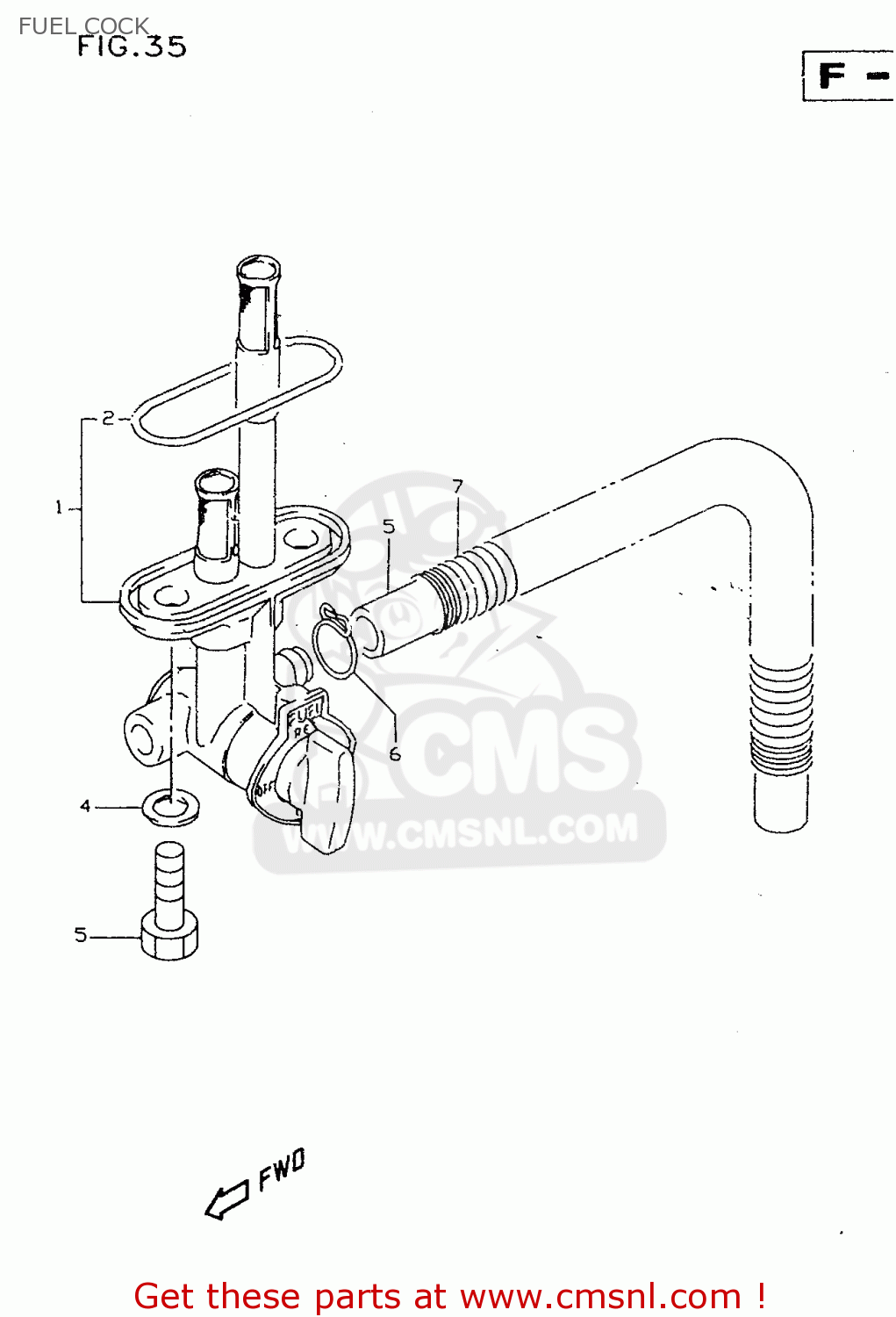

Fuel cock diagram DR350SE 1994 (R)

prices are in EUR

ref

part #

description

quantity

4430015D20
ref: 1

COCK ASSY,FUEL

€ 79.00

4434887420
ref: 2

GASKET,JOINT (NAS)

€ 5.00

3-1

0912806006
ref: 3-1
MODEL R/S

BOLT(6X20)

€ 2.00

3-2

0912806057
ref: 3-2
MODEL T/V/W

BOLT(6X20)

€ 2.00

0916806026
ref: 4

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

5-1

0935270103600
ref: 5-1
MODEL R/S/T/V

HOSE(7X10.2X600)

€ 8.00

5-2

0935570125600
ref: 5-2
MODEL W

HOSE(7X12X600)

€ 26.00

6-1

0940110401
ref: 6-1
MODEL R/S/T/V

CLIP

€ 1.50

6-2

0940111407
ref: 6-2
MODEL W

CLIP

€ 2.50

7-1

0944013016
ref: 7-1
MODEL R/S/T

SPRING

€ 14.50

7-2

0944013052
ref: 7-2
MODEL V

SPRING

€ 14.50

7-3

0944014048
ref: 7-3
MODEL W

SPRING

€ 5.50
