OIL HOSE
DR350SE 1994 (R)

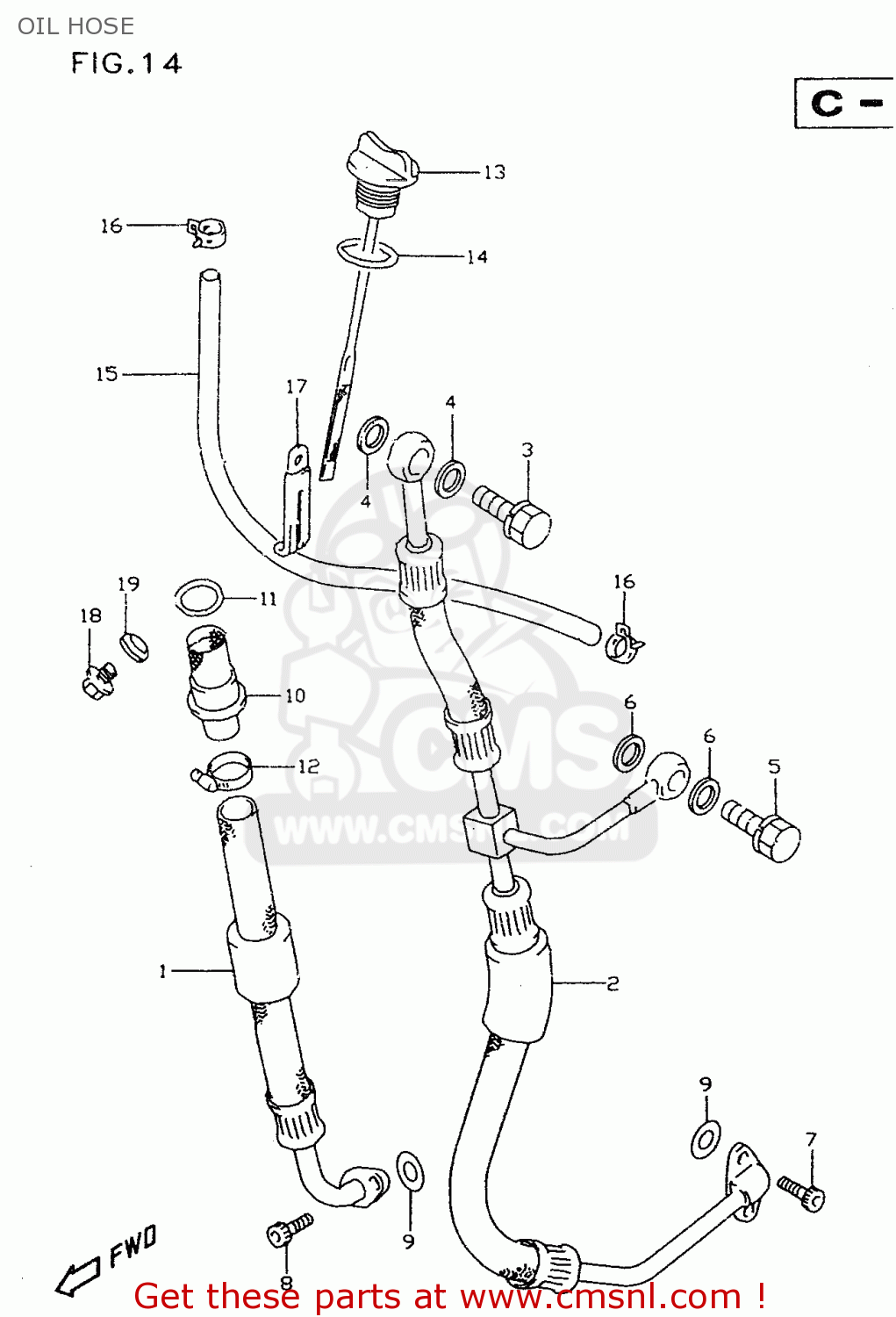

Oil hose diagram DR350SE 1994 (R)
OIL HOSE DR350SE 1994 (R)
×
prices are in EUR
ref
part #
description
quantity
1
1646014D03
ref: 1
HOSE,OIL TANK INLET
€ 78.00
2
1647014D51
ref: 2
HOSE,OIL TANK
€ 341.50
3
0936016002
ref: 3
BOLT UNION
€ 12.00
4
0916816003
ref: 4
GASKET(16X22X2) (NAS)
€ 2.00
5
0936012010
ref: 5
BOLT UNION
€ 7.50
6
0916812017
ref: 6
GASKET(12X17X1) (NAS)
€ 2.00
7
0713006163
ref: 7
BOLT,OIL FILLE
€ 3.00
8
0713006203
ref: 8
BOLT,CRKCASE,R
€ 3.00
9
0928012008
ref: 9
O RING(D:2.4,ID:12.3)
€ 3.00
10
1655014D02
ref: 10
STRAINER,FRAME HEAD UNDER
€ 58.00
11
0928022008
ref: 11
O RING(D:3.1,ID:22.7)
€ 2.50
12-1
0940222502
ref: 12-1
MODEL R
CLAMP
€ 6.00
12-2
0940222511
ref: 12-2
MODEL S/T/V/W
CLAMP
€ 6.00
13
1656014D01
ref: 13
GAUGE ASSY,OIL LEVEL
€ 26.00
14
0928017003
ref: 14
O RING(D:3.1,ID:16.8)
€ 2.00
15
1648047D00
ref: 15
HOSE,OIL OVER FLOW
€ 30.00
16
0940111407
ref: 16
CLIP
€ 2.50
17
0940406607
ref: 17
CLAMP(L:55)
€ 3.00
18
0924710008
ref: 18
PLUG(10X12)
€ 3.00
19
0916810002
ref: 19
GASKET(10X14X3.6) (NAS)
€ 2.00
