CRANKCASE
DR350SE 1994 (R)

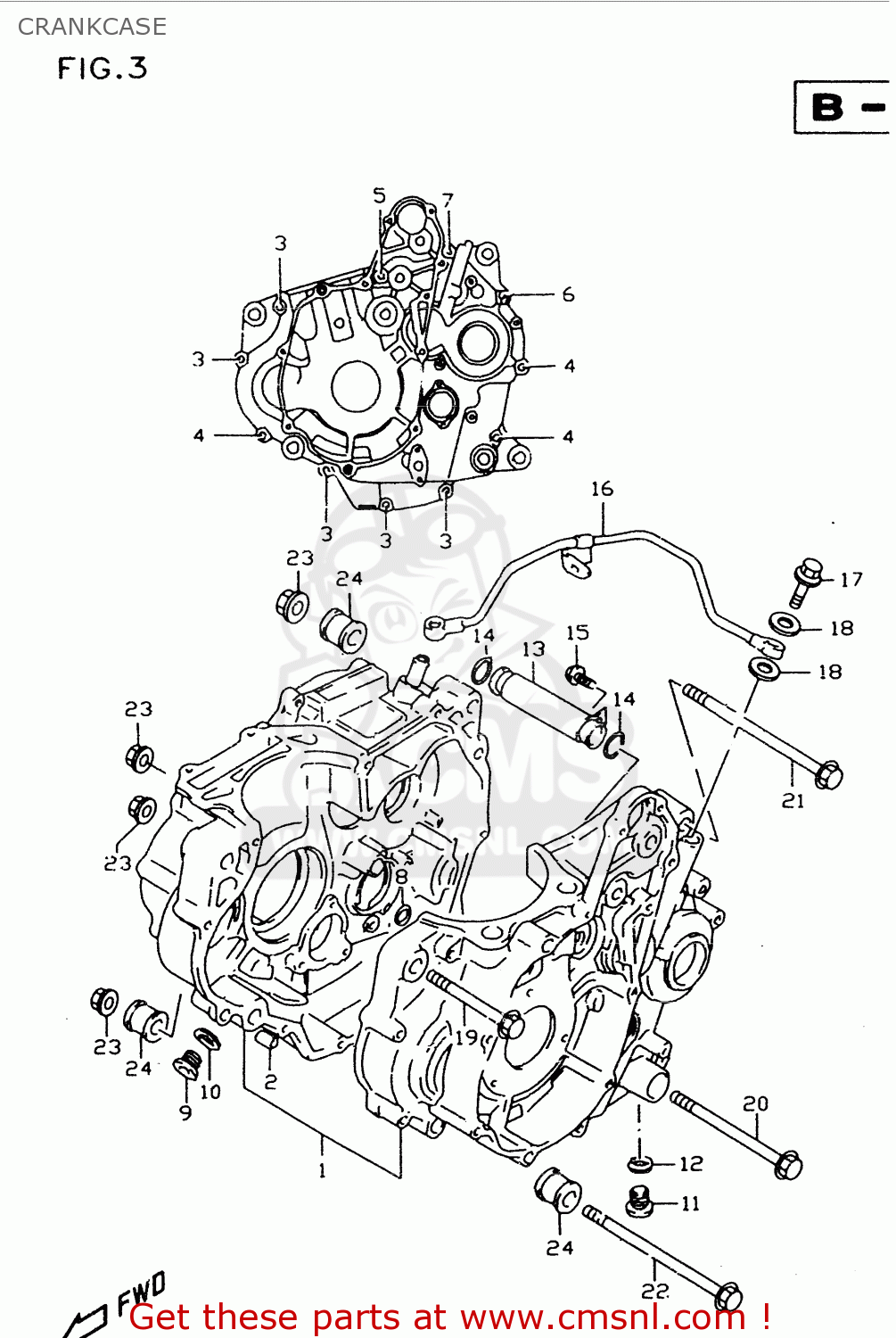

Crankcase diagram DR350SE 1994 (R)
CRANKCASE DR350SE 1994 (R)
×
prices are in EUR
ref
part #
description
quantity
1-1
1130115812
ref: 1-1
MODEL R
CRANKCASE SET
€ 671.50
1-2
1130115814
ref: 1-2
MODEL S/T/V/W
CRANKCASE SET
€ 671.50
2
0421109149
ref: 2
PIN
€ 2.00
3
0154706453
ref: 3
BOLT
€ 3.00
4
0154706503
ref: 4
BOLT
€ 3.50
5
0154706653
ref: 5
BOLT
€ 2.00
6
0154706707
ref: 6
BOLT
€ 2.50
7
0154706903
ref: 7
BOLT
€ 3.00
8-1
0928013007
ref: 8-1
MODEL R
O-RING
€ 2.50
8-2
0928012009
ref: 8-2
MODEL S/T/V/W
O RING(D:1.9,ID:12.6)
€ 2.50
9
0924814005
ref: 9
PLUG,14X12
€ 5.00
10
0916814002
ref: 10
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
11
0150012203
ref: 11
BOLT
€ 3.00
12
0916812002
ref: 12
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
13
1145014D01
ref: 13
PIPE,T/M OIL INNER
€ 11.50
14
0928015007
ref: 14
O RING(D:2.4,ID:15.8)
€ 2.00
15
0155006123
ref: 15
BOLT
€ 2.50
16
1128015D10
ref: 16
PIPE,MISSION OIL OUTER
€ 47.50
17
0936008011
ref: 17
BOLT UNION
€ 4.00
18
0916808008
ref: 18
GASKET 8.2X14X1 (NAS)
€ 1.00
19
0910310230
ref: 19
BOLT 10X85
€ 6.00
20
0910310242
ref: 20
BOLT(10X101.5)
€ 6.50
21
0910310063
ref: 21
BOLT(10X115)
€ 5.00
22
0910310241
ref: 22
BOLT(10X143)
€ 6.00
23
0915910058
ref: 23
NUT
€ 4.00
24
1161114D00
ref: 24
SPACER,ENGINE MOUNTING
€ 15.50
