REAR MASTER CYLINDER
DR350SE 1994 (R)

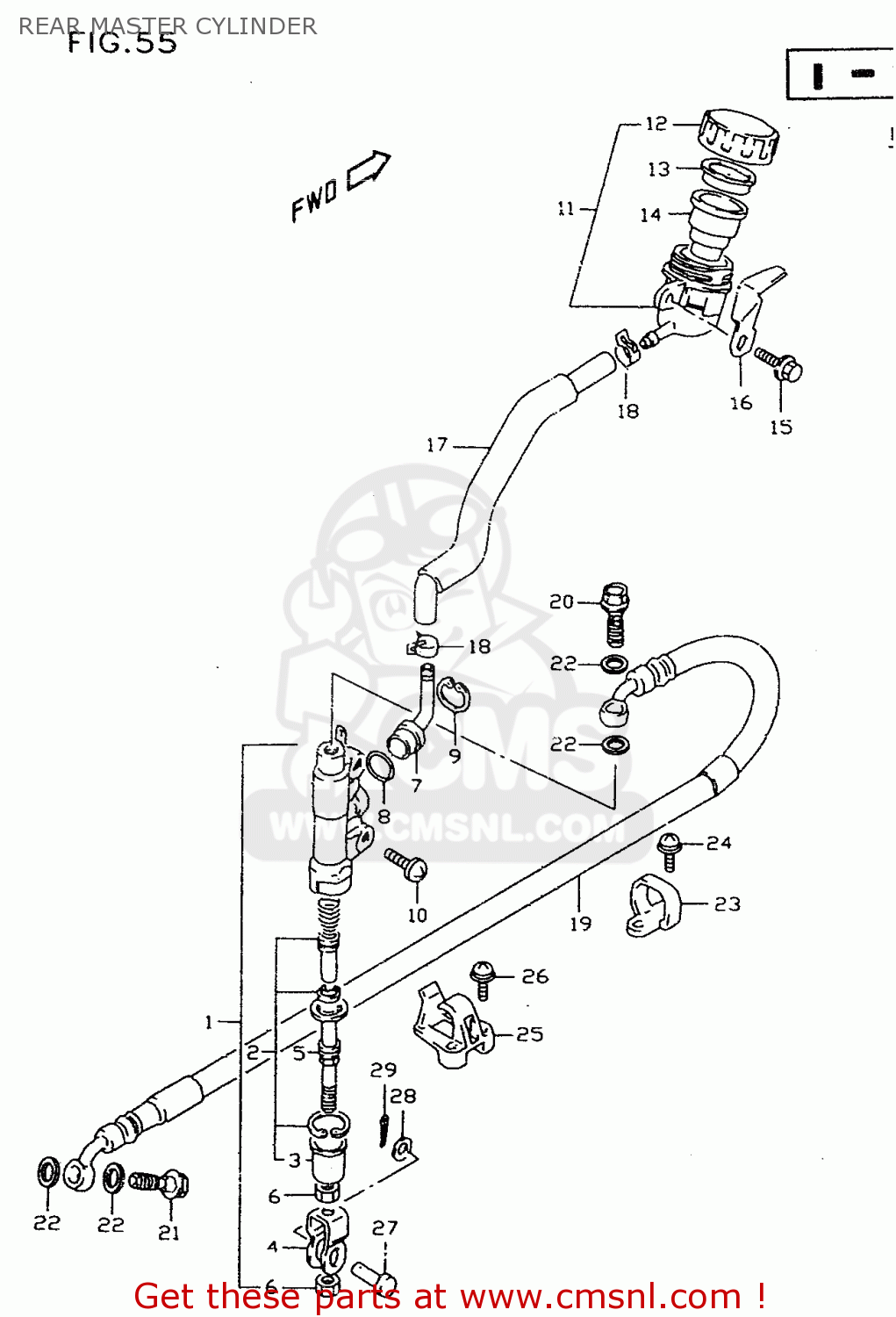

Rear master cylinder diagram DR350SE 1994 (R)
REAR MASTER CYLINDER DR350SE 1994 (R)
×
prices are in EUR
ref
part #
description
quantity
1-1
6960014D00
ref: 1-1
MODEL R/S/T
CYLINDER ASSEMBLY,REAR MASTER
€ 167.00
1-2
6960014D01
ref: 1-2
MODEL V/W
CYLINDER ASSY,RR MASTER
€ 167.00
2
6960004820
ref: 2
PISTON/CUP SET
€ 31.00
3
6969100A00
ref: 3
BOOT
€ 3.50
4
6969200B21
ref: 4
YOKE
€ 13.50
5-1
6967048B00
ref: 5-1
MODEL R/S/T
ROD,PUSH
€ 20.50
5-2
6967000B21
ref: 5-2
MODEL V/W
ROD,PUSH
€ 24.00
6
6969305A00
ref: 6
NUT
€ 1.50
7
5967217C00
ref: 7
CONNECTOR
€ 8.00
8
6968634200
ref: 8
O RING
€ 3.50
9
6967400B20
ref: 9
CIRCLIP
€ 3.00
10-1
0913906024
ref: 10-1
->09139-06067
SCREW
€ 3.00
10-2
0913906067
ref: 10-2
SCREW(6X16)
€ 3.00
11
6974003D00
ref: 11
TANK ASSY,RR BRAKE RESERVOIR
€ 40.50
12
6966903D00
ref: 12
CAP
€ 11.00
13
6966800B20
ref: 13
PLATE
€ 4.00
14
6966700B20
ref: 14
DIAPHRAGM
€ 9.50
15
0155006163
ref: 15
BOLT
€ 2.50
16
6974314D10
ref: 16
GUARD,RSVR TANK CAP
€ 4.50
17
6973014D00
ref: 17
HOSE COMP,RESERVOIR TANK
€ 26.00
18
0940112404
ref: 18
CLIP
€ 2.50
19
6948014D00
ref: 19
HOSE,RR BRAKE
€ 65.00
20
0936010039
ref: 20
BOLT UNION
€ 6.50
21
0936010040
ref: 21
BOLT UNION
€ 5.00
22
0916110009
ref: 22
WASHER(10X15X1.5)
€ 2.00
23
6119600B21
ref: 23
GUIDE,RR BRAKE HOSE
€ 6.00
24
0214205103
ref: 24
SCREW
€ 2.50
25
6119603D00
ref: 25
GUIDE,RR BRAKE HOSE
€ 3.00
26
0211235163
ref: 26
SCREW
€ 2.50
27
0920008048
ref: 27
PIN(8X20)
€ 3.00
28-1
0916008074
ref: 28-1
MODEL R/S/T
WASHER(8.5X13X1.6)
€ 2.50
28-2
0916008119
ref: 28-2
MODEL V/W
WASHER (8.5X14X1.6)
€ 2.50
29
0411125158
ref: 29
PIN 20X15
€ 1.50
