AIR CLEANER

DR500S 1987 (H)

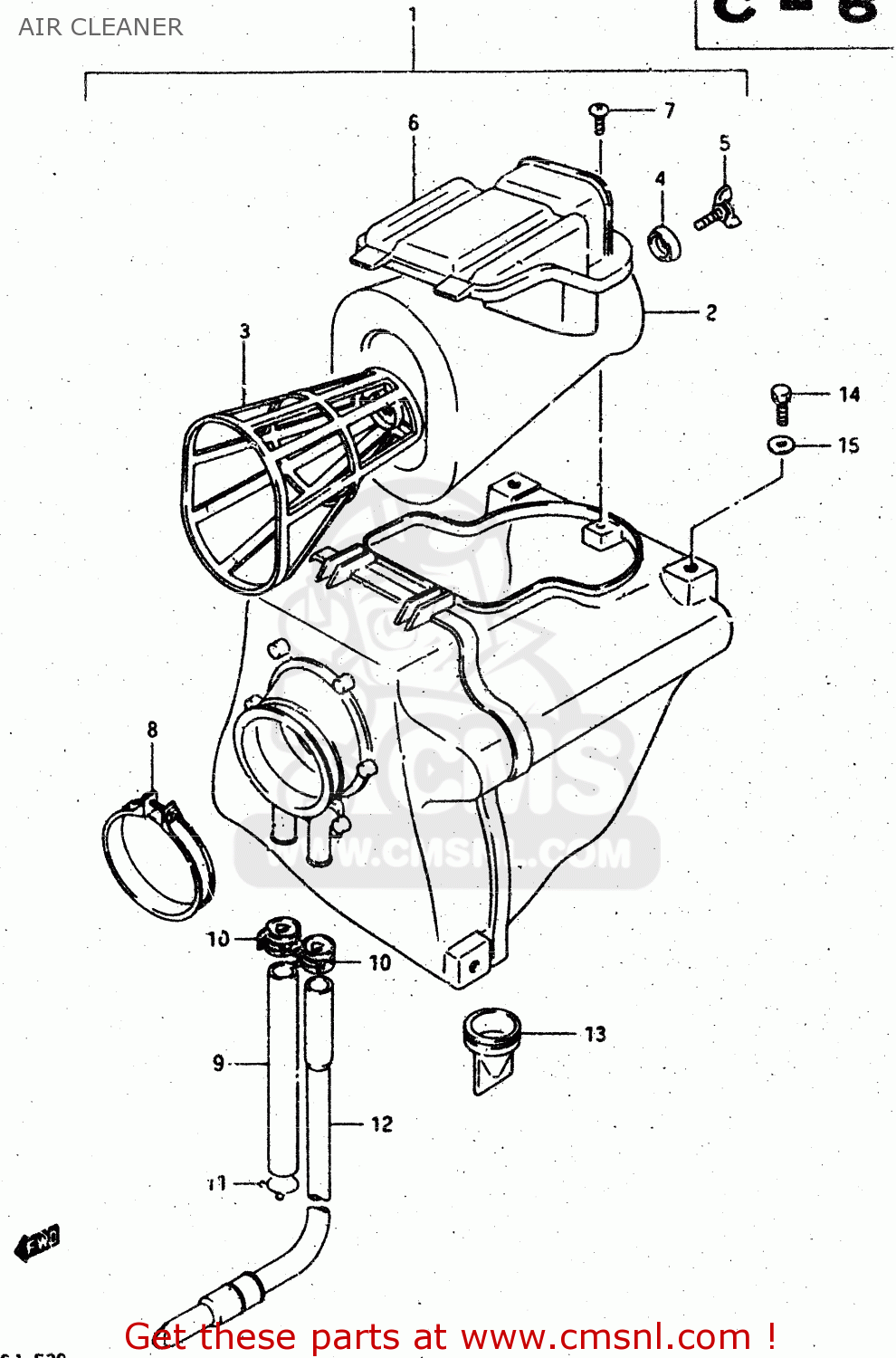

Air cleaner diagram DR500S 1987 (H)

AIR CLEANER DR500S 1987 (H)

AIR CLEANER DR500S 1987 (H)

prices are in EUR

ref

part #

description

quantity

1-1

1370014A01
ref: 1-1
MODEL G/H

CLEANER ASSY, AIR

€ 218.50

1-2

1370014A11
ref: 1-2
MODEL J

CLEANER ASSEMBLY

€ 68.50

2

1378114A00
ref: 2

FILTER,AIR CLEANER

€ 32.50

3

1379114A00
ref: 3

HOLDER

€ 10.50

4

1379616700
ref: 4

WASHER,FILTER HOLDER

€ 2.50

5

1383714500
ref: 5

BOLT,AIR CLEANER

€ 2.00

6

1374014A00
ref: 6

CAP,AIR CLEANER

€ 15.00

7

0214205164
ref: 7

SCREW

€ 2.50

8-1

0940268208
ref: 8-1
MODEL G/H

CLAMP

€ 6.00

8-2

0940264208
ref: 8-2
MODEL J

CLAMP

€ 6.00

9

1385100260
ref: 9
L:260ARROW RIGHT115

TUBE,BREATHER

€ 13.50

10

1382543400
ref: 10

CLIP

€ 2.50

11

0940114301
ref: 11

CLIP

€ 2.00

12

1387011357
ref: 12

DRAIN TUBE

€ 13.50

13

1387318900
ref: 13

HOSE,AIR CLEANER DRAIN

€ 4.00

14

0910006067
ref: 14

BOLT(6X14)

€ 2.50

15

0916006007
ref: 15

WASHER

€ 2.00
