CRANKSHAFT
DR500S 1987 (H)

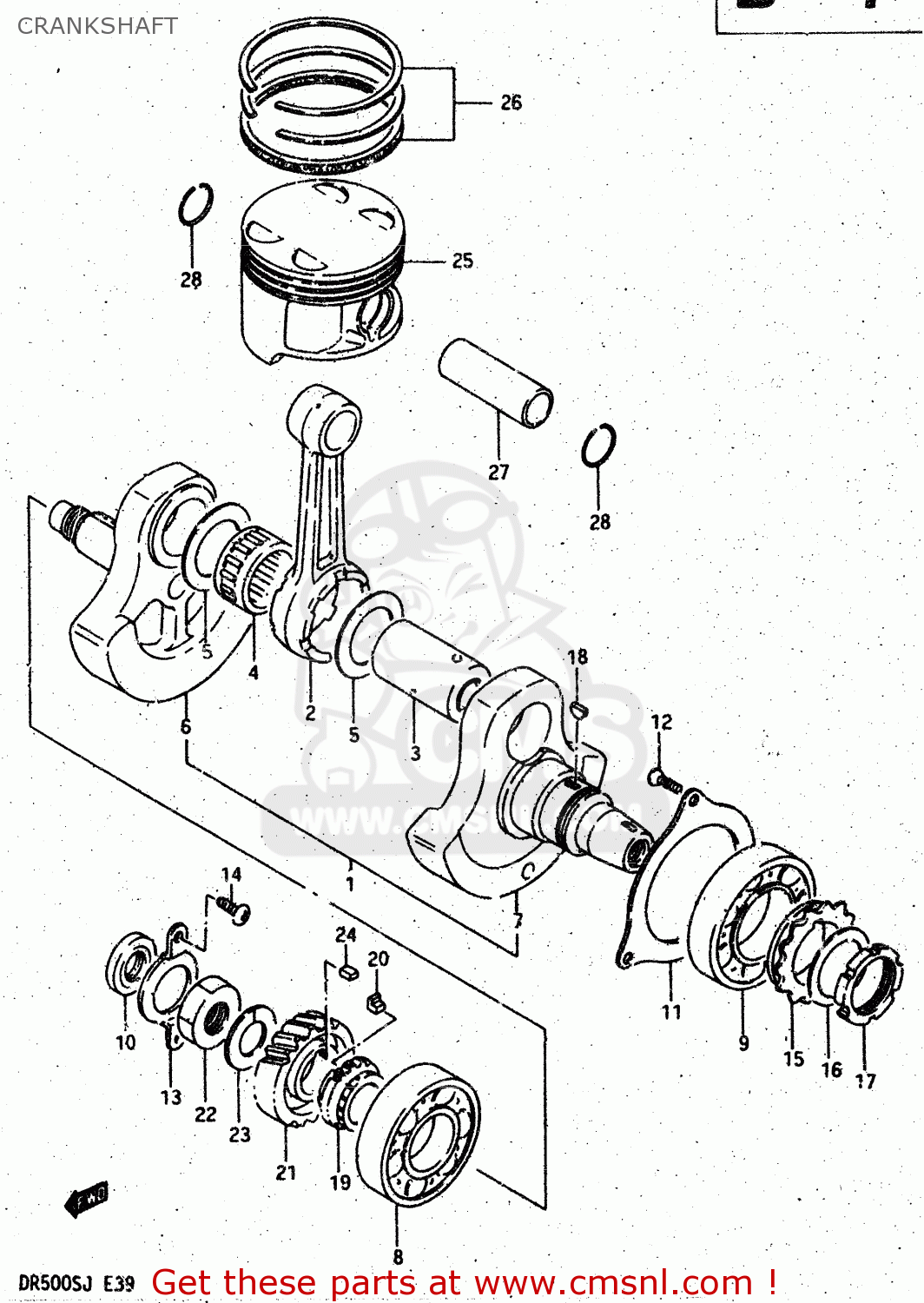

Crankshaft diagram DR500S 1987 (H)
CRANKSHAFT DR500S 1987 (H)
×
prices are in EUR
ref
part #
description
quantity
1
1220015A00
ref: 1
CRANKSHAFT ASSY
€ 0.00
2
1216115A01
ref: 2
ROD, CONNECTING
€ 0.00
3
1221014A01
ref: 3
PIN,CRANK
€ 48.00
4
0926337002
ref: 4
BEARING
€ 33.00
5
0916037006
ref: 5
WASHER(37X55X1)
€ 8.50
6
1222115A00
ref: 6
CRANKSHAFT, RH
€ 0.00
7
1226115A00
ref: 7
CRANKSHAFT, LH
€ 0.00
8
0926235009
ref: 8
BEARING(35X80X21)
€ 68.50
9
0926245003
ref: 9
BEARING
€ 50.00
10
0928216002
ref: 10
SEAL,OIL(16X30X6)
€ 8.50
11
1254137400
ref: 11
RETAINER,CRANKSHAFT BEARING,L
€ 13.50
12
0212206167
ref: 12
SCREW
€ 2.00
13
1254837400
ref: 13
RETAINER,CRANKSHAFT BEARING,R
€ 6.50
14
0211205088
ref: 14
SCREW
€ 2.00
15
1266214A10
ref: 15
NT:31
SPROCKET,BALANCER DRIVE
€ 30.50
16
0916440003
ref: 16
WASHER
€ 3.50
17
1266437401
ref: 17
NUT,FLYWHEEL
€ 26.00
18
0834131039
ref: 18
KEY
€ 2.00
19
1273137400
ref: 19
SPROCKET,CAM CHAIN DRIVE
€ 91.00
20
1274932400
ref: 20
KEY,SPROCKET
€ 13.50
21
2111114A00
ref: 21
GEAR,PRIMARY DRIVE
€ 49.50
22
0914020008
ref: 22
NUT (20MM)
€ 4.00
23
0916420003
ref: 23
WASHER
€ 2.50
24
0942107002
ref: 24
KEY
€ 4.00
25-1
1211115A00
ref: 25-1
PISTON
€ 113.00
25-2
1211115A00050
ref: 25-2
OPT
PISTON
€ 164.50
25-3
1211115A00100
ref: 25-3
OPT
PISTON
€ 152.50
26-1
1214014A31
ref: 26-1
RING SET,PISTON
€ 51.00
26-2
1214014A31050
ref: 26-2
OPT
RING SET,PISTON (OS:0.5)
€ 61.00
26-3
1214014A31100
ref: 26-3
OPT
RING SET,PISTON
€ 33.00
27
1215114A01
ref: 27
PIN,PISTON
€ 18.00
28
0938123003
ref: 28
CIRCLIP
€ 1.50
