FUEL TANK (DR500SG/SH/SJ)
DR500S 1987 (H)

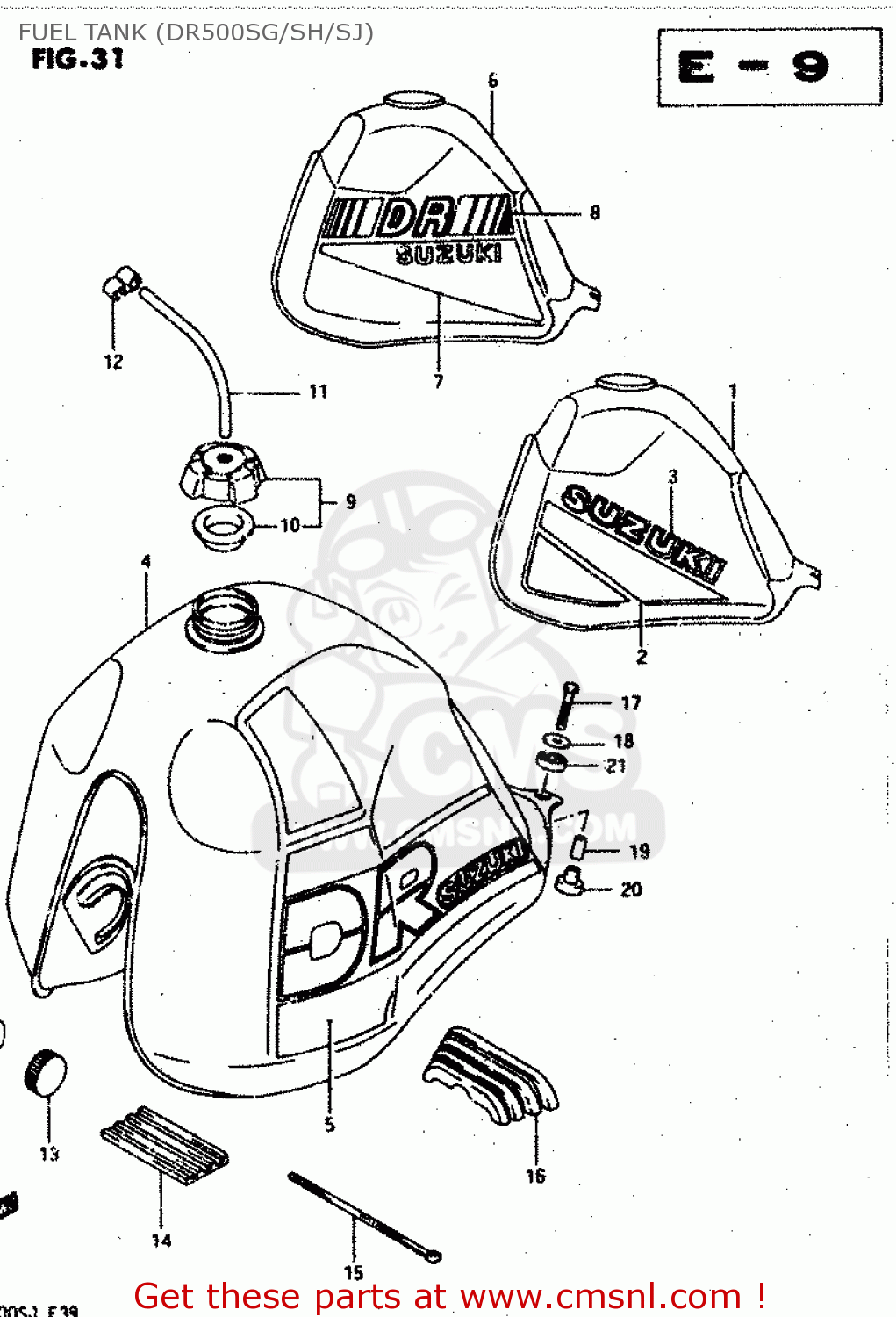

Fuel tank (dr500sg/sh/sj) diagram DR500S 1987 (H)
FUEL TANK (DR500SG/SH/SJ) DR500S 1987 (H)
×
prices are in EUR
ref
part #
description
quantity
1-1
4410014A4010V
ref: 1-1
MODEL G
TANK ASSY, FUEL (WHITE)
€ 733.50
1-2
4410014A4014C
ref: 1-2
MODEL G
TANK ASSY, FUEL (RED)
€ 733.50
1-3
4410014A4019F
ref: 1-3
MODEL G
TANK ASSY, FUEL (BLUE)
€ 733.50
1-4
4410014A4021C
ref: 1-4
MODEL G
TANK ASSY, FUEL (BLACK)
€ 733.50
2-1
6311014A407CL
ref: 2-1
MODEL G FOR 10V
TAPE SET, FUEL TANK
€ 0.00
2-2
6811014A408AH
ref: 2-2
MODEL G FOR 14C,19F,
TAPE SET, FUEL TANK
€ 28.00
3-1
6811132410019
ref: 3-1
MODEL G FOR 10V
EMBLEM,FUEL TANK
€ 10.50
3-2
6811132410064
ref: 3-2
MODEL G FOR 14C,19F,
EMBLEM,FUEL TANK
€ 7.00
4-1
4410015A0014L
ref: 4-1
MODEL H
TANK ASSY, FUEL (WHITE)
€ 733.50
4-2
4410015A0021C
ref: 4-2
MODEL H
TANK ASSY, FUEL (BLACK)
€ 733.50
4-3
4410015A0034S
ref: 4-3
MODEL H
TANK ASSY, (BLUE)
€ 733.50
5-1
6811014A707VN
ref: 5-1
MODEL H FOR 14L
TAPE SET, FUEL TANK
€ 71.50
5-2
6811014A709DK
ref: 5-2
MODEL H FOR 21C
TAPE SET, FUEL TANK
€ 0.00
5-3
6811014A709JT
ref: 5-3
MODEL H FOR 34S
TAPE SET, FUEL TANK
€ 49.00
6-1
4410015A4014L
ref: 6-1
MODEL J
TANK ASSY, FUEL (WHITE)
€ 733.50
6-2
4410015A4021C
ref: 6-2
MODEL J
TANK ASSY, FUEL (BLACK)
€ 733.50
6-3
4410015A4034S
ref: 6-3
MODEL J
TANK ASSY, FUEL (BLUE)
€ 733.50
7-1
6811014A909LJ
ref: 7-1
MODEL J,FOR 14L
TAPE SET, FUEL TANK
€ 37.50
7-2
6811014A909WM
ref: 7-2
MODEL J,FOR 21C
TAPE SET, FUEL TANK
€ 0.00
7-3
6811014A909UH
ref: 7-3
MODEL J,FOR 34S
TAPE SET, FUEL TANK
€ 0.00
8-1
6812014A109YE
ref: 8-1
MODEL J,FOR 14L
EMBLEM SET, FUEL TANK
€ 44.00
8-2
6812014A109UJ
ref: 8-2
MODEL J,FOR 21C
EMBLEM SET, FUEL TANK
€ 0.00
8-3
6812014A109VC
ref: 8-3
MODEL J,FOR 34S
EMBLEM SET, FUEL TANK
€ 0.00
9
4420001890
ref: 9
CAP SET,FUEL TANK
€ 12.50
10
4424840400
ref: 10
GASKET,FUEL TANK CAP (NAS)
€ 4.50
11
0933250823240
ref: 11
HOSE (L:240ARROW RIGHT200)
€ 0.00
12
4448632101
ref: 12
CLAMP,FUEL TANK BREATHER HOSE
€ 3.50
13
0932910016
ref: 13
CUSHION
€ 3.00
14
4454114500
ref: 14
CUSHION,FUEL TANK UPR FR
€ 4.50
15
0940720401
ref: 15
CLAMP
€ 4.50
16
4454214A00
ref: 16
CUSHION,FUEL TANK RR
€ 8.50
17-1
0110706306
ref: 17-1
MODEL G/H
BOLT
€ 2.50
17-2
0151706356
ref: 17-2
MODEL J
BOLT
€ 2.50
18
0916006072
ref: 18
MODEL G/H
WASHER (6.5X24X1.6)
€ 2.00
19
0918006072
ref: 19
SPACER
€ 2.00
20
0932010020
ref: 20
CUSHION
€ 4.00
21
0932014013
ref: 21
CUSHION
€ 3.00
