FRONT FORK COVER (DR500RG)

DR500S 1987 (H)

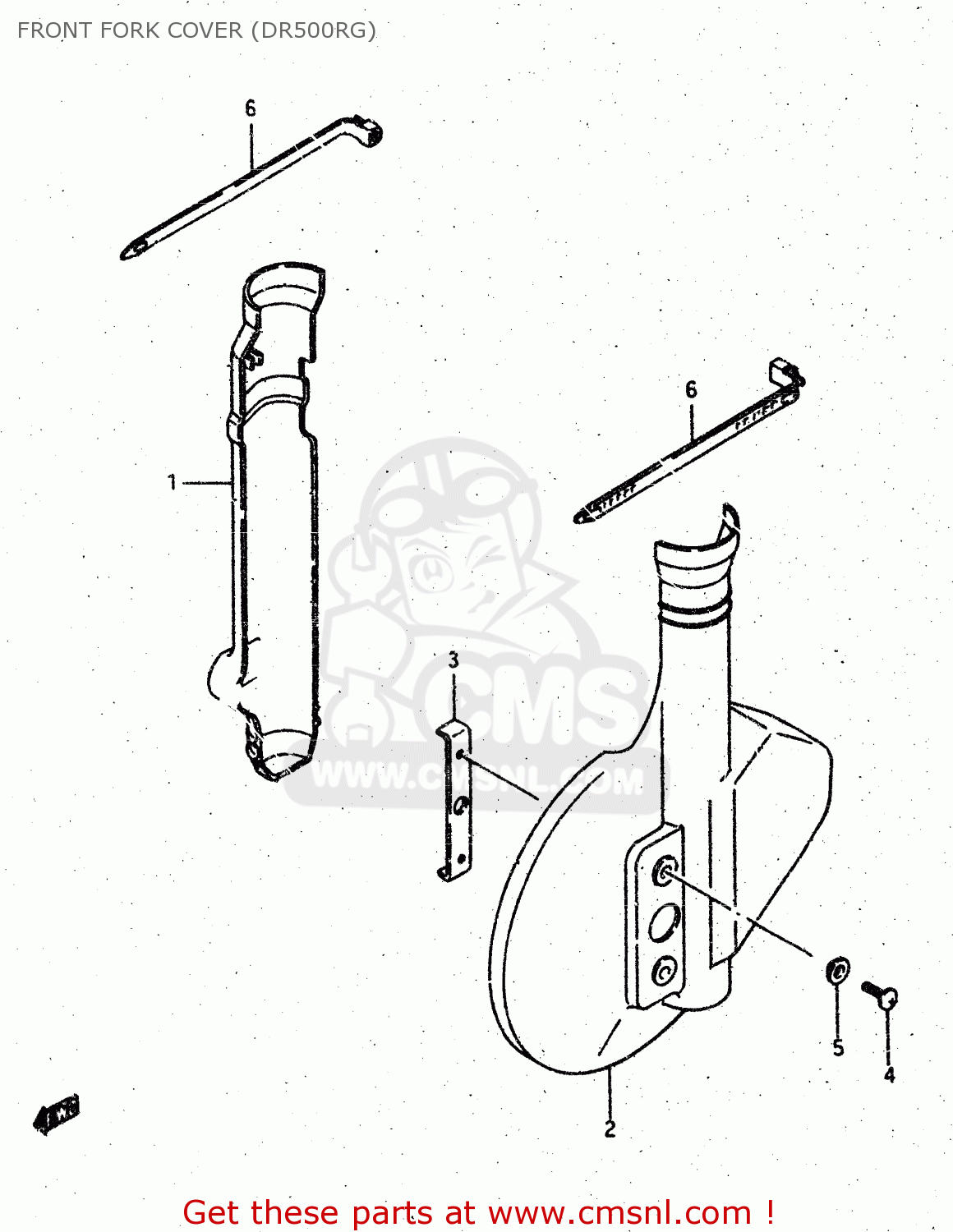

Front fork cover (dr500rg) diagram DR500S 1987 (H)

FRONT FORK COVER (DR500RG) DR500S 1987 (H)
FRONT FORK COVER (DR500RG) DR500S 1987 (H)
FRONT FORK COVER (DR500RG) DR500S 1987 (H)
prices are in EUR
ref
part #
description
quantity
1
5120114A1010V
ref: 1
WHITE
PROTECTOR, FRONT FORK RH
€ 20.00
2
5120214A1010V
ref: 2
WHITE
PROTECTOR, FRONT FORK LH
€ 62.50
3
5121014A00
ref: 3
PLATE, PROTECTOR
5121014A00
€ 9.00
4
0214206127
ref: 4
SCREW 6X12
0214206127
€ 1.50
5
0916906028
ref: 5
WASHER
0916906028
€ 2.00
6
0940725403
ref: 6
CLAMP
0940725403
€ 4.00
