HEADLAMP
DR500S 1987 (H)

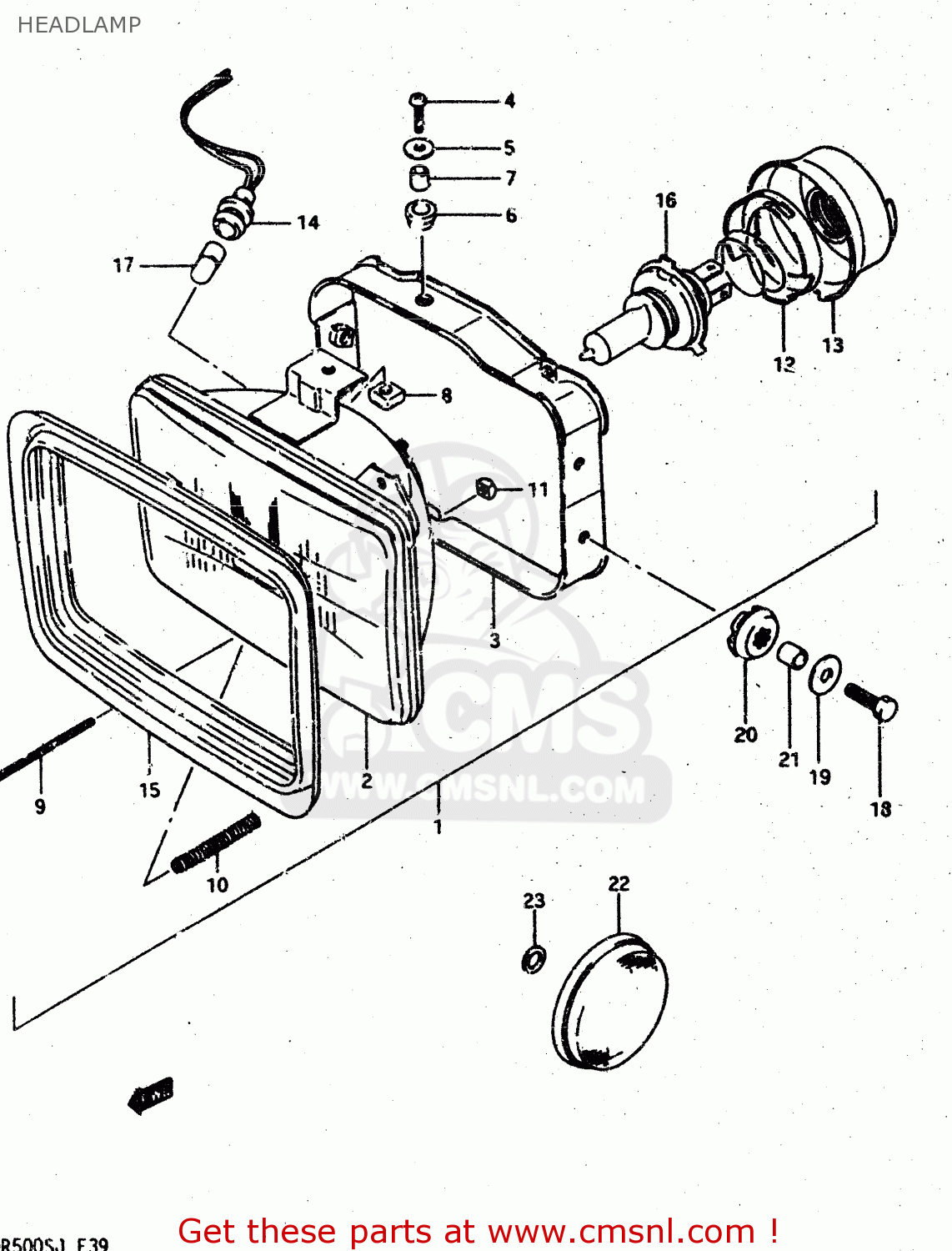

Headlamp diagram DR500S 1987 (H)
HEADLAMP DR500S 1987 (H)
×
prices are in EUR
ref
part #
description
quantity
1-1
3510014A50999
ref: 1-1
HEADLAMP ASSY
€ 175.50
1-2
3510014A50999
ref: 1-2
DR500RG/RH
HEADLAMP ASSY
€ 175.50
2-1
3512114A50
ref: 2-1
UNIT
€ 102.00
2-2
3512114C50
ref: 2-2
DR500RG/RH
UNIT
€ 102.00
3
3514114A00
ref: 3
HOUSING
€ 31.00
4
0211205208
ref: 4
SCREW 5X20
€ 3.00
5
3513845230
ref: 5
WASHER
€ 2.00
6
3513945230
ref: 6
CUSHION
€ 1.50
7
3513314A00
ref: 7
SPACER
€ 3.50
8
3513545900
ref: 8
NUT
€ 2.50
9
3515149200
ref: 9
SCREW,HEADLAMP ADJUST
€ 4.00
10
3515449200
ref: 10
SPRING
€ 3.50
11
3513545600
ref: 11
NUT
€ 3.00
12
3513601A00
ref: 12
HOLDER,BULB
€ 6.00
13
3517301440
ref: 13
COVER,SOCKET
€ 10.00
14
3611845900
ref: 14
SOCKET,PARKING
€ 13.00
15
3512914C00
ref: 15
DR500RG/RH
SHADE
€ 20.00
16
0947112060
ref: 16
BULB(12V60/55W,H4)
€ 8.00
17
0947112063
ref: 17
BULB(12V4W)
€ 6.00
18
0110706207
ref: 18
BOLT
€ 2.00
19
0916006027
ref: 19
WASHER (6.5X20X1.2)
€ 2.00
20
0932009018
ref: 20
CUSHION
€ 2.00
21
0918006030
ref: 21
SPACER (6.8X10X10)
€ 2.00
22
3595014A00
ref: 22
REFLECTOR,REFLEX FR
€ 15.00
23
0832121057
ref: 23
LOCK WASHER
€ 2.00
