CRANKCASE

DR500S 1987 (H)

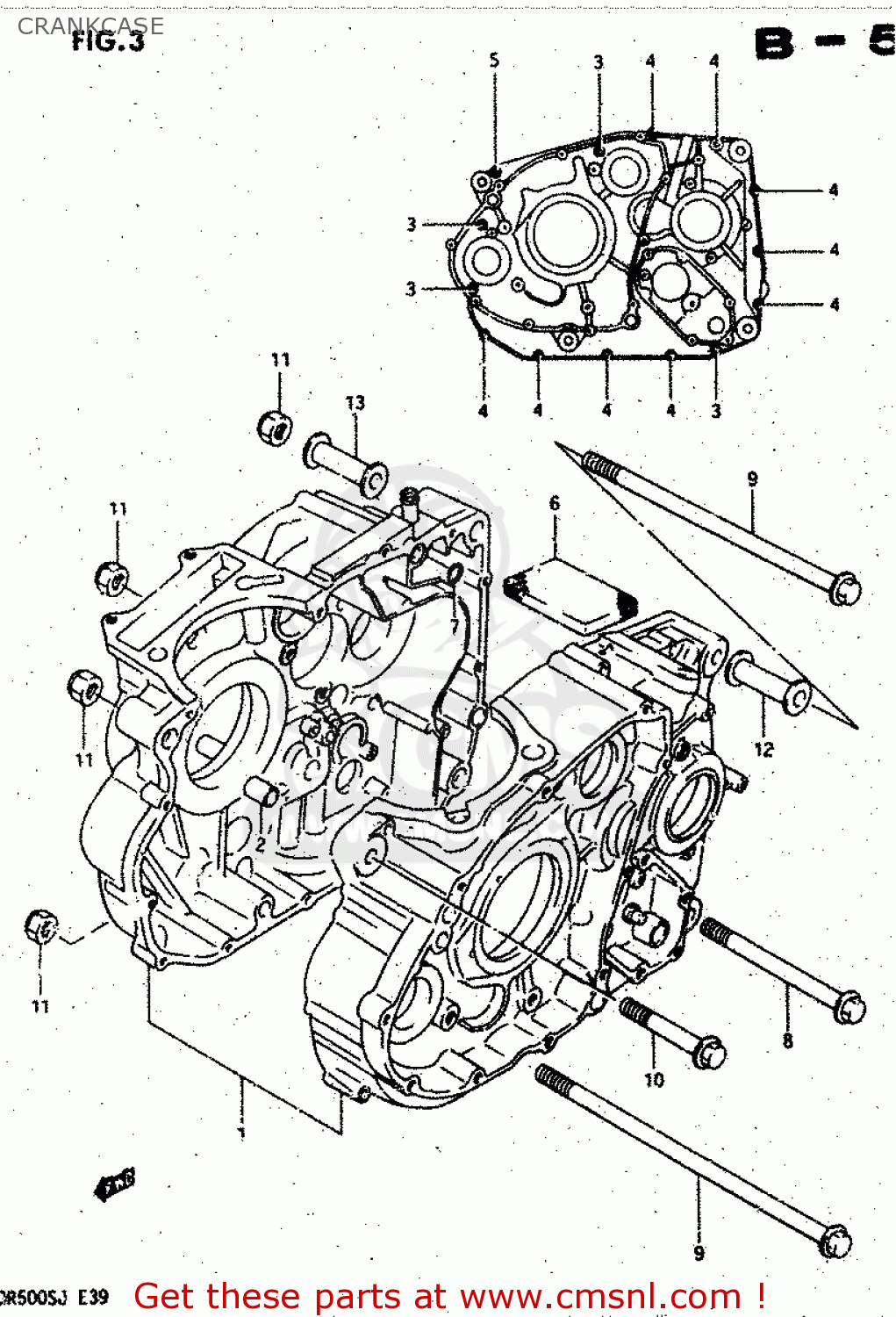

Crankcase diagram DR500S 1987 (H)

CRANKCASE DR500S 1987 (H)

CRANKCASE DR500S 1987 (H)

prices are in EUR

ref

part #

description

quantity

1-1

1130014A01
ref: 1-1
MODEL G/H TO 11300-1

CRANKCASE SET

€ 721.50

1-2

1130014A02
ref: 1-2
MODEL J

CRANKCASE SET

€ 721.50

2

0920613001
ref: 2

PIN

€ 2.50

3

0154706605
ref: 3

BOLT (6X60)

€ 3.50

4

0154706404
ref: 4

BOLT 6X40

€ 3.00

5

0154706304
ref: 5

BOLT 6X30

€ 2.50

6

1132814A01
ref: 6

HOSE

€ 4.50

7

0928009004
ref: 7

O-RING

€ 4.00

8

0910310141
ref: 8
FROM 09103-10062

BOLT(10X125)

€ 6.00

9

0910310093
ref: 9

BOLT

€ 9.50

10

0910310098
ref: 10

BOLT

€ 7.00

11

0915910047
ref: 11

NUT

€ 7.50

12

1161014A00
ref: 12

SPACER,ENG MTG(L:55)

€ 9.00

13

1161014A10
ref: 13

SPACER,ENG MTG,R(L:60)

€ 8.50
