FRAME COVER (DR500SG/SH)
DR500S 1987 (H)

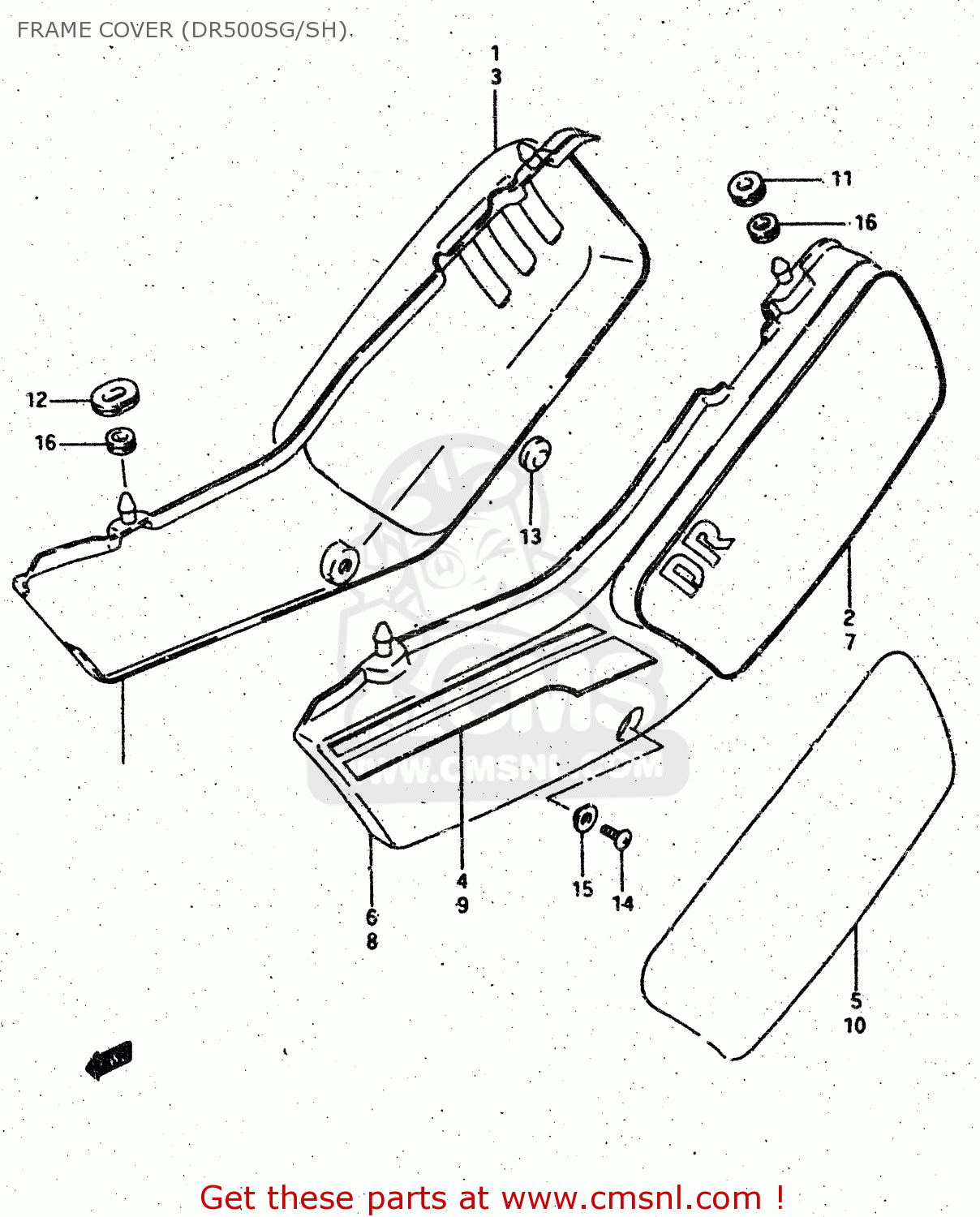

Frame cover (dr500sg/sh) diagram DR500S 1987 (H)
FRAME COVER (DR500SG/SH) DR500S 1987 (H)
×
prices are in EUR
ref
part #
description
quantity
1-1
4711114A0010V
ref: 1-1
MODEL G
COVER,FRAME RH
€ 69.00
1-2
4711114A0014C
ref: 1-2
MODEL G
COVER,FRAME,RIGHT
€ 69.00
1-3
4711114A0019F
ref: 1-3
MODEL G
COVER, FRAME RH (BLUE)
€ 69.00
1-4
4711114A0021C
ref: 1-4
MODEL G
COVER, FRAME RH (BLACK)
€ 69.00
2-1
6813014A0099V
ref: 2-1
MODEL G, FOR 10V
TAPE SET, SIDE COVER RH
€ 16.50
2-2
6813014A0073K
ref: 2-2
MODEL G, FOR 14C,19F
TAPE SET, SIDE COVER RH
€ 23.00
2-3
6813014A0072H
ref: 2-3
MODEL G, FOR 21C
TAPE SET, SIDE COVER RH
€ 23.00
3-1
4711015A1014L
ref: 3-1
MODEL H
COVER, SIDE RH (WHITE)
€ 77.50
3-2
4711015A1021C
ref: 3-2
MODEL H
COVER, SIDE RH (BLACK)
€ 69.00
3-3
4711015A1034S
ref: 3-3
MODEL H
COVER, SIDE RH (BLUE)
€ 69.00
4-1
6813014A507VN
ref: 4-1
MODEL H, FOR 14L
TAPE SET, SIDE COVER RH
€ 0.00
4-2
6813014A509DK
ref: 4-2
MODEL H, FOR 21C
TAPE SET, SIDE COVER RH
€ 0.00
4-3
6813014A509JT
ref: 4-3
MODEL H, FOR 34S
TAPE SET, SIDE COVER RH
€ 0.00
5-1
6813214A10765
ref: 5-1
MODEL H, FOR 14L
EMBLEM,FRAME COVER NUMBER
€ 21.50
5-2
6813214A1008L
ref: 5-2
MODEL H, FOR 21C
TAPE, REAR RH (BLUE)
€ 19.00
5-3
6813214A10064
ref: 5-3
MODEL H, FOR 34S
TAPE, REAR RH (WHITE)
€ 19.00
6-1
4721114A0010V
ref: 6-1
MODEL G
COVER, FRAME LH (WHITE)
€ 59.00
6-2
4721114A0014C
ref: 6-2
MODEL G
COVER,FRAME,LEFT
€ 59.00
6-3
4721114A0019F
ref: 6-3
MODEL G
COVER, FRAME LH (BLUE)
€ 59.00
6-4
4721114A0021C
ref: 6-4
MODEL G
COVER, FRAME LH (BLACK)
€ 59.00
7-1
6814014A0099V
ref: 7-1
MODEL G, FOR 10V
TAPE SET, SIDE COVER LH
€ 15.00
7-2
6814014A0073K
ref: 7-2
MODEL G, FOR 14C,19F
TAPE SET, SIDE COVER LH
€ 23.00
7-3
6814014A0072H
ref: 7-3
MODEL G, FOR 21C
TAPE SET, SIDE COVER LH
€ 23.00
8-1
4721015A1014L
ref: 8-1
MODEL H
COVER, SIDE LH (WHITE)
€ 77.50
8-2
4721015A1021C
ref: 8-2
MODEL H
COVER, SIDE LH (BLACK)
€ 59.00
8-3
4721015A1034S
ref: 8-3
MODEL H
COVER, SIDE LH (BLUE)
€ 59.00
9-1
6814014A507VN
ref: 9-1
MODEL H, FOR 14L
TAPE SET, SIDE COVER LH
€ 13.50
9-2
6814014A509DK
ref: 9-2
MODEL H, FOR 21C
TAPE SET, SIDE COVER LH
€ 0.00
9-3
6814014A509JT
ref: 9-3
MODEL H, FOR 34S
TAPE SET, SIDE COVER LH
€ 0.00
10-3
6814214A10765
ref: 10-3
MODEL H, FOR 14L
EMBLEM,FRAME COVER NUMBER
€ 27.00
10-2
6814214A1008L
ref: 10-2
MODEL H, FOR 21C
TAPE, REAR LH (BLUE)
€ 19.00
10-3
6814214A10064
ref: 10-3
MODEL H, FOR 34S
TAPE, REAR LH (WHITE)
€ 19.00
11
0932008018
ref: 11
CUSHION
€ 4.00
12
0932908003
ref: 12
CUSHION
€ 3.50
13
0932110013
ref: 13
CUSHION
€ 5.00
14
0214206125
ref: 14
SCREW 6X12
€ 2.00
15
0916906041
ref: 15
WASHER
€ 2.00
16
4716114A00
ref: 16
CUSHION,SIDE COVER BOSS
€ 2.50
