RIGHT HANDLE SWITCH (DR500RH)

DR500S 1987 (H)

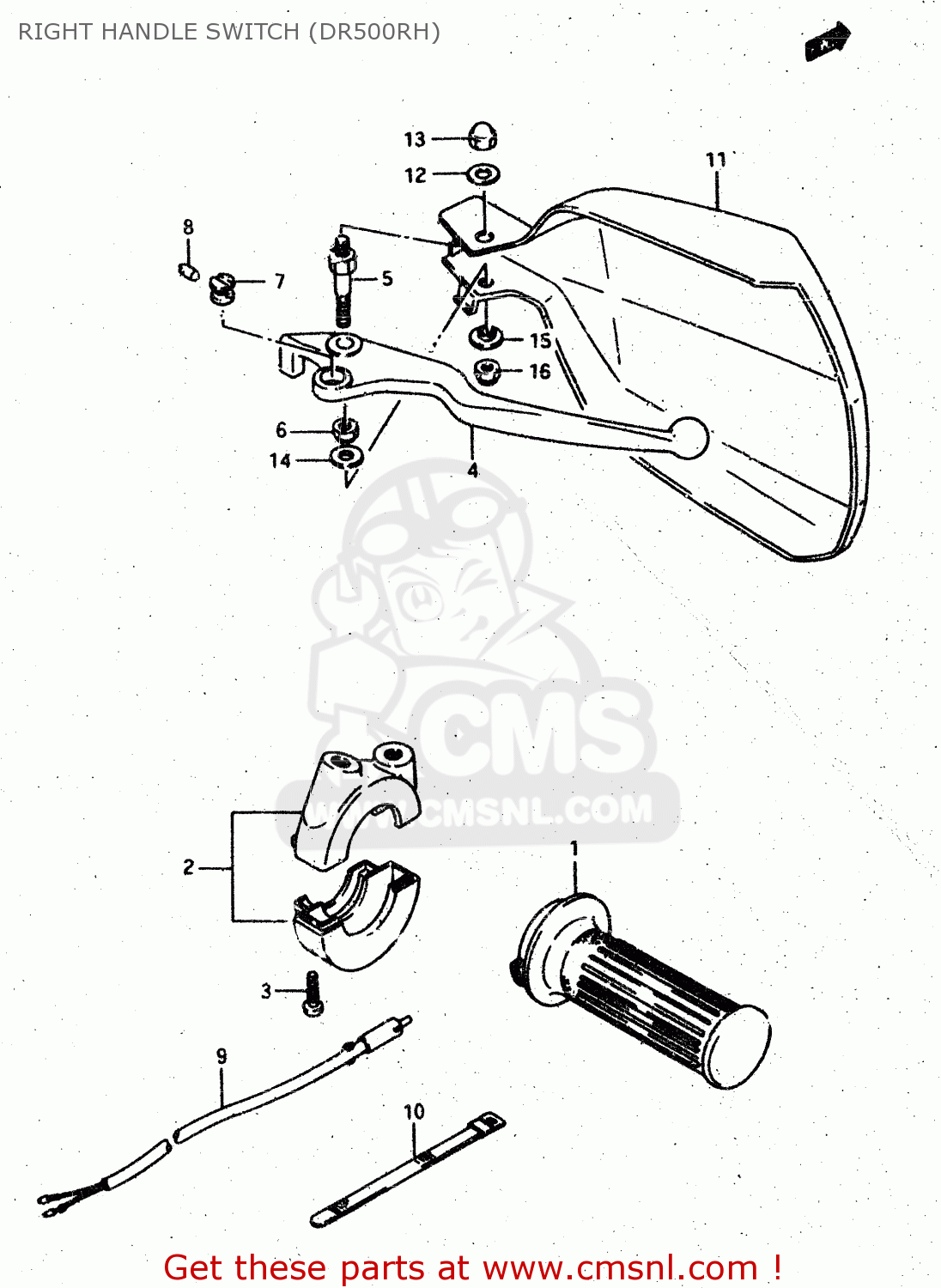

Right handle switch (dr500rh) diagram DR500S 1987 (H)

RIGHT HANDLE SWITCH (DR500RH) DR500S 1987 (H)

RIGHT HANDLE SWITCH (DR500RH) DR500S 1987 (H)

prices are in EUR

ref

part #

description

quantity

1

5711037200
ref: 1

GRIP,THROTTLE

€ 20.50

2

5710037230
ref: 2

CASE ASSY,THROTTLE

€ 47.50

3

0211205208
ref: 3

SCREW 5X20

€ 3.00

4

5742113A10
ref: 4

LEVER,BRAKE

€ 19.50

5

5743115A00
ref: 5

BOLT,BRAKE LEVER PIVOT

€ 10.00

6

0831921065
ref: 6

NUT

€ 2.50

7

5744313A00
ref: 7

ADJUSTER

€ 8.00

8

5744413A00
ref: 8

ROD,PUSH

€ 6.50

9

5746013001
ref: 9

SWITCH ASSY,STOP

€ 18.00

10

0940712402
ref: 10

CLAMP(L:120)

€ 3.00

11

5734115A0114L
ref: 11

GUARD, KNUCKLE, RH (WHITE)

€ 34.00

12

0916006102
ref: 12

WASHER (6.5X20X1.6)

€ 2.00

13

0831311065
ref: 13

NUT 6MM

€ 2.00

14

0916006019
ref: 14

WASHER(6.5X16X1.2)

€ 1.50

15

0916906040
ref: 15

WASHER

€ 2.00

16

0831921068
ref: 16

NUT 6MM

€ 2.00
