CARBURETOR

DR650RS 1990 (L) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

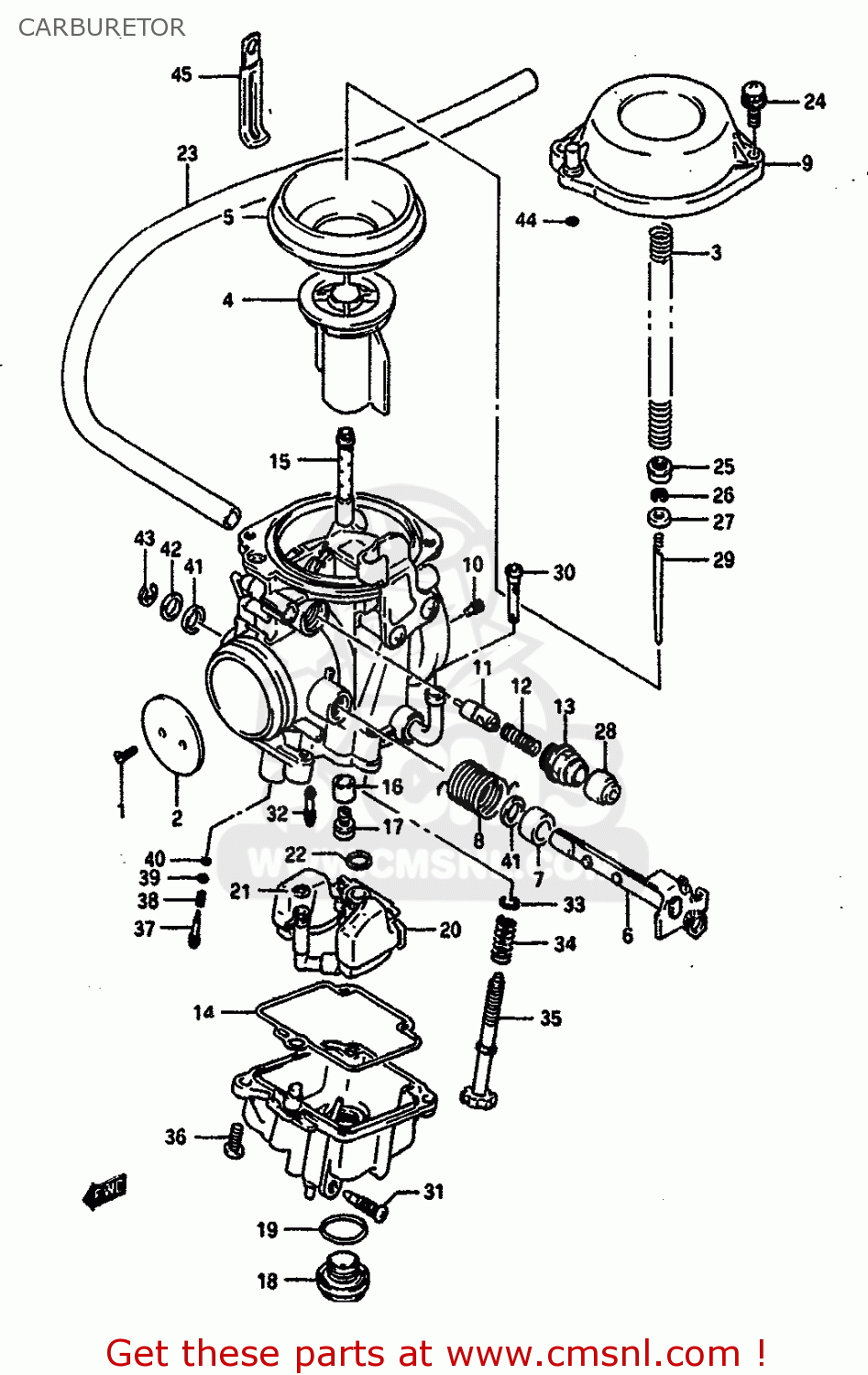

Carburetor diagram DR650RS 1990 (L) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

CARBURETOR DR650RS 1990 (L) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53
CARBURETOR DR650RS 1990 (L) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53
CARBURETOR DR650RS 1990 (L) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
0
1320012D50
ref: 0
CARBURETOR ASSY
€ 429.00
0
1320012D00
ref: 0
E16,E17
CARBURETOR ASSY
€ 429.00
0
1320012D20
ref: 0
E18
CARBURETOR ASSY
€ 0.00
0
1320012D10
ref: 0
E22,MODEL M E15
CARBURETOR ASSY
€ 429.00
0
1320012D30
ref: 0
E24,E39
CARBURETOR ASSY
€ 0.00
0
1320012D40
ref: 0
DR650RSUL E22
CARBURETOR ASSY
€ 0.00
1
1360407D00
ref: 1
SCREW
€ 3.50
2
1355112D00
ref: 2
VALVE,THROTTLE
€ 21.00
3
1341712D00
ref: 3
SPRING
1341712D00
€ 6.50
4
1350112D00
ref: 4
VALVE,PISTON
1350112D00
€ 71.50
5
1350707D00
ref: 5
DIAPHRAGM
1350707D00
€ 24.50
6
1355012D00
ref: 6
SHAFT ASSEMBLY,THROTTLE
€ 31.00
7
1355705A20
ref: 7
RING
€ 3.00
8
1357312D00
ref: 8
SPRING
€ 6.00
9-1
1350212D00
ref: 9-1
COVER,DIAPHRAGM
1350212D00
€ 38.50
9-2
1350212D10
ref: 9-2
E18,DR650RSUL E22
COVER,DIAPHRAGM
1350212D10
€ 29.00
10
0949326004
ref: 10
JET,AIR(1.3)
0949326004
€ 14.50
11
1341112D00
ref: 11
PLUNGER
1341112D00
€ 18.00
12
1341722010
ref: 12
SPRING
1341722010
€ 3.00
13
1341843410
ref: 13
HOLDER,GUIDE
1341843410
€ 6.50
14
1325844B00
ref: 14
GASKET,FLOAT CHAMBER (NAS)
1325844B00
€ 8.50
15-1
0949400678
ref: 15-1
JET,NEEDLE
0949400678
€ 33.00
15-2
0949400706
ref: 15-2
E18
JET,NEEDLE (X-9)
€ 0.00
16
1333107D00
ref: 16
RING
1333107D00
€ 4.50
17-1
0949130004
ref: 17-1
JET
€ 14.00
17-2
0949130016
ref: 17-2
E18
JET,MAIN(150)
0949130016
€ 14.00
18
1324732210
ref: 18
SCREW,GUIDE
1324732210
€ 13.00
19
1324941310
ref: 19
O RING,DRAIN PLUG
1324941310
€ 5.00
20
1325044C00
ref: 20
FLOAT/NEEDLE VALVE ASSEMBLY
€ 124.50
21
1337446710
ref: 21
O RING
1337446710
€ 4.50
22
1337444080
ref: 22
O-RING,NEEDLE VALVE
1337444080
€ 6.00
23
1368312D00
ref: 23
HOSE (6.5X10.5X475)
€ 26.00
24
1360234390
ref: 24
SCREW
1360234390
€ 2.50
25
1333112D00
ref: 25
RING
1333112D00
€ 4.50
26
1339431210
ref: 26
CLIP,NEEDLE
1339431210
€ 3.50
27
1338707D00
ref: 27
RING
1338707D00
€ 4.50
28
1368104010
ref: 28
CAP
1368104010
€ 3.00
29-1
1338312D00
ref: 29-1
NEEDLE JET
1338312D00
€ 15.00
29-2
1338312D10
ref: 29-2
DR650RSUL E22
NEEDLE,JET (6I04-3)
1338312D10
€ 15.50
29-3
1338312D20
ref: 29-3
E18
NEEDLE,JET
1338312D20
€ 15.00
30
1323612C00
ref: 30
FILTER
1323612C00
€ 5.00
31
1324702340
ref: 31
PLUG,DRAIN
1324702340
€ 5.50
32-1
0949247013
ref: 32-1
JET,PILOT(47.5)
0949247013
€ 12.50
32-2
0949245016
ref: 32-2
E18
JET,PILOT(45)
0949245016
€ 12.00
33
1342738300
ref: 33
WASHER
1342738300
€ 1.50
34
1337560A00
ref: 34
SPRING
1337560A00
€ 4.00
35
1326728A00
ref: 35
SCREW
€ 22.50
36
1360205129
ref: 36
SCREW
€ 2.50
37-1
1327947070
ref: 37-1
SCREW,PILOT
1327947070
€ 11.50
37-2
1327947070
ref: 37-2
E22,E24,E39,MODEL M
SCREW,PILOT
1327947070
€ 11.50
37-3
1327947070
ref: 37-3
DR650RSUL E22
SCREW,PILOT
1327947070
€ 11.50
38
1326847070
ref: 38
SPRING
1326847070
€ 5.00
39
1329129900
ref: 39
WASHER
1329129900
€ 2.00
40
1329529900
ref: 40
O RING,PILOT AIR SCREW
1329529900
€ 4.00
41
1355644B00
ref: 41
SEAL
1355644B00
€ 3.50
42
1355747070
ref: 42
GASKET,THROTTLE SHAFT (NAS)
1355747070
€ 4.00
43
1361744080
ref: 43
E RING
1361744080
€ 3.50
44
1327802340
ref: 44
E18
O RING
1327802340
€ 1.50
45
0940406402
ref: 45
CLAMP
€ 2.50
