FUEL TANK (MODEL M)

DR650RS 1990 (L) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

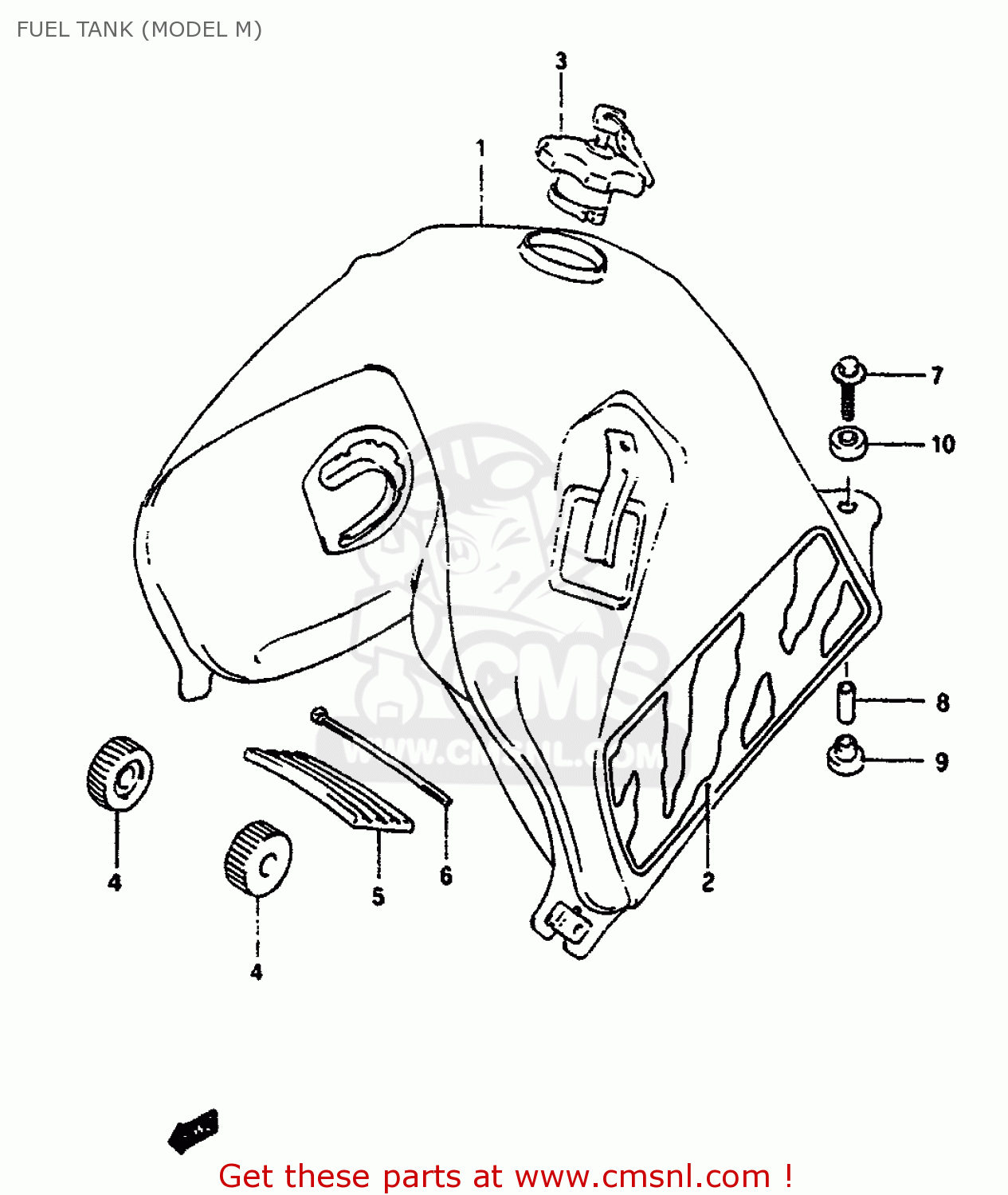

Fuel tank (model m) diagram DR650RS 1990 (L) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

prices are in EUR

ref

part #

description

quantity

1-1

4410012D400JW
ref: 1-1

TANK ASSY,FUEL (WHITE)

€ 601.00

1-2

4410012D4022P
ref: 1-2

TANK ASSY,FUEL (RED)

€ 601.00

1-3

4410012D4012F
ref: 1-3

TANK ASSY,FUEL (BLUE)

€ 601.00

1-4

4410012D500JW
ref: 1-4
E22

TANK ASSY,FUEL (WHITE)

€ 601.00

1-5

4410012D5022P
ref: 1-5
E22

TANK ASSY,FUEL (RED)

€ 601.00

1-6

4410012D5012F
ref: 1-6
E22

TANK ASSY,FUEL (BLUE)

€ 601.00

2-1

6811012D201BC
ref: 2-1
FOR 0JW

TAPE SET,FUEL TANK

€ 0.00

2-2

6811012D201BB
ref: 2-2
FOR 22P

TAPE SET,FUEL TANK

€ 61.00

2-3

6811012D201BA
ref: 2-3
FOR 12F

TAPE SET,FUEL TANK

€ 61.00

4420003810
ref: 3

CAP SET,FUEL TANK

€ 90.50

4451112D00
ref: 4

CUSHION,FUEL TANK FR

€ 5.50

4454112D00
ref: 5

CUSHION

€ 4.00

0940720401
ref: 6

CLAMP

€ 4.50

0911606078
ref: 7

BOLT

€ 2.50

0918006072
ref: 8

SPACER

€ 2.00

0932010020
ref: 9

CUSHION

€ 4.00

0932014013
ref: 10

CUSHION

€ 3.00
