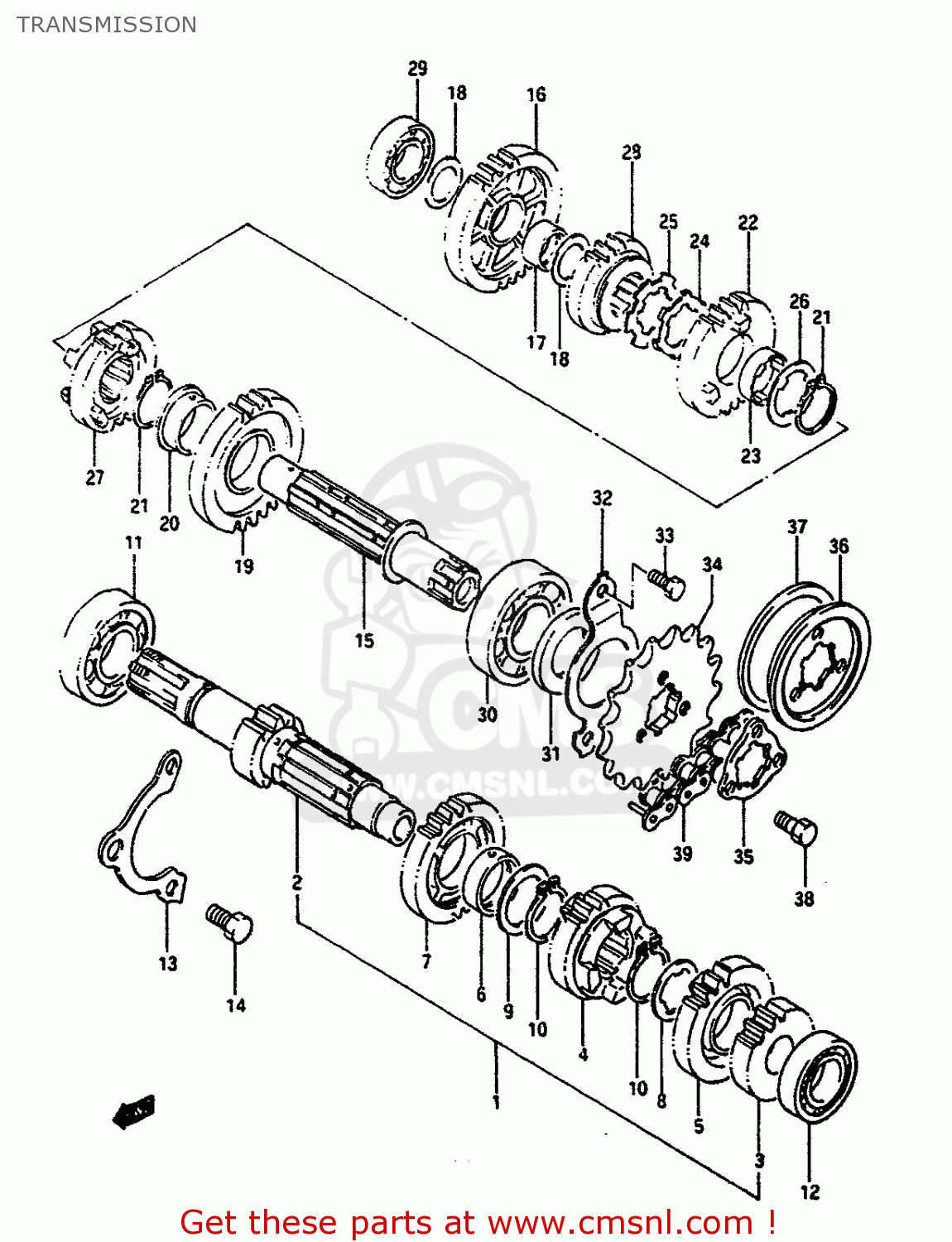

TRANSMISSION

ref

part #

description

quantity

1

2412012D00
ref: 1

SHAFT,COUNTER

€ 236.50

2

2412114A00
ref: 2

SHAFT,COUNTER

€ 185.50

3

2422114A00
ref: 3

GEAR,SECOND DRIVE

€ 66.50

4

2423112D00
ref: 4

GEAR,THIRD DRIVE

€ 146.50

5

2424114A00
ref: 5

GEAR,FOURTH DRIVE

€ 69.00

6

0930025023
ref: 6

BUSHING 25X29X10

€ 9.50

7

2425114A00
ref: 7

GEAR,5TH DRIVE

€ 105.00

8

0916725012
ref: 8

WASHER,LOCK

€ 3.50

9

0821125341
ref: 9

WASHER

€ 3.50

10

0938025003
ref: 10

RING,SNAP

€ 3.00

11

0926222014
ref: 11

BEARING

€ 59.50

12

0926217018
ref: 12

BEARING

€ 25.00

13

2474114A00
ref: 13

RETAINER,CNTR SHAFT BEARING

€ 5.00

14

0110708166
ref: 14

BOLT, 8X1.25X1

€ 2.00

15

2413114A00
ref: 15

SHAFT,DRIVE

€ 121.00

16

2431114A01
ref: 16

GEAR,1ST DRIVEN

€ 67.50

17

0930020032
ref: 17

BUSH(20X24X13)

€ 10.00

18

0821120301
ref: 18

WASHER

€ 3.00

19

2432114A00
ref: 19

GEAR,2ND DRIVEN

€ 118.00

20

0930125002
ref: 20

BUSH

€ 10.50

21

0938025003
ref: 21

RING,SNAP

€ 3.00

22

2433114A03
ref: 22

GEAR,THIRD DRIVEN

€ 329.50

23

2433224500
ref: 23

BUSHING

€ 9.50

24

0916925001
ref: 24

WASHER

€ 2.00

25

0916725013
ref: 25

WASHER,LOCK

€ 2.50

26

0916725016
ref: 26

WASHER,LOCK

€ 3.00

27

2434114A01
ref: 27

GEAR,FOURTH DRIVEN

€ 67.00

28

2435114A00
ref: 28

GEAR,FIFTH DRIVEN

€ 68.50

29

0926220059
ref: 29

BEARING(20X42X12)

€ 14.50

30

0926225066
ref: 30

BEARING(25X62X17)

€ 44.50

31

0928325076
ref: 31

SEAL,OIL(25X45X5)

€ 9.00

32-1

2475114A00
ref: 32-1
MODEL L

RETAINER,DRIVESHAFT O

€ 7.50

32-2

2475114A01
ref: 32-2
MODEL M

RETAINER,DRIVE SHAFT OIL SEAL

€ 7.50

33

0110706126
ref: 33

BOLT

€ 2.00

34

2751114A01
ref: 34

SPROCKET,ENGINE(NT:16)

€ 30.00

35

2751212D00
ref: 35
E15,E17,E24

PLATE,ENGINE SPROCKET

€ 9.50

36

2751212D10
ref: 36

PLATE,ENGINE SPROCKET

€ 9.50

37

2751714A00
ref: 37

DAMPER,ENGIN SPROCKET

€ 14.00

38

0911106062
ref: 38

BOLT

€ 6.00

39

2760013A60114
ref: 39

CHAIN ASSEMBLY,DRIVE

€ 112.00
