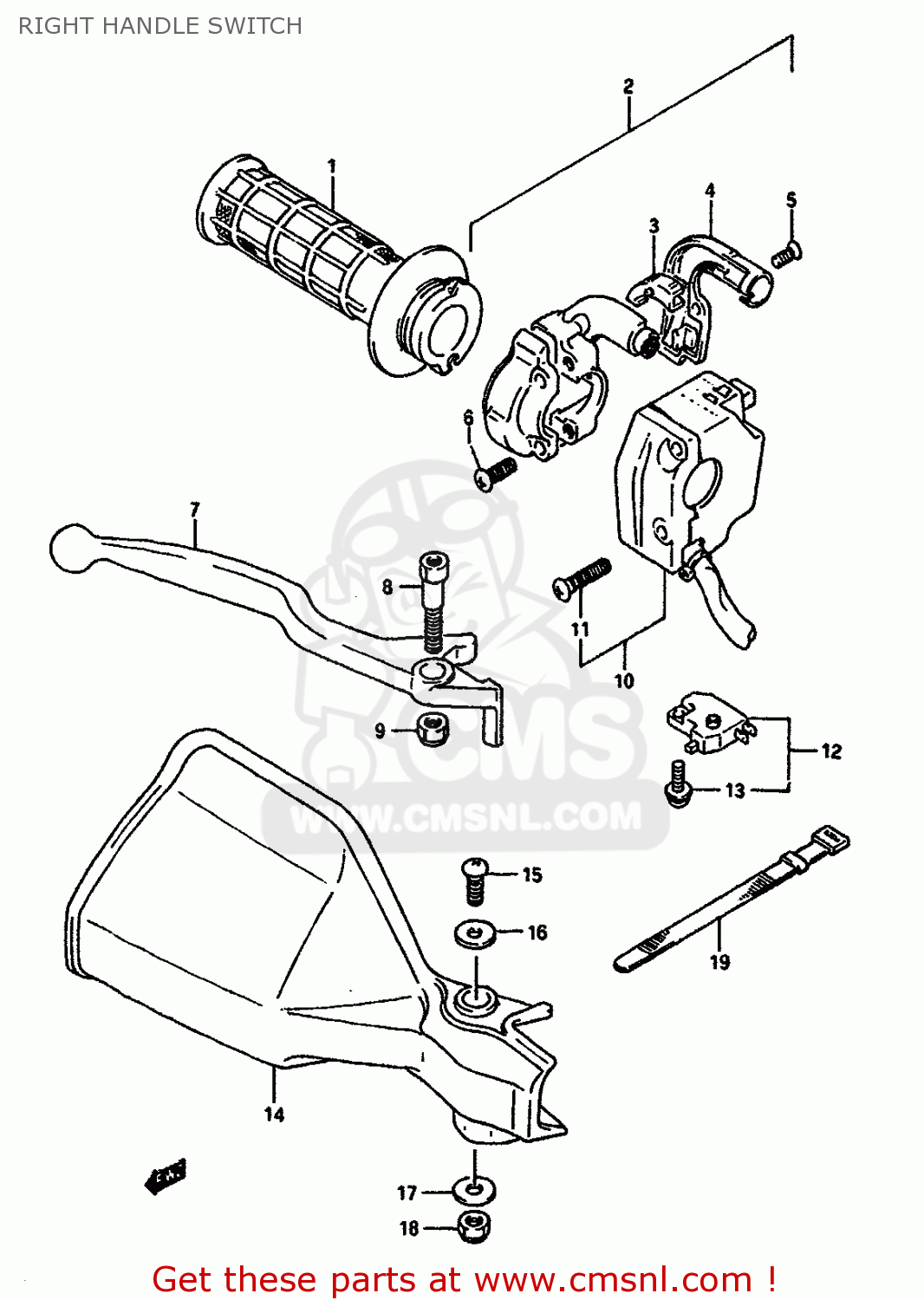

RIGHT HANDLE SWITCH

ref

part #

description

quantity

1

5711012D00
ref: 1

GRIP,THROTTLE

€ 26.50

2

5710028B00
ref: 2

CASE ASSEMBLY,THROTTLE

€ 34.00

3

5712213600
ref: 3

GUIDE PIECE,THROTTLE

€ 7.50

4

5712913601
ref: 4

COVER,THROTTLE CASE

€ 7.00

5

0213204105
ref: 5

SCREW 4X10

€ 2.50

6

0211205164
ref: 6

SCREW

€ 2.00

7

5742113001
ref: 7

LEVER,BRAKE

€ 18.00

8

5743105D00
ref: 8

BOLT,BRAKE LEVER PIVOT

€ 9.00

9

0831921068
ref: 9

NUT 6MM

€ 2.00

10

3720012D01
ref: 10

SWITCH ASSY,HANDLE RH

€ 73.00

11

0912505066
ref: 11

SCREW(5X25)

€ 2.00

12

5746017C00
ref: 12

SWITCH ASSEMBLY,STOP

€ 32.50

13

5746517C00
ref: 13

SCREW

€ 1.50

14-1

5734105D0030H
ref: 14-1
MODEL L,FOR 0JW

COVER,KNUCKLE,RIGHT

€ 18.00

14-2

5734105D0014C
ref: 14-2
MODEL L,FOR 28V

COVER, KNUCKLE RH (RED)

€ 30.00

14-3

5734105D000NF
ref: 14-3
MODEL L,FOR 0NF

COVER,KNUCKLE,R

€ 28.00

14-4

5734105D000MA
ref: 14-4
MODEL M,FOR 0JW

COVER,KNUCKLE,

€ 18.00

14-5

5734105D001AY
ref: 14-5
MODEL M,FOR 12F

COVER,KNUCKLE RH (BLUE)

€ 27.00

14-6

5734105D0028V
ref: 14-6
MODEL M,FOR 22P

COVER,KNUCKLE,R

€ 30.00

15

0912505042
ref: 15

SCREW(5X10)

€ 2.50

16

0916005017
ref: 16

WASHER (5.5X16X1.2)

€ 2.50

17

0916006042
ref: 17

WASHER (6.5X17X1.6)

€ 2.00

18

0831921068
ref: 18

NUT 6MM

€ 2.00

19

0940712402
ref: 19

CLAMP(L:120)

€ 3.00
